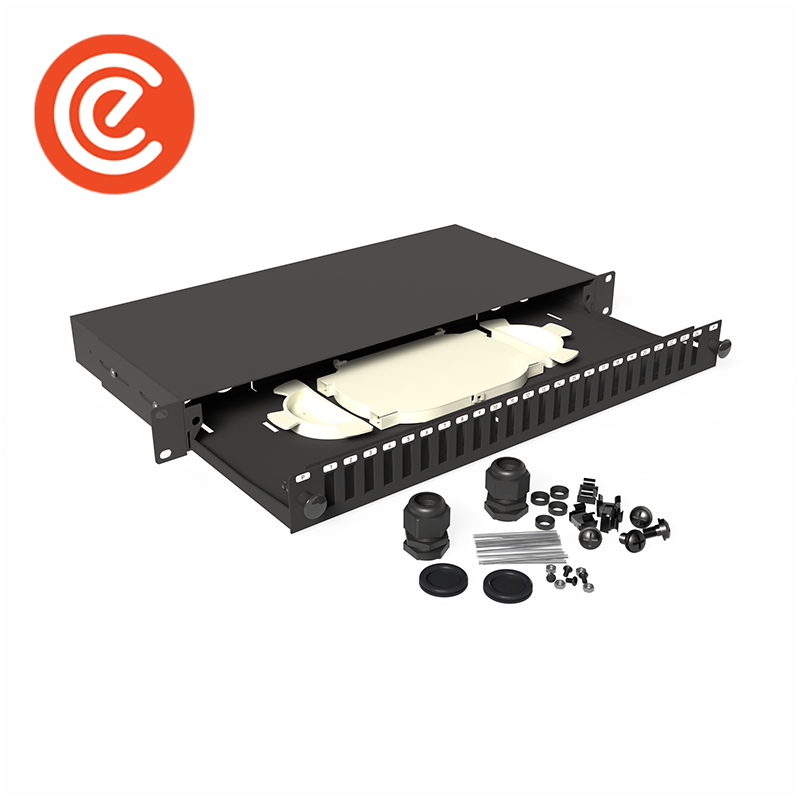

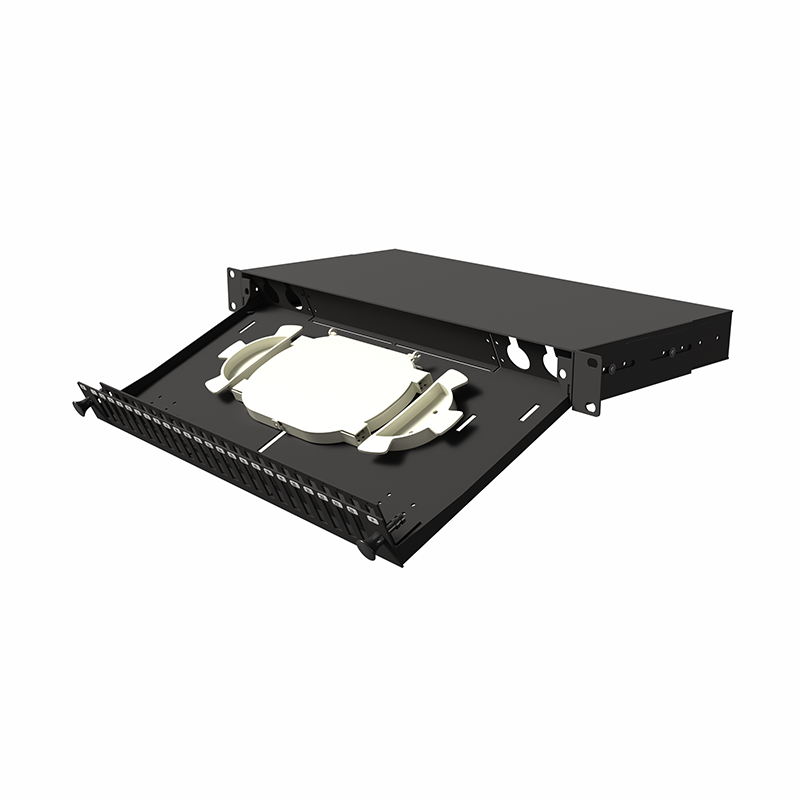

Briticom™ 1U Easy Sliding Standard Patch Panel uses various technologies for easy access and organization: these include pivots, sliding on rail and easy sliding. Many of our 1U Easy Sliding Standard Patch Panels are also modular, to further aid the user. This patch panel also comes with a changeable splice tray inside. We have designed and manufactures a wide range of unique and robust patch panels ranging from 1U to 4U. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn
- IEC Standard 60529
- Easy slide in and out
- 19’’ 1U
- Recessed adaptors for improved fibre management
- No exposed screws
- Individually labelled ports
- 4 cables entries
- Built-in strength member tie positions
- High-quality finish
- Data and server racks
- 19’’ installations
- FTTx
- Telecommunications
| Adapter Types | SC SX , SC DX, ST/FC, E2000, LC DX, LC QD |
| U Size | 1U (44.4mm) |
| Width | 482mm |
| Depth | 205mm |
| Net Weight (Unloaded) | 2.4kgs |
| Packaged Weight (Unloaded) | 3kgs |
| Cable Entries | 2x 20mm, 2x 25mm |
| Mounting Adjustment Range | 50mm |
| Material | 1.2 mm cold-rolled steel |
| Material Coating | Powder |
| Colour | RAL 9004 |
