Briticom® Basic Protection LSA 10-Pair Module Overvoltage Protection for Protection 3 Pole Gas Tube arrestor GDT 10 pair Magazine For High band.
Already bought this product from us? Share your experience on LinkedIn
- Designed for High Band Modules, as overvoltage
protection functions. - Could installed 3 pole overvoltage arrester (GDT).
- Material of Plastic Parts: PBT/ABS/PC, Fire-Resistant
- Color: Grey base with grey body.
- With Yellow Mark.
- Specifications: 10 Pairs, For High Band Module
- Flame Retardance: UL94-V0
- Pin: Silver-plated Phosphor Bronze
- Markings: Dust Cover Or Lighting Mark Cover

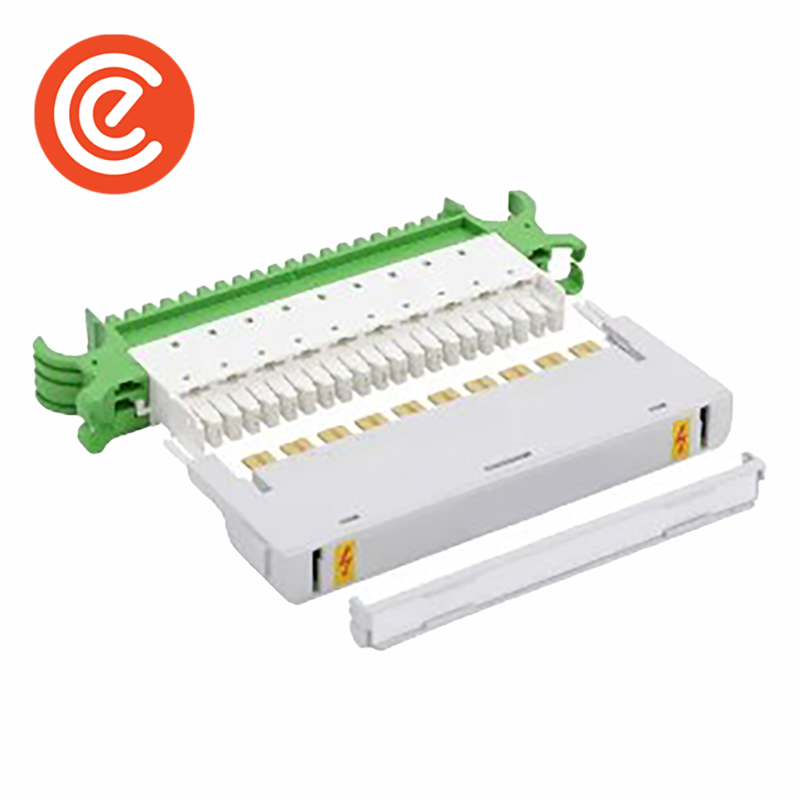

Basic Protection LSA 10-Pair Module
- Telecommunications
- LAN
| Plastic Material | ABS & PBT (UL94V-0) |
| Contact Material | Phosphor Bronze |
| Surface Plating | Silver (0.5um – 5um) |
| Earth Bar | Phosphor Bronze, Surface Plating Nickel |
| Storage Temperature | 40°C – 70°C |
| Operating Temperature | 10°C – 60°C |
| Relative Humidity | 95%, non-conditional |
| Insulation Resistance | 1000Mohms minimum |
| Contact Resistance | 5Mohms maximum |
| Dielectricity Intensity | 1200v DC 60s cant spark over & havent fly arc |
