Briticom® Cat5E STP Tool-Free KSJ modules are available in a choice of 180° shuttered and non-shuttered. They are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 360° screening
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- High-temperature thermoplastic housing
- Compact design, 8 positions and 8 conductors
- Low attenuation loss, high return loss
- Accepts 22-26 AWG solid wires with an insulation diameter of 0.4-0.6mm
- 180° module
- POTS, T1&Tq fractional
- ASDN basic & primary rate
- 4/16 Mbps Token Ring (IEEE802.5)
- 10 BASE-T (IEEE802.3)
- 100 Mbps TP-PMD
- 52/155 Mbps ATM (ATM Forum)
- 100 BASE-T4 (Fast Ethernet)
- 100 VG-Any LAN (IEEE802.12)
- 100 BASE-T (Fast Ethernet)

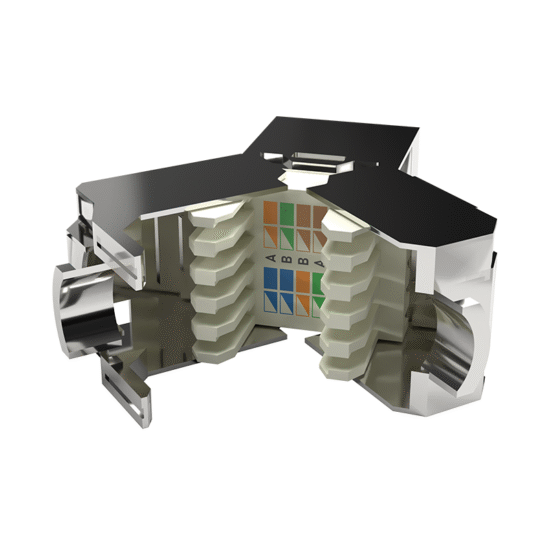

Cat5E STP Tool-Free KSJ
| Insertion Life | 750 cycles minimum |
| IDC Life | 200 times (22-26 AWG solid wire) minimum |
| Contact Material | Phosphor Bronze, Gold Plating (0.5mm) |
| IDC Material | Phosphor Bronze stamp pin (0.35mm) |
| Housing Material | PC UL94V-0 |
| Conformance | EIA/TIA 568A/B wiring standards, ISO/IEC 11801:2002, EIA/TIA 568B.2.1:2002, RoHS, ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017
|
