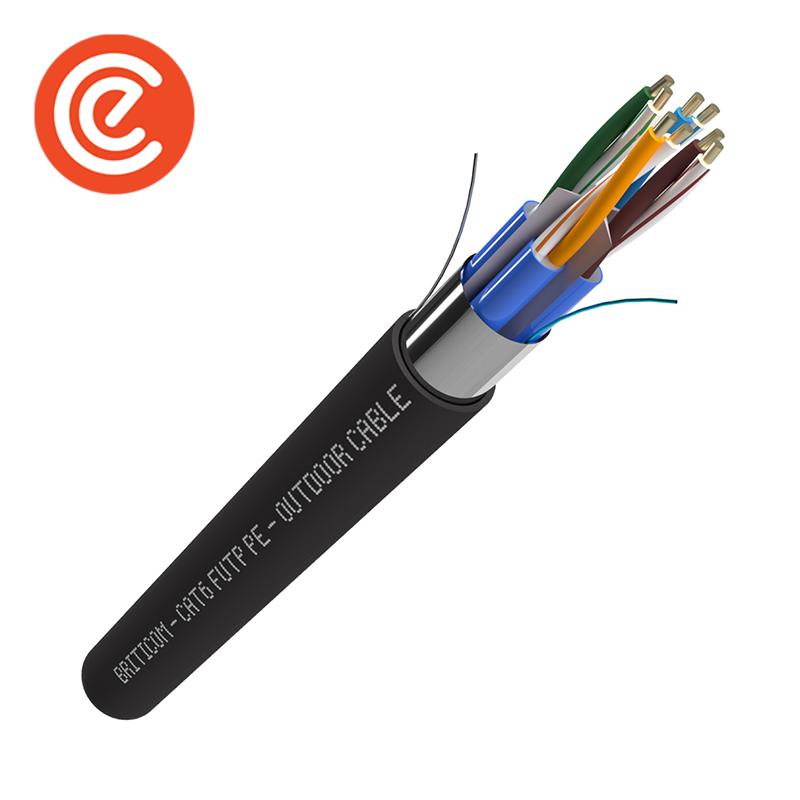

Briticom® Category 6 Outdoor screened FUTP PE Solid LAN Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568.0-D Standard of 2017 and T568.2-D Standard.
This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified
Already bought this product from us? Share your experience on LinkedIn
- ANSI/TIA-568.0-D, ANSI/TIA/EIA-568-B.2.10, IEC 60228 and IEC 60332, T568.2-D Standards
- 25-Year warranty
- 250 MHz with over 2.5Gbps
- Shielded Twisted Pair
- HDPE, PVC or PE jacket
- Available in different lengths and packaging types
- 10BASE-T (IEEE 802.3)
- 4/16 Mbps TOKEN RING (IEEE 802.5)
- 100BASE-VG-AnyLAN
- 100Mbps TP-PMD (ANSI X3T9.5)
- 100BASE-T (IEEE 802.3)
- 55/155 Mbps ATM
- 1000BASE-T (Gigabit Ethernet)

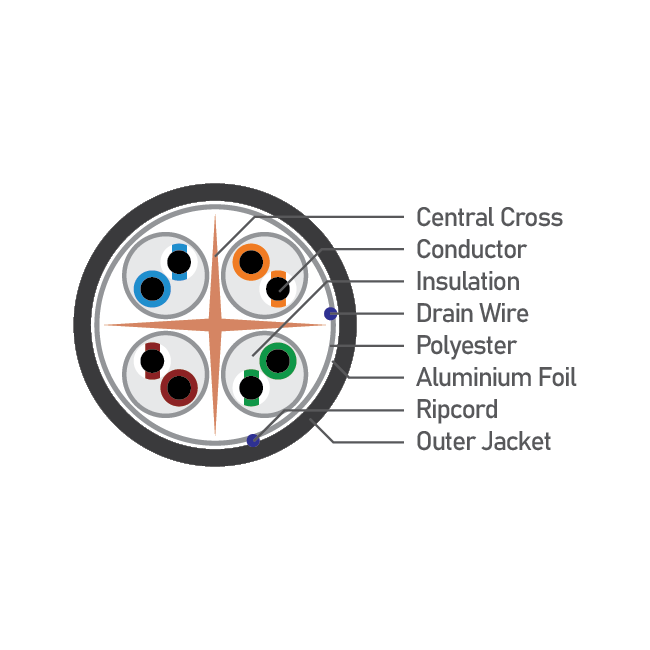

Cat 6 – Outdoor F/UTP PE Solid LAN Cable
|
Conductor Material
|
solid bare copper | |
| Conductor Diameter | 0.57±0.01mm /23AWG | |
| Insulation Material | HDPE | |
| Insulation Diameter | 1.02±0.02mm | |
|
Polyester belt
|
24*0.025mm | |
|
Al foil
|
26*0.065mm Overlap rate ≥20% | |
|
Drain wire
|
1*0.4 tinned copper | |
|
Rip cord
|
optional | |
|
Cross skeleton
|
5.05*0.65mm | |
|
Jacket Material
|
LDPE | |
|
Jacket Diameter
|
7.5±0.3mm | |
| Jacket Thickness | ≥0.5mm | |
