Briticom® Cat6a FUTP Patch Cord is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified
Already bought this product from us? Share your experience on LinkedIn
- 500 MHz with over 10Gbps
- 25-year warranty
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Foiled/Unscreened
- LSZH or PE jacket
- Available in different colours & lengths
- Durable for 750 insertion cycles
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Cable television, CCTV

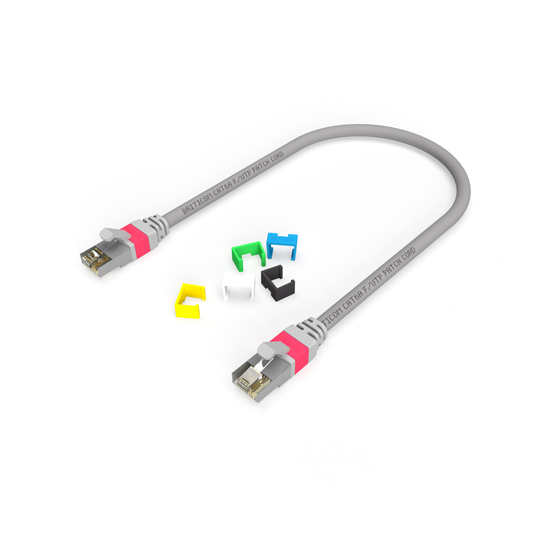

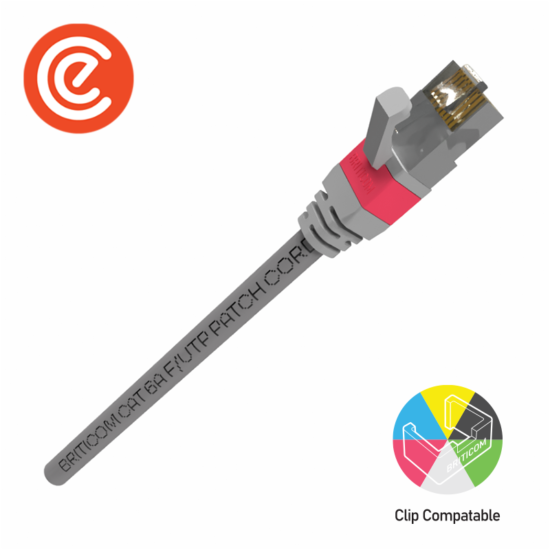

Cat6a FUTP Patch Cord
| Performance | 4 pair cables, Non-plenum cable |
| Jacket | LSZH or PE |
| Rated voltage | 100 V DC |
| [In] rated current | 1.5 A |
| Insulation resistance | 500 mOhm |
| Communication network category | 6A |
| Contact material | Phosphor bronze with 50 micron-inches gold plating |
| Contact resistance | 20 mOhm |
| Number of matings | >= 750 cycles |
| Flame retardance, Smoke emission | IEC 60332-1, IEC 61034 |
| Typical applications | IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T |
| Norms | ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009; ANSI/TIA-568.0-D:2017; EN 60603-7-5 |
