Briticom® Cat7 SFUTP Solid LAN is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568.0-D Standard of 2017 and T568.2-D Standard. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 600MHz with 10Gb
- ANSI/TIA-568.0-D Standard of 2017
- T568.2-D Standard
- 25 Years Warranty
- Shielded and Foiled /Unshielded Twisted Pair
- LSZH or PVC jackets
- Available in different reel lengths and reeling techniques
- Call centres
- Data networks
- LAN Applications
- CCTV

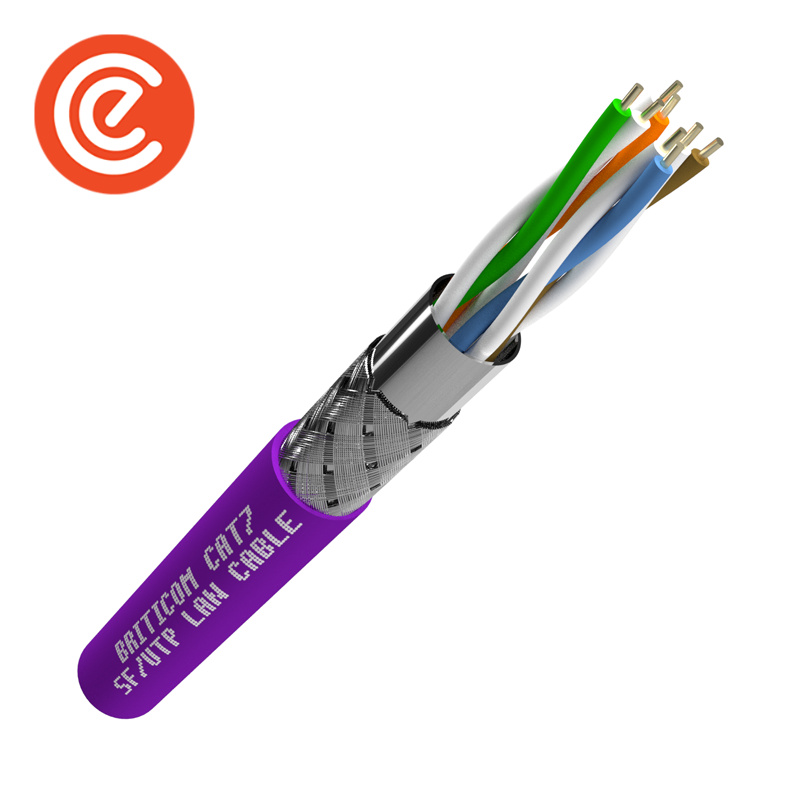

Cat7 SFUTP Solid LAN
| American Wire Gauge (AWG) | 22~23 |
| After Tensile Strength (Mpa) | ≥85% of unaged |
| Minimum Point Thickness (mm) | 0.24 |
| Cable Laying Length (±mm) | 140 |
| Jacket | PVC or LSZH |
| Outer Diameter (±0.2mm) | 7.20 |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 |
| 1.0-250.0MHz Impedance (ohms) | ≤45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 93.8 |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | ≥13.8 |
| Aging Elongation (%) | ≥50 of unaged |
| Aging Condition (oC x hrs) | 100 x 240 |
