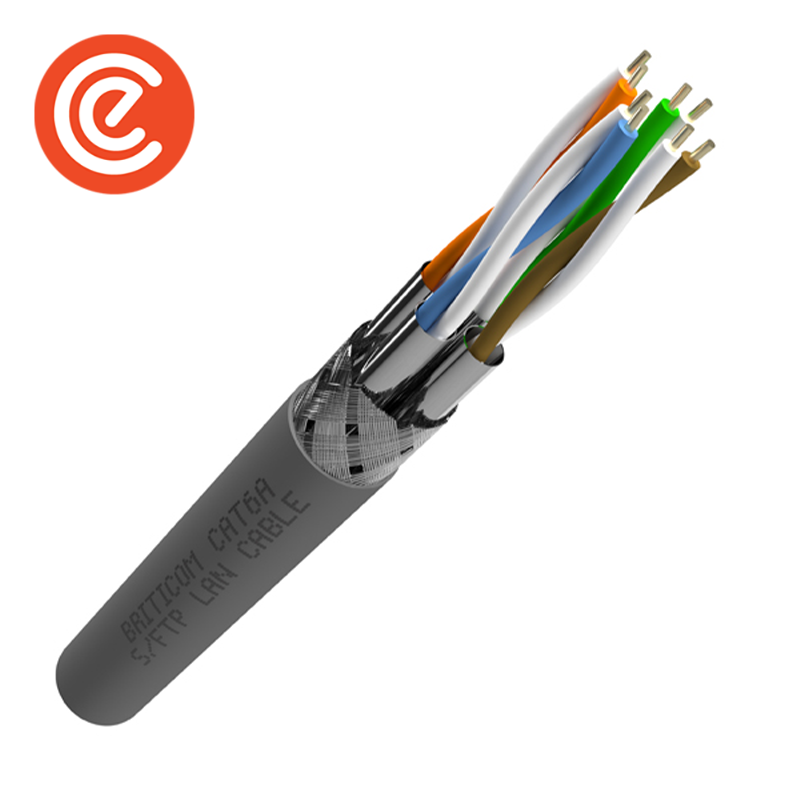

Briticom® Cat6a SFTP Solid LAN cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 25-Year warranty
- ANSI/TIA-568.0-D Standard of 2017
- T568.2-D Standard
- 550 MHz with over 10Gbps
- Shielded and foiled twisted pairs
- LSZH or PVC jacket
- Available in different colours, reel lengths and packaging types
- Data centre & Telecommunication networks
- LAN Applications
Cat6a SFTP Solid LAN
| American Wire Gauge (AWG) | 23 |
| Characteristic Impedance | 100 Ohm |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Minimum Point Thickness (mm) | 0.27 |
| Cable Laying Length (±mm) | 140 |
| Jacket | PVC or LSZH |
| Outer Diameter (±0.2mm) | 7.20 |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 |
| 1.0-250.0MHz Impedance (ohms) | <=100 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | <=330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 73.2 |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=50% of unaged |
| Aging Condition (oC x hrs) | 100 x 240 |
| Norms | ISO/IEC 11801 Edition 2.2; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51 |
