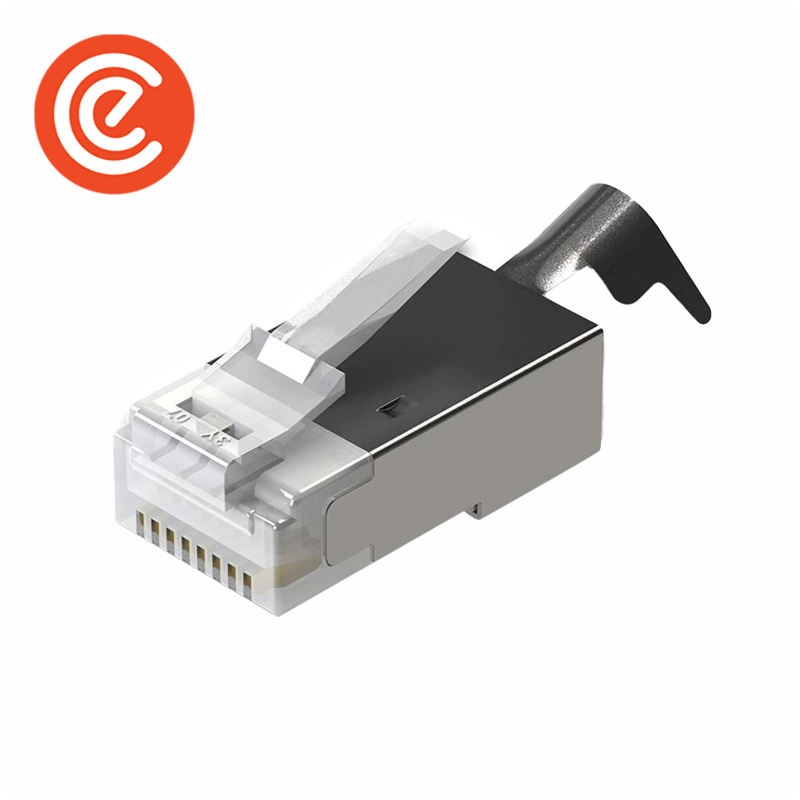

Briticom® offers STP Cat6A Modular Plugs. These ethernet RJ45 cable connectors are male plugs used for Cat 6A patch leads. They are 8P8C 8 PIN RJ45 STP shielded terminals Cat 6A. These plugs are not only suitable for Cat 6A they can also be used for FTP or SFTP cables. They can be used with both round and flat cables and are fully compliant with ANSI / TIA / EIA 568A. In addition to these UTP Cat 6 Plugs Briticom® also offers a wide range of other Cat 6A Plugs for every copper solution. You can also browse our Cat 6A Copper range that work in conjunction with these copper plugs.
Already bought this product from us? Share your experience on LinkedIn
- Gigabit Ethernet acc. to IEEE 802.3
- 10 Gigabit Ethernet acc. to IEEE 802.3an: Adequate for 10 Gigabit Ethernet
- RJ45 female, 8P8C
- Tool-free cable installation according to EIA/TIA 568 A & B
- Screw locked
- 360° shield coverage
- AWG-range: 24 … 22
| Category | CAT 6A |
| Contact Height After Crimping | 6.02mm ± 0.13mm |
| Durability Test | 750 times |
| Dielectric Voltage Withstand Test | Test 60S 1000V AC/DC TEST PASS |
| Tensile Test | ≥ 20pround (9.1kg) |
| Latch Bending Test | Over 20 times |
| Operating Temperature Range | -40 ~ 70C |
| Storage Temperature Range | -40 ~ 70C |
