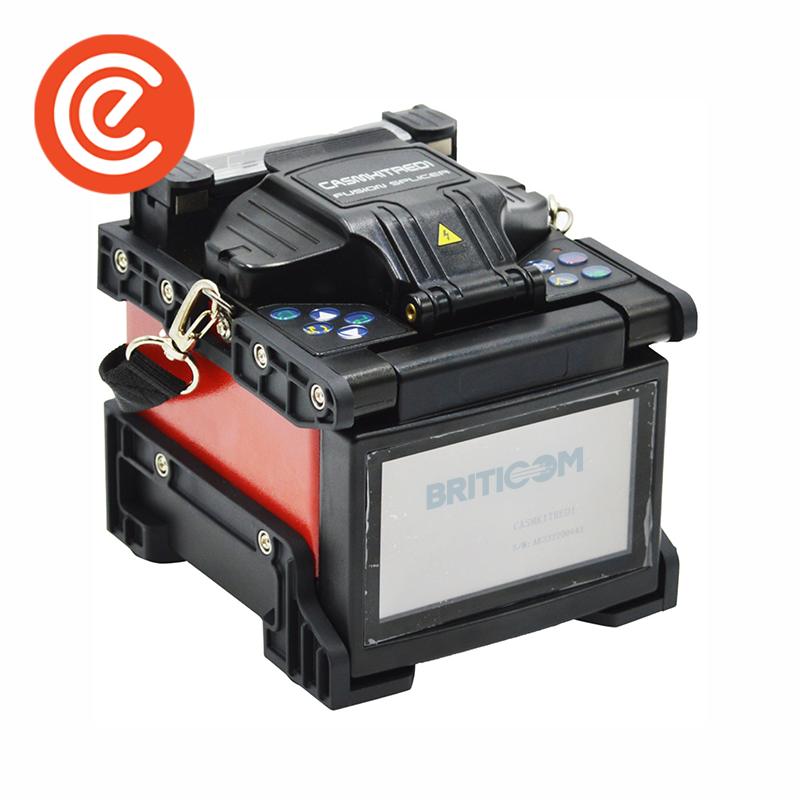

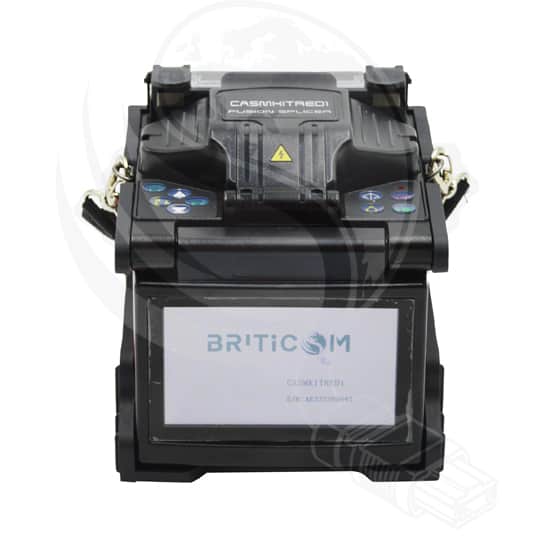

The Briticom® Core Alignment Fusion Splicer joins two optical fibres end-to-end using heat.
Already bought this product from us? Share your experience on LinkedIn
- Compact and Lightweight
- Applicable for fibres, cables and SOC
- Fully automatic, semi-automatic and manual operation
- Shockproof
- Power saving function
- USB interface
- 3-inch colour LCD monitor
| Fibre Diameter | Cladding Diameter: 80 -150 µm; Coating Diameter: 100~1000 µm |
| Applicable fibres | SM, MM, DS, NZDS, G655, G657 and others |
| Splice loss | 0.01 dB (MM), 0.02 dB (SM), 0.05 dB (DS/NZDS/G.655/G.657) |
| Return loss | 60dB |
| Tension Test | 2.0N |
| Protection sleeve length | 25mm, 40mm, 50mm |
| Tube-heat Time | 35 s |
| Alignment | Core Alignment (PAS Technology) |
| Splicing method | Arc splicing |
| Display | Colour 3.5 Inch TFT |
| Splice Memory | 10 000 splices |
| Electrode Span | At least 5000 times |
| Operating Temp | -18 ºC ~ 50 ºC |
| Power Supply | Internal Li-Battery, DC adaptor |
| DC output | 12V/2A Power for the external heater, light or hot jacket stripper |
| Battery Capacity | More than 150 times of continuous splices and heats |
| Dimension | 122mm (Length) x 122mm (Width) x 130mm (Height) |
| Weight | 2.0 kg. (Include battery) |

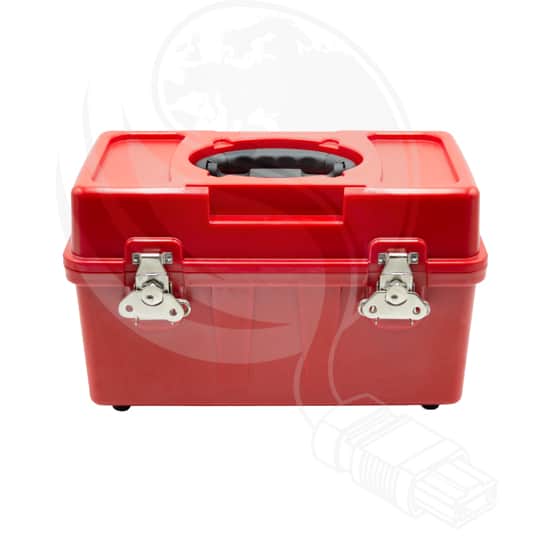

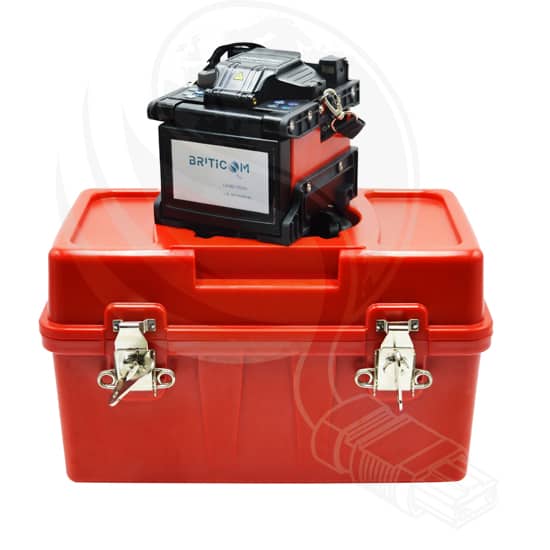

| Standard package | Main body, cleaver, stripper, battery, charger, electrode, holders, cooling tray, manual, carry case |
| International Standards | According to European Council Low Voltage Directive LVD 73/23/EC and Electromagnetic Compatibility Directive EMC 89/336/EEC |
Core Alignment Fusion Splicer
