Briticom® Dual Fibre Media Converter adapts an ethernet to a multimode or a single mode signal to enhance the transmission distance in LAN installations.
Already bought this product from us? Share your experience on LinkedIn
- Up to 128Mbps data
- 550m for MM and to 120km for SM
- Full duplex: transmitter & receiver
- Built-in RAM
- Internal/external power supply
- Available in Card-type and media rack
- Built-in 2 ports switch supporting flow & bandwidth control
- Compliant to IEEE 802.3*, FCC and CE
- LAN Applications
- CCTV

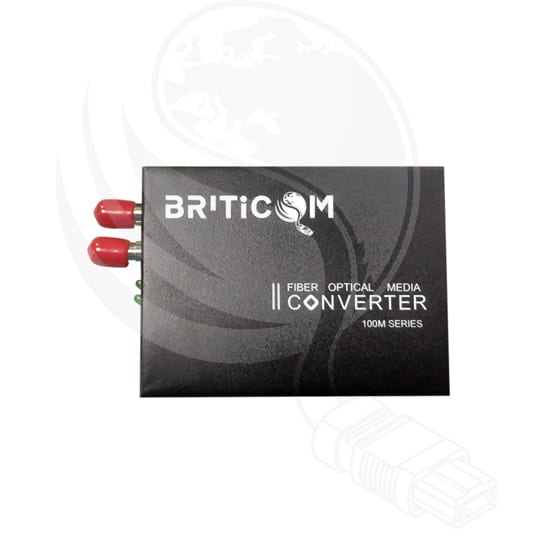

Dual Fibre Media Converter
| Cable | SM or MM Fibre/Twisted Pair |
| Transmission Type | 10/100M FDX |
| Bandwidth | 128Mbps |
| Distance | 550m~120km |
| Conformity | FCC, IEEE 802.3*, CE |
| Operating Temperature | 0 to +70 |
| Weight (kg) | 0.2 (External Power), 0.4 (Internal Power) |
| Dimensions (External Power) (mm) | 95(L) * 70(W) * 26(H) |
| Operating Humidity (%) | 5 – 90 |
| Power External | DC5V 2A, Consumption 3.5W |
| LED indicator | POWER (power supply) FX Link/ACT (fibre link/action)
TX Link/ACT (RJ45 link/action) 100M, SD |
| Transmission Distance(km)
|
Multimode Dual-fibre 2 – Single-mode Dual-fibre 20/40/60/80/120 – Category-5 twisted pair 100 |
| Port | RJ-45 Port: STP/UTP – Optical Port: SC ST FC |
