Briticom® EcoSaver range of Wall Cabinets are enclosures used to house, protect and enable the management or the connection of cables and cable ends. They are widely used in Datacomms applications as well as Telecom and data centre installations.
Already bought this product from us? Share your experience on LinkedIn
- 19’’ Device Compatibility
- Wall Type Rack Cabinet
- Glass Front Door
- Front Door O-Lock
- Brushed Cable Entry
- Bottom Plastic Closure
- Rear Plastic Closure
- Small & Home networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

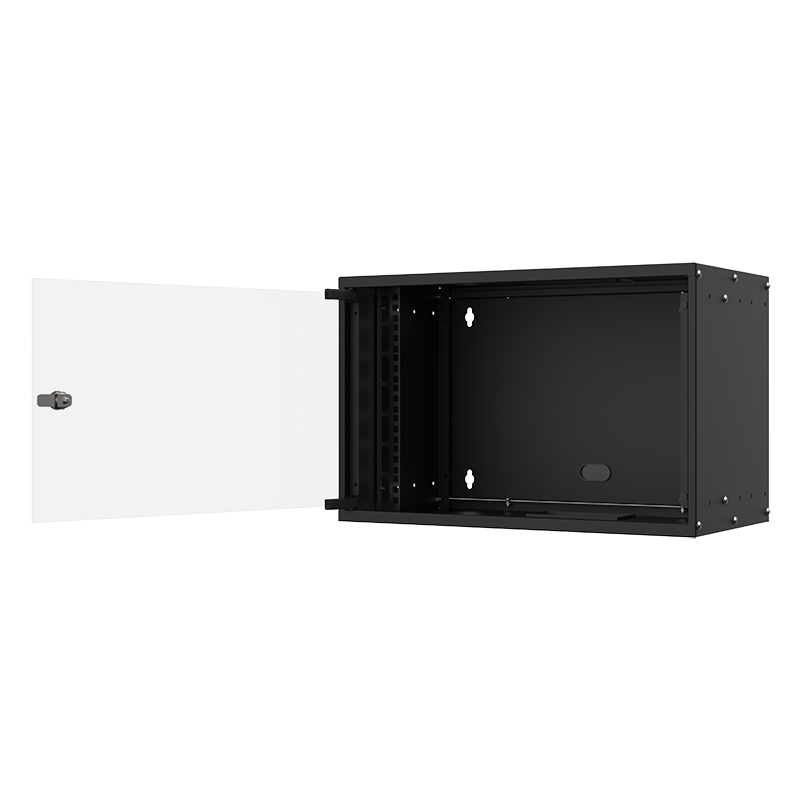

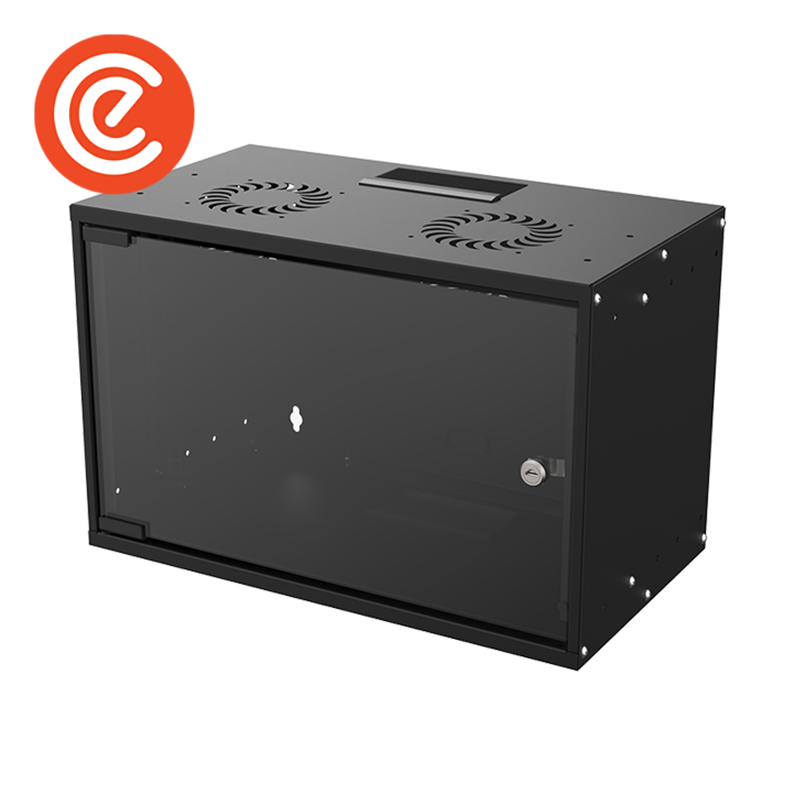

EcoSaver Wall Cabinet
| Material | 0.8mm Steel |
| Finish | Powder Coating |
| Colour | RAL9005
RAL 7035 |
| Material | W | D | H | X | Y |
| 4U | 535mm | 300mm or 400mm or
600mm |
215mm | 119.7mm | 426mm |
| 7U | 535mm | 348mm | 253.1mm | 426mm | |
| 9U | 535mm | 437mm | 342mm | 426mm | |
| 12U | 535mm | 571mm | 475.3mm | 426mm | |
| 15U | 535mm | 702mm | 607mm | 426mm |
