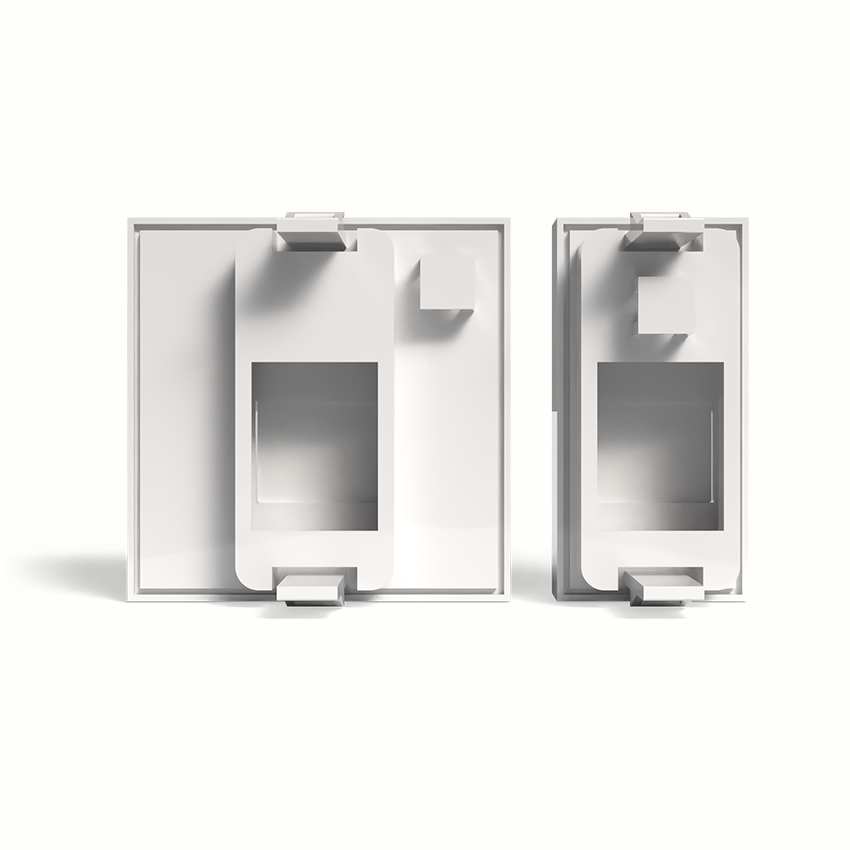

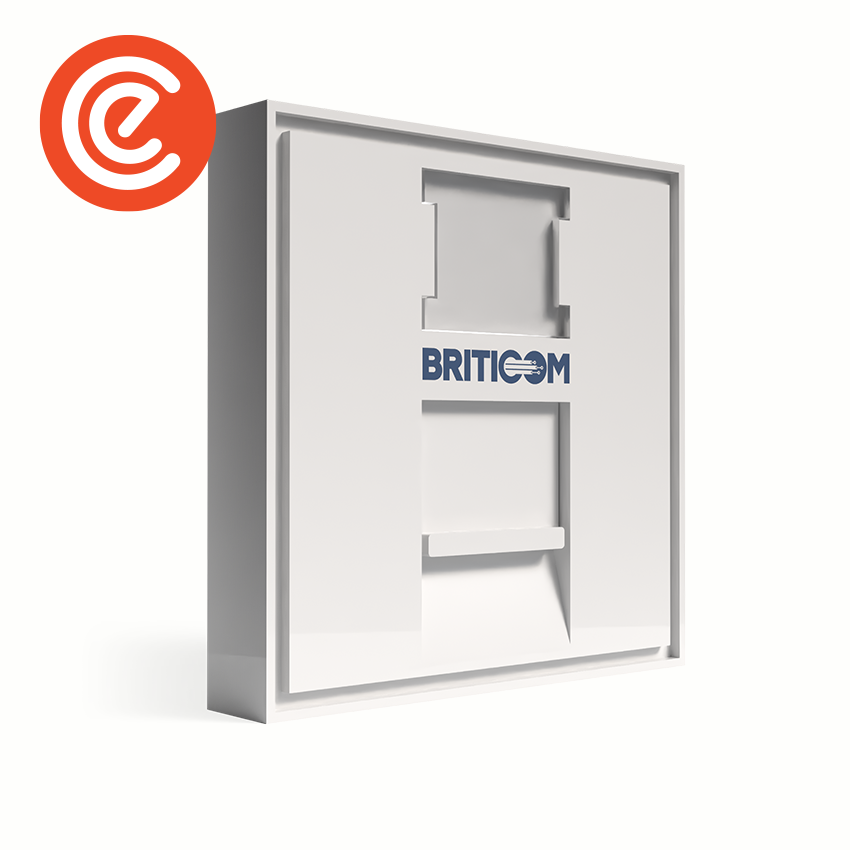

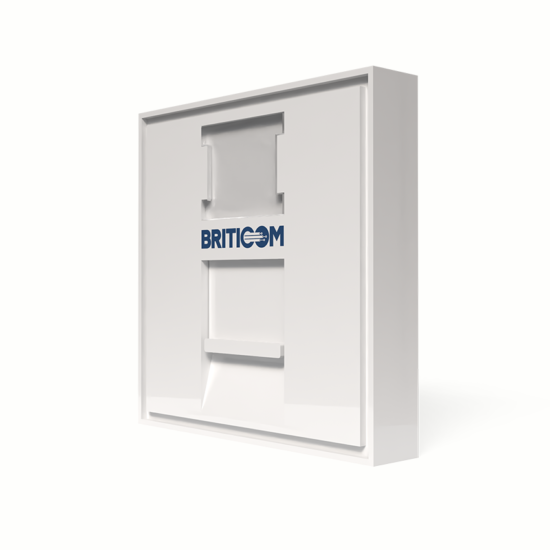

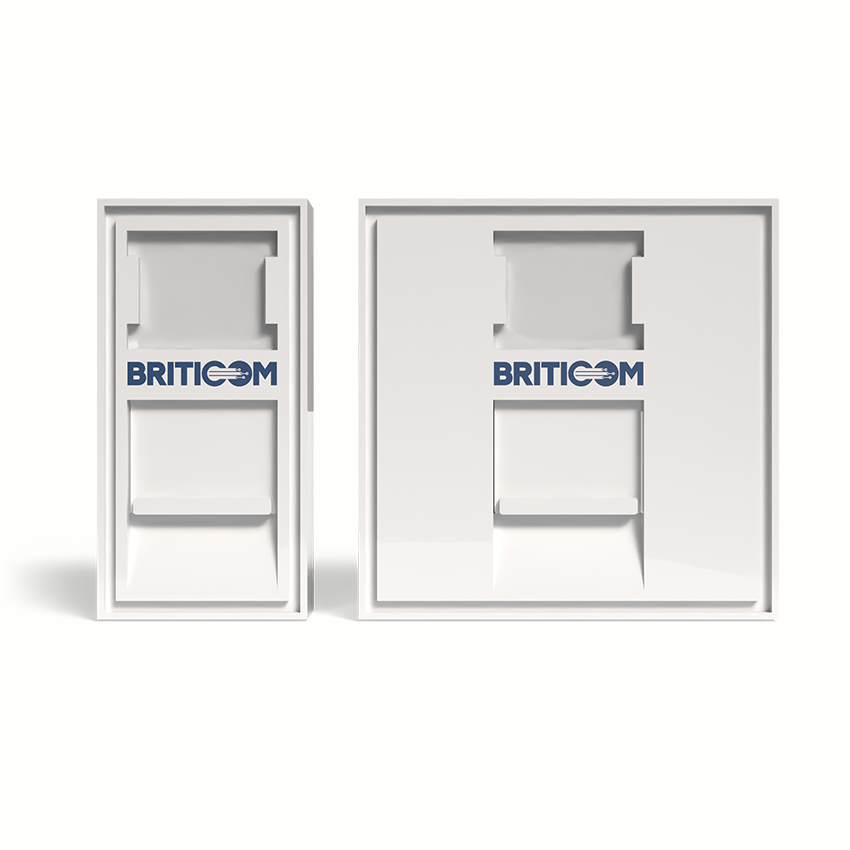

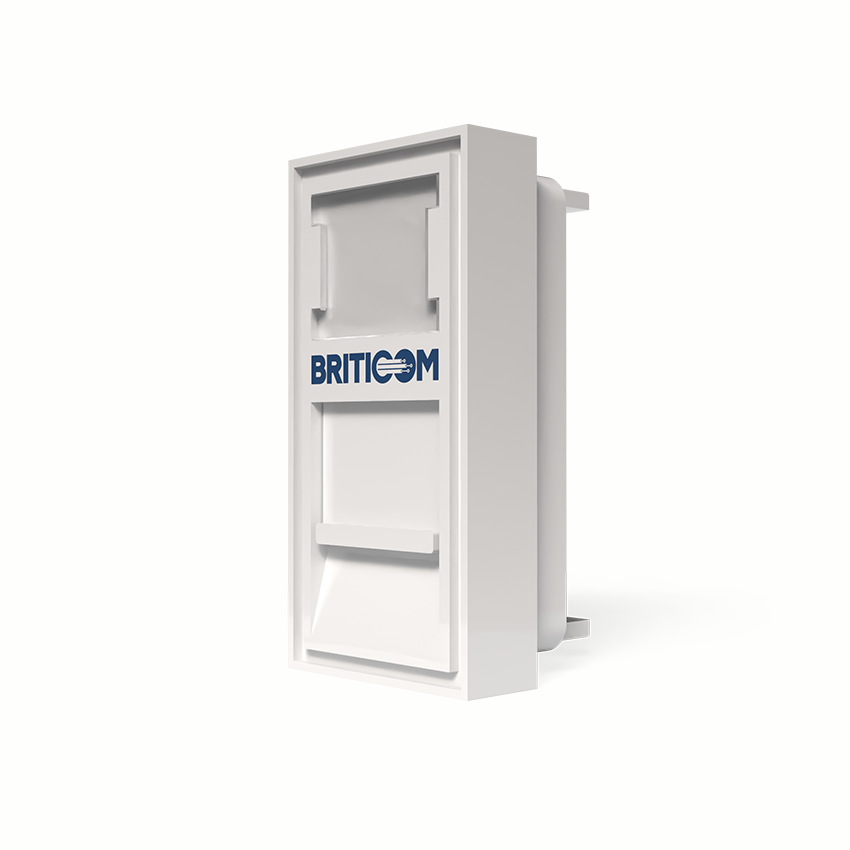

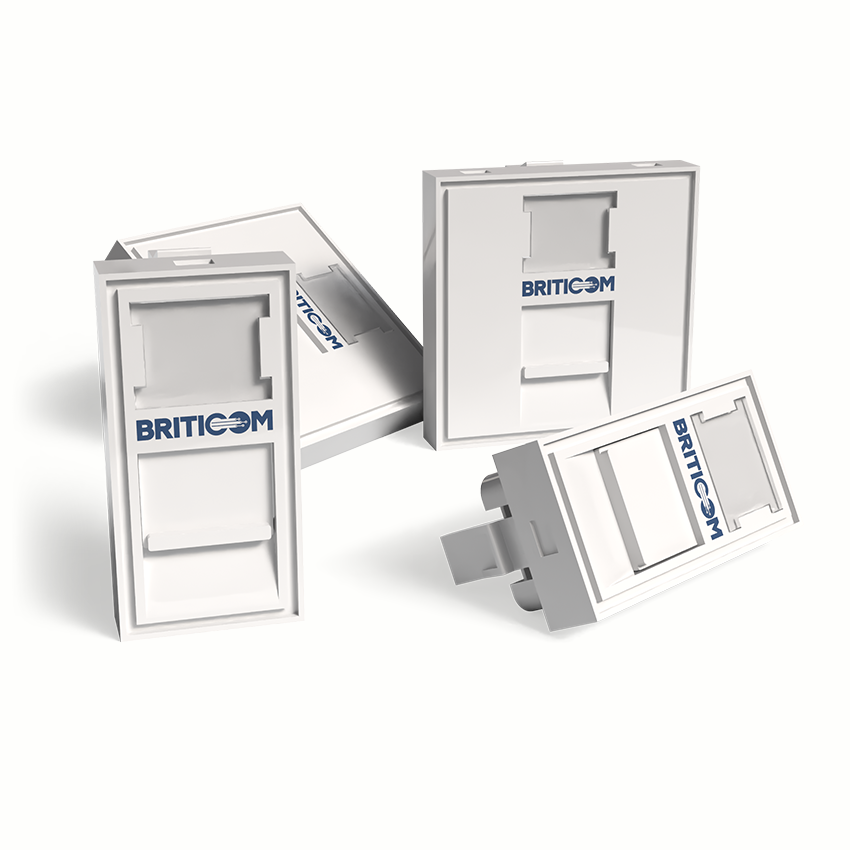

Briticom™ Euro RJ45 Shuttered Module is a cost-effective modular and essential quality RJ45 port to host keystone jacks or moulded modules from Cat5e to Cat6a. This module can be using in conjunction with Briticom’s™ Copper accessories. With automatic shuttered windows and labels on each port this Euro RJ45 Shuttered Module is ideal for all your copper requirements. This module is made from quality raw materials and gloss white plastic and has a wide range of applications including LAN Connections, Call Centres and Offices. Briticom™ has a wide range of British, EU and US wall outlets available that can be use together with our other copper accessories to create a full copper solution for your project.
Already bought this product from us? Share your experience on LinkedIn
- Quality raw materials and gloss white plastic
- Angled and flat versions are available
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Available in 1 ~ 4 ports
- Automatic shuttered windows
- Labels on each port
- LAN connections
- Call centres, offices, banks
- 10 ~ 10 Gbps
| Front frame | 80*80mm / 80*125mm |
| Empty Module | 45*22.50mm & 45*45mm |
| Insertion force | 30N max. (IEC 60603-7-5) |
| Rear Support | Die-cast metal |
| Number of ports | 1~2 (80*80) mm & 1~4 (80*125) mm |
| Colour | White |
| White label space | YES |
| Outlet direction | Flat / Angled |
