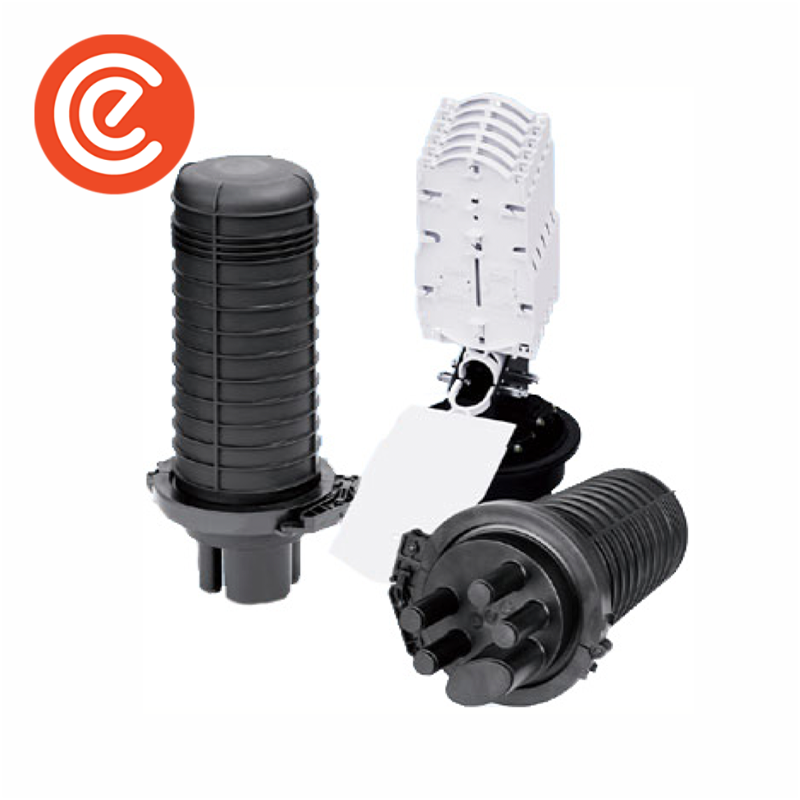

Briticom® 144FO Heat Shrink Dome Enclosure are used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables.
Already bought this product from us? Share your experience on LinkedIn
- IP68 & IK10 rating (harsh environment and temperatures)
- 144 FO
- Aerial, manhole and wall
- Very strong and robust shell
- Heat shrink sealing
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-to-the-Home – FTTH
144FO Heat Shrink Dome Enclosure
| Dimensions (mm) | 450×φ230 |
| Weight (kg) | 3.6-4.2 |
| Cable entry ports | 5 entries (8-20mm) |
| Material | Polymer modified plastic |
| Sealing material | Polycarbonate |
| Type of seal | Heat shrink |
| Max. Capacity per enclosure | 144 fibres |
| Splice capacity for tray | 24 |
| Application | Aerial, manhole and wall |
| IP rating | IP68 |
| Accessories included | Splice trays, cable ties, cable fixings, pole-mounting hoop, sand paper, sealing gasket, splice protection sleeves, silver paper and insulating tape |
