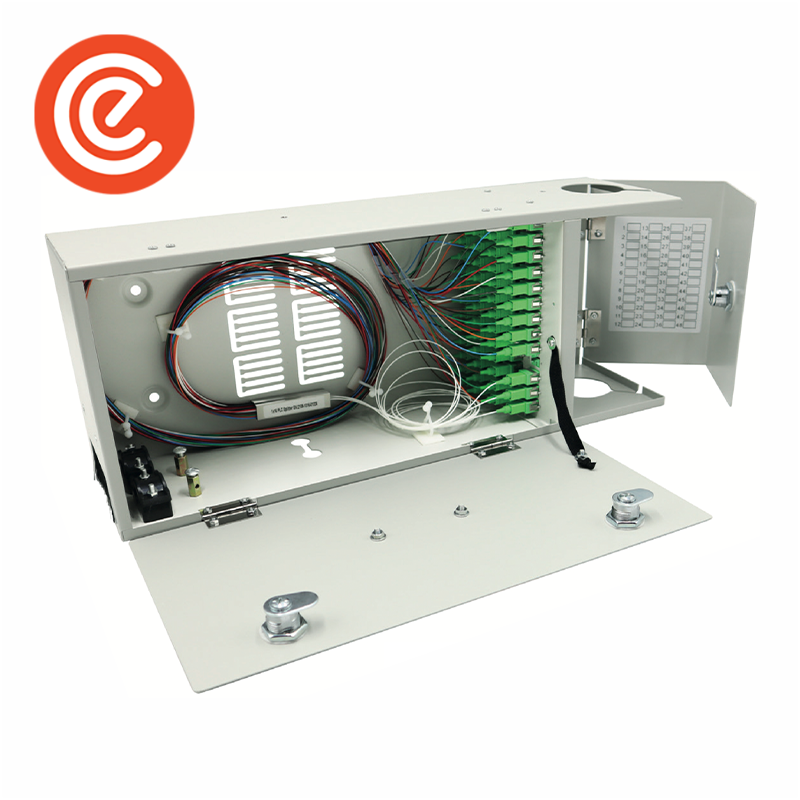

The Briticom® Indoor Splitter Box 104FO integrates fibre cable storage, distribution and splitting in a building’s basement to distribute fibre connections to all of the apartments in the building. With up to 52 SX SC Ports and two separate lockable areas; one for cable fibers & splitting and one for the connection of patch cords. The Indoor Splitter Box 104FO can be used in LAN, MAN & WAN Applications as well as FTTH and CATV.
Already bought this product from us? Share your experience on LinkedIn
- 104 FO
- Up to 52 SX SC ports
- Two areas:
- Left area is for cable fibres and splitting
- Right area is for the connection of patch cords
- Independent doors
- Two separately lockable areas
- Stackable allowing higher capacity
- Cuboid box with modular design
- Suitable for splitter
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
| Max. Capacity | 104 fibres |
| In/Outlet Cable Number 3 pcs | 3 of 1 x 16 |
| Cable Type | Supports importing of max Ф16 mm feeder cables, Ф7.6 mm vertical cables, and Ф5.0 mm drop cables |
| Splitter Capacity | 3 of 1 x 16 (Maximum) |
| Protection Grade | IP50 |
| Installation Method | Wall mounting |
| Dimension (H W D) | ~ 180 x 460 x 150 mm |
| Net Weight | ~5 kg |
