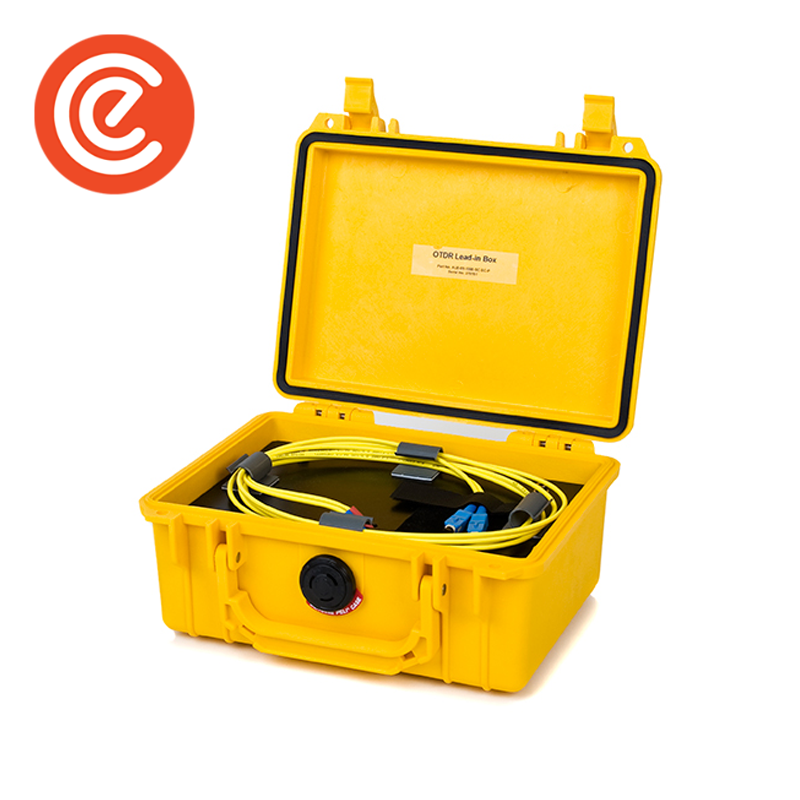

The Briticom® fibre optic OTDR dead zone eliminator also called launch leads, are factory assembled connectors to bare fibre and are often a necessity when testing with an OTD. They are designated to measure the insertion loss of the near-end and/or far-end connection of a fibre optic link using an OTDR. These rugged boxes are airtight, watertight and incredibly tough. These military approved cases are IP65 rated and are used in the harshest environments. Select this version if you want the best protection for your lead-in fibre.
Already bought Compact OTDR Launch Leads from us? Share your experience on LinkedIn
- IEC Standard 60529
- Waterproof, shockproof and dustproof
- SC, LC, ST and FC and more connectors available
- LSZH or PVC buffer
- Available in standard ALL single-mode and multimode
fibre types - RoHS materials compliant
- Telecommunication networks
- Data centres
- Data processing networks
- CATV – Cable television
- FTTH (Fibre-to-the-Home)
- ATM and WDM
| Dimensions | 232 x 192 x 111 |
| Input & Output Leads | 3mm jacketed, aramid yarn strength member, 1m long |
| Weight | 1.3 kg (3.0 lb) |
| Max Fibre Length | 2 km |
| Operating Temperature | -40ºC to +55ºC |
| Case | Polypropylene copolymer; IP65 rated |
| Typical Loss | < 0.5dB @ 1310nm with 1km SM fibre |
| Type of Connectors | SC SX, LC SX, FC SX, ST SX, E2 SX, all in UPC and APC |
