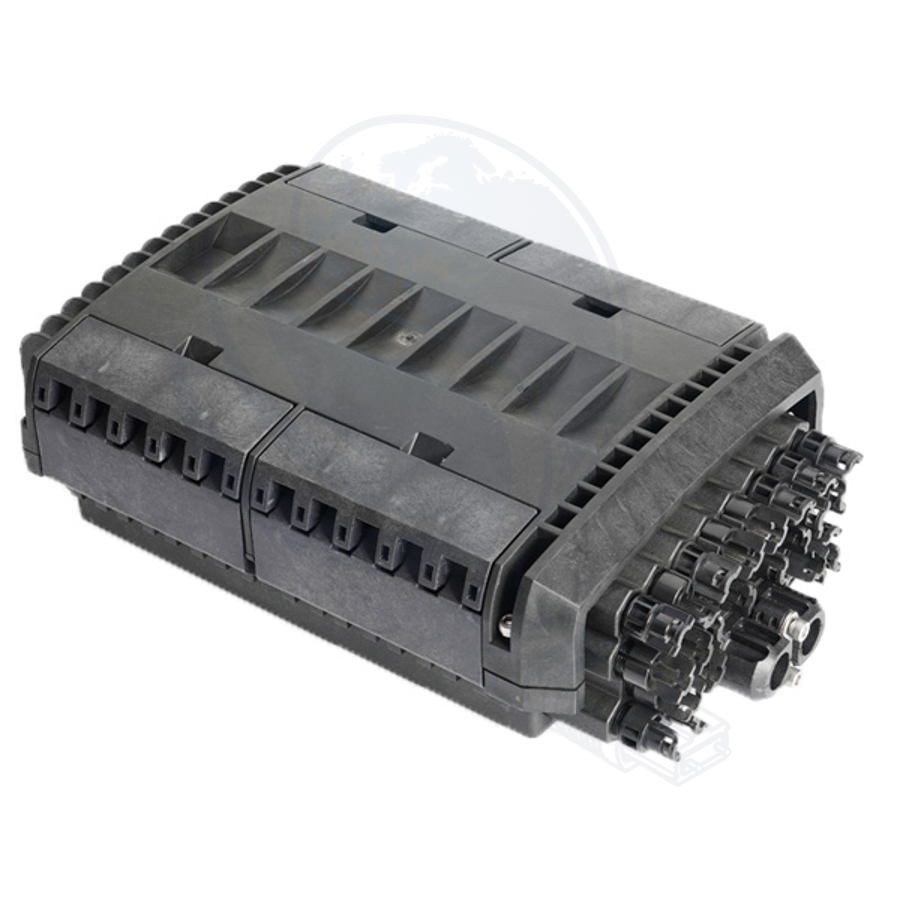

Briticom™ Mechanical FTTH Splice Enclosures are used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables. With a strong and robust shell, this Model 2 Mechanical FTTH Splice Enclosure is suitable for many applications including Telecommunication Networks, LAN, MAN & WAN applications and CATV (Cable Television). This model can be both Wall Mounted or Pole Mounted and meets the IEC Standards. Use the tabs below to get some technical specifications and to view the datasheet.
Already bought this product from us? Share your experience on LinkedIn.
- IP68 & IK10 rating (Harsh environment & temperatures)
- 96 FO
- Very strong & robust shell
- Mechanical sealing
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

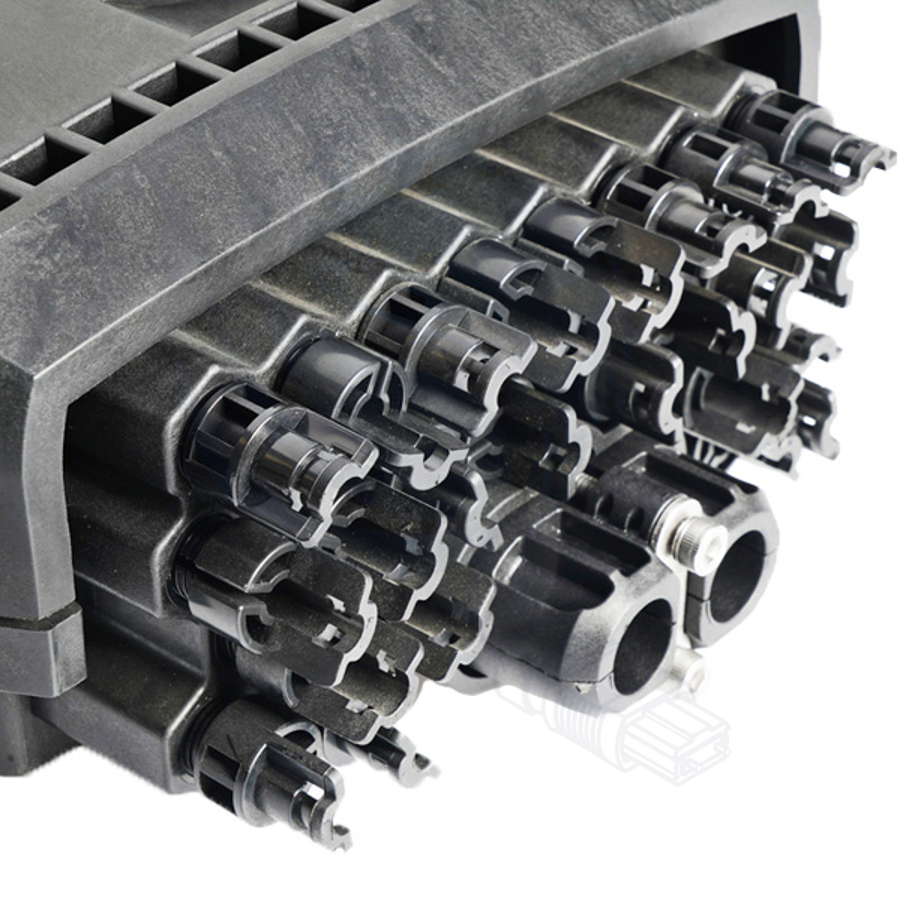

| Ports | 25 ports. 1 uncut port, φ8-17.5mm; 24 drop ports, applicable to figure 8/ φ3-7mm cables |
| Capacity | 4 Pcs 24-core splice trays, max. 96F |

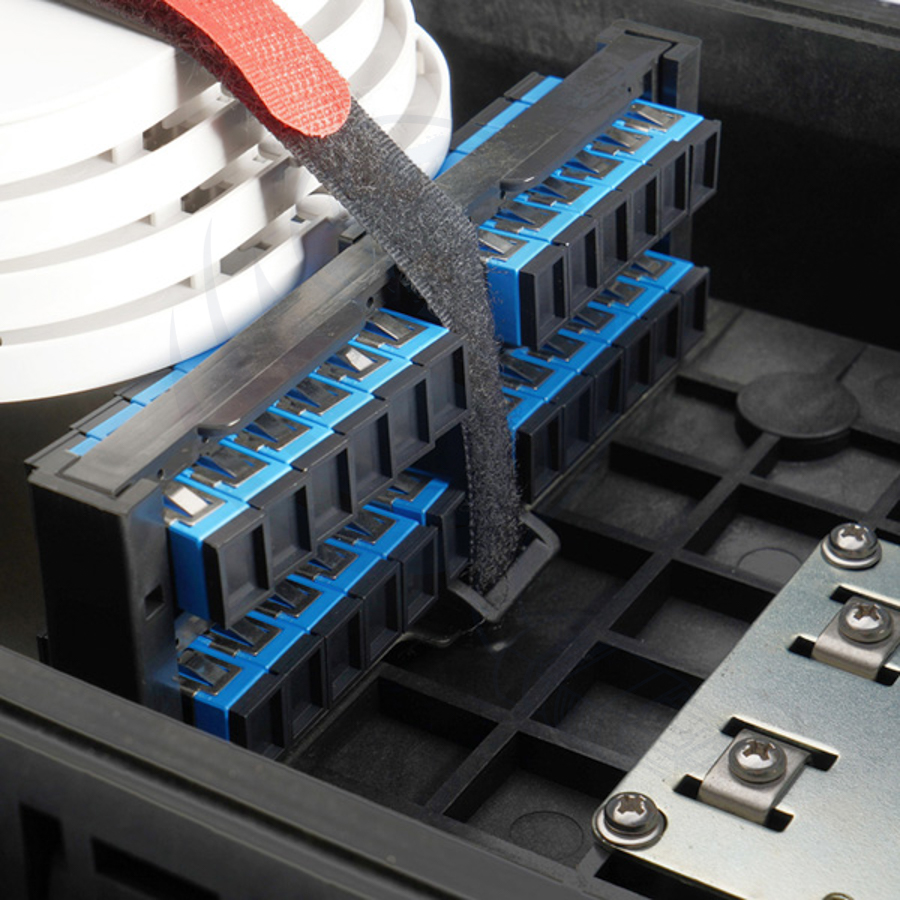

| Splitter / Adapter | 24 pcs SC adaptors, 3 pcs 1:8 mini splitter |
| Sealing | Screw-free hinged style mechanical seal, reopenable, IP68 |
| Installation | Pole Mounting, Wall Mounting |
| Dimensions(mm) L x W x H | 380 x 245 x 130 |
| Material | Polymer Modified Plastics |
| Weight | 3-4kg |
