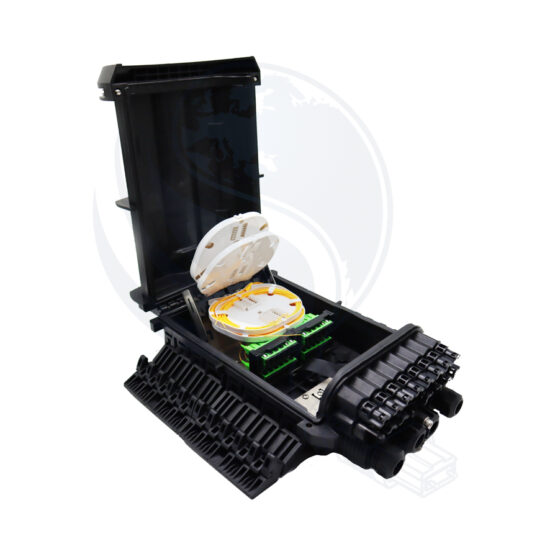

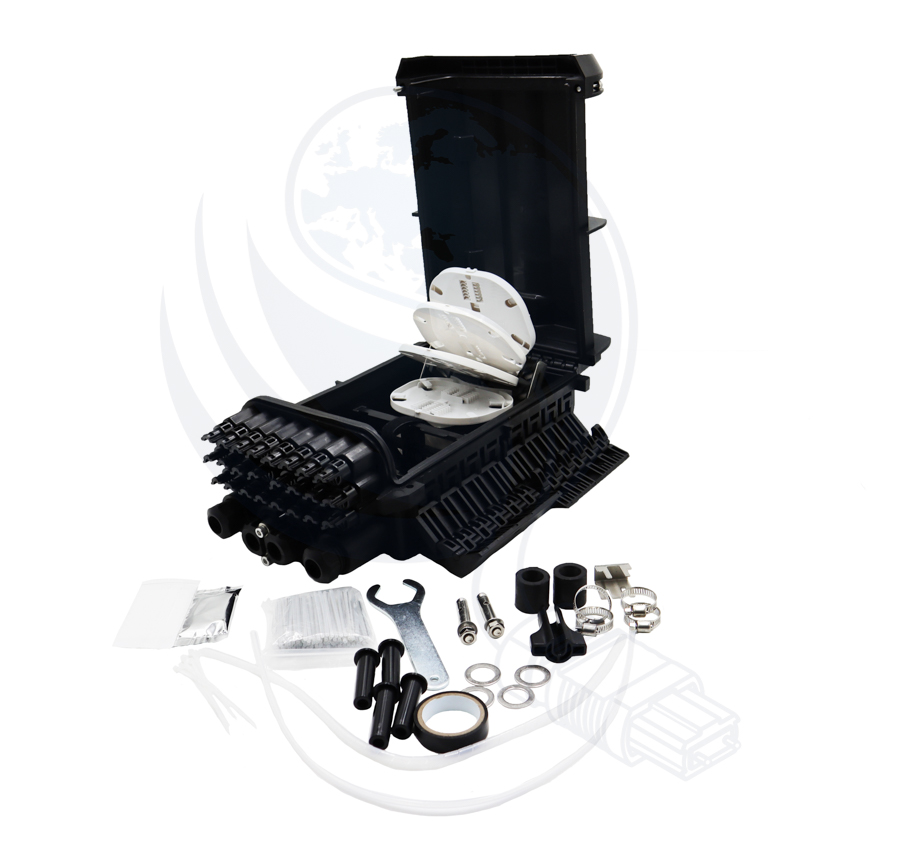

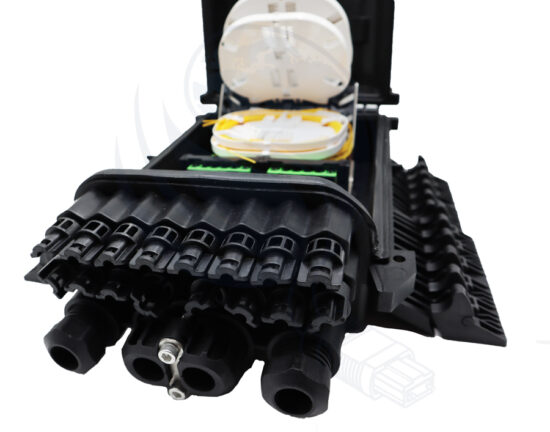

Briticom™ FTTH Splice Gland Enclosure Model 04 – 96 FO is used to protect and house fragile fibre splices and joints between cables. This and other models can also be used to house splitters and patch connectors of splitters with fibre optic cables. With a strong and robust shell, this Model 4 FTTH Splice Gland Enclosure – 96 FO is suitable for many applications including Telecommunication Networks, LAN, MAN & WAN applications and CATV (Cable Television). This model can be both Wall Mounted or Pole Mounted and meets the IEC Standards. Use the tabs below to get some technical specifications and to view the datasheet.
Already bought this product from us? Share your experience on LinkedIn.
- IP55 & IK10 rating (Harsh environment & temperatures)
- 96 FO
- Very strong & robust shell
- Mechanical sealing
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
| Usage | Aerial; Wall |
| Dimensions | (370×210×124)mm |

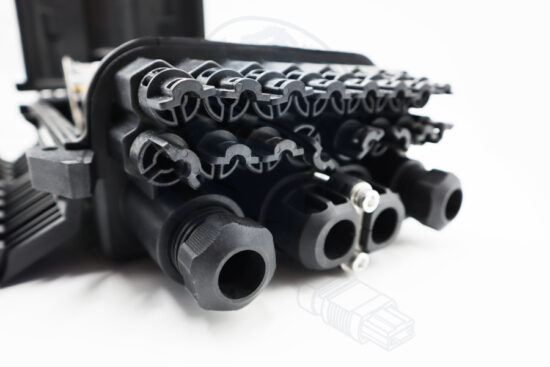

| Cable Entries | 2 entries @ 10-17.5mm, 16 @ 3-8mm |
| Weight | 2.5 ~ 3.0 Kg |
| Type of Seal | Mechanical |
| IP Rating | IP68 |
| Voltage resistance | 15KVDC/1min |
| Capacity per Tray & Total Capacity | 24/tray & 96 FO per enclosure |
| Material | Polypropylene |
| Horizontal pull force/crush pressure | 1000N / 3000N10cm |
| Insulation resistance | 2 x 104Ω |
| Atmosphere pressure (Kpa) | 70~106 |
