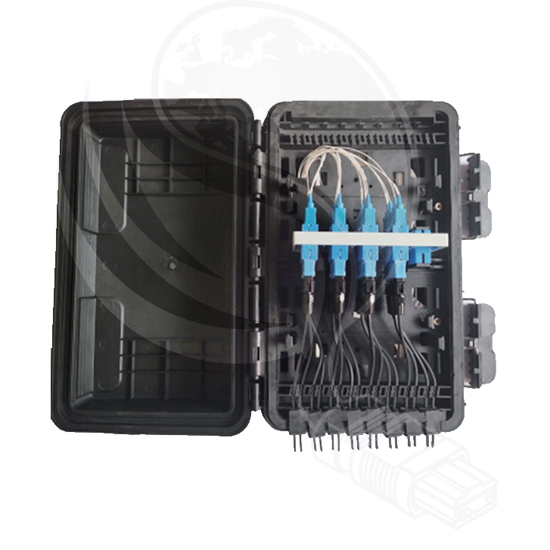

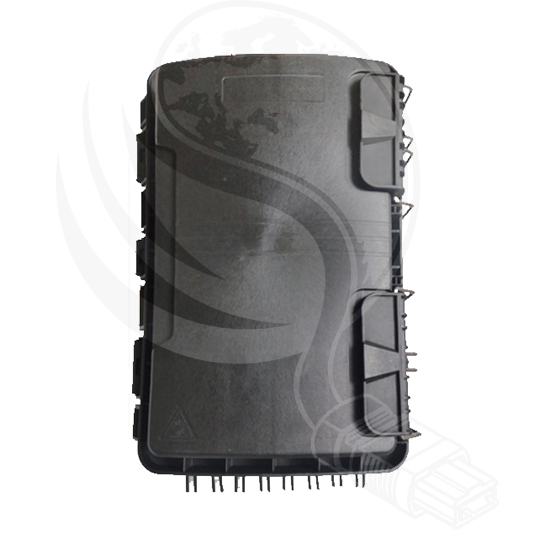

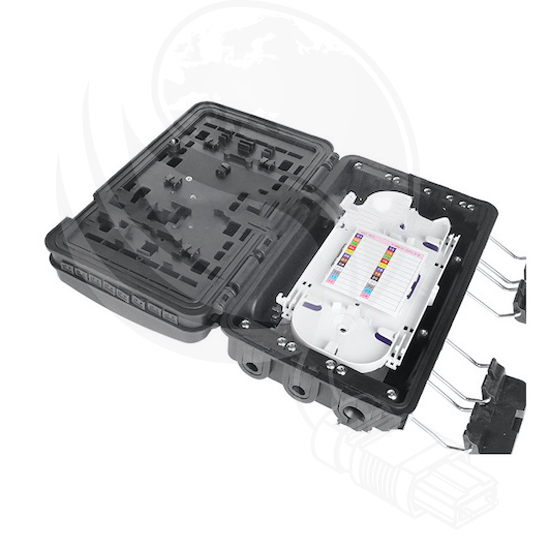

Briticom® Mechanical Inline Enclosure 24FO is used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables. This model has an IP65 rating and its 3 layer structure is easy to maintain. It is manufactured with high strength material with good weather adaptability making it the ideal solution for a wide range of applications including Telecommunications Networks, CATV Cable Television and Fibre to the Home (FTTH).
Already bought this Mechanical Inline Enclosure 24FO from us? Share your experience on LinkedIn
- IP65
- 24 fibres
- Support hanging wire and pole installation
- Outdoor application and good UV resistant
- Double side drop cable outlet. Drop cable can lead in at both sides, easy to deploy
- Cassette splitter for easy expansion
- 3 layer structure and easy to maintain
- High strength material with good weather adaptability
- Support ADSS cable and self-support fibre cable
- Separate area for distribution cable and drop cable, easy for expansion and service provisioning
- Suitable for the application on NAP in the distributed split PON architecture
| Dimension (mm) | 175x285x127 |
| Splice Capacity | Maximum 24F (SC SX) |
| Splitter Type | Special Cassette Splitter |
| Number of Splitter | Max. 2×1:8 or 1×1:16 |
| Number of Output Drop Cable | 16 (support 2×3,2×5,4×8,3,5mm) |
| Operating Temperature (℃) | -40~+65 |
