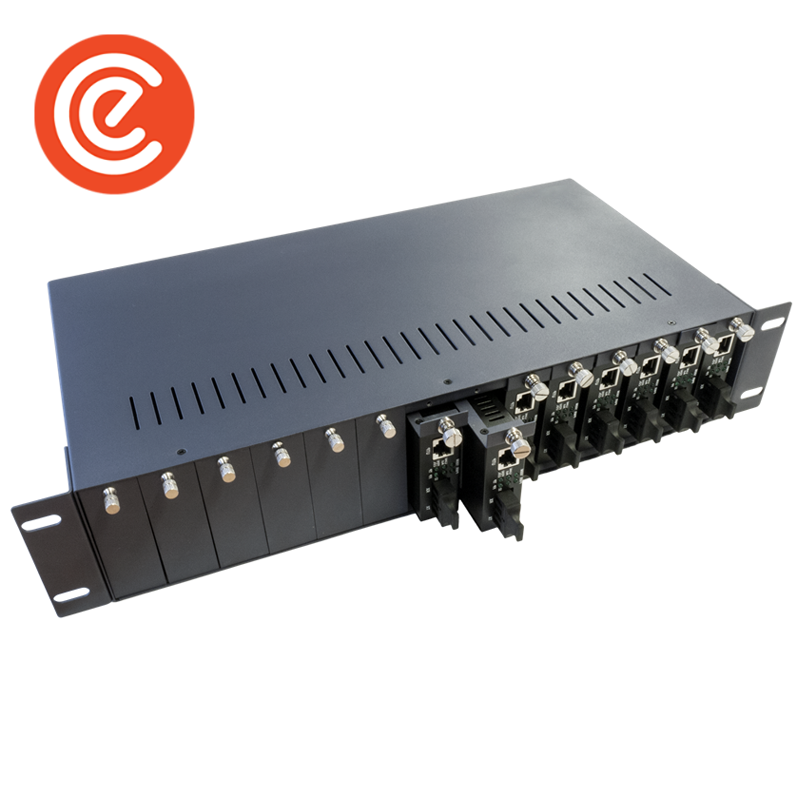

Briticom® supply rack-mount Media Converter Chassis Standalone designed for the management of media converters within a cabinet.
Already bought this product from us? Share your experience on LinkedIn
- For card-type and standalone media converters
- Up to 14 standalone media converters
- Internal power supply for card-type chassis’
- Mounting brackets for standalone media converters
- Redundant power supply (RPS) unit
- SNMP-ready
- Optional DC-48V Power Supply
- Supports up to 16 line-card media converters
- Two (2) loading-sharing, hot-swappable power supplies
- LED status panel for fan, Power and slot
- Supports mix-and-matching between 10/100-base, copper, fibre, single/multi-mode, WDM products with ST or SC connectors
- Ideal for mission-critical networks
Media Converter Chassis Standalone
| Capacity | 14 standalone media converters |
| Chassis | Aluminium/Steel |
| Power | Up to two power supplies Load-sharing, Hot-swappable, Rear-loading |
| Card Media Converters Adapted
Standalone Media Converters Adapted |
10/100M
10/100M, 10/100/1000M, 1000M |
| Power In | AC 100V ~ 260V; Or DC 48V |
| Power Out | DC 5V, 20A |
| Diameter of DC Plug | 2.5/5.5mm |
| Ripple | ≤50 Mv |
| Noise | ≤50 Mv |
| Protection of Power Supply | Circuit-breaker when overvoltage, Circuit-breaker when overflow, Circuit-breaker when short circuit |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | 20°C to 85°C |
| Humidity | 5% to 95% |
| Dimensions (mm) | 485 (L) 231 (W) 90 (H); 19 Inches 2U |
| EMI | FCC part 15 class a ROHS |
