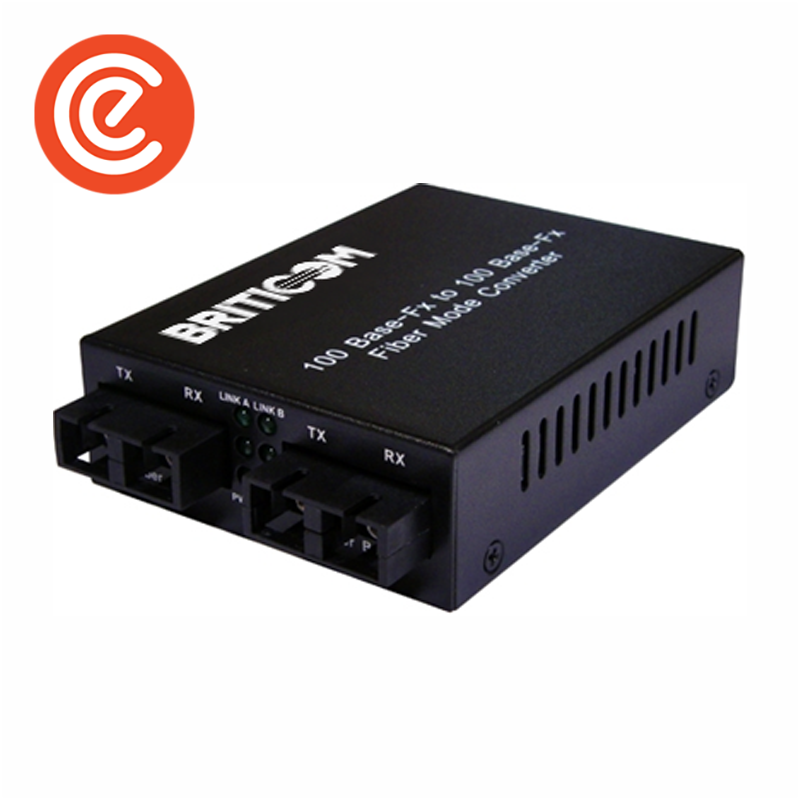

Briticom® Single-Mode to Multi-Mode Media Converter allow the switching of fibre types between two converters. It has a Built-in 2 port switch which supports flow and bandwidth control and Full-duplex utilises two fibre channels, one for transmitting and one for receiving.
Already bought this product from us? Share your experience on LinkedIn
- Built-in 2 port switch which supports flow and bandwidth control
- Full-duplex utilises two fibre channels, one for transmitting and one for receiving
- Compliant to IEEE 802.3*, FCC and CE standards
- Available with internal or external power
- Card-type and media racks also available
- LAN Applications
| Transmission Type | 10/100M, 10/100/1000M or 1000M FDX/HDX |
| Wavelength (nm) | 850~1625 |
| Bandwidth | 128Mbps, 1.4Gbps |
| Data Buffer | 2Mb |
| Distance | 550m~120km |
| Operating Temperature | 0 to +70 |
| Weight (kg) | 0.2 (External Power), 0.4 (Internal Power) |
| Dimensions (External Power) (mm) | 95(L) * 70(W) * 26(H) |
| Dimensions (Internal Power) (mm) | 140(L)* 110(W) * 30(H) |
| Power Consumption | 3.5W |
| Operating Humidity (%) | 5 – 90 |
| Power External | DC5V 2A |
| LED indicator | POWER (power supply) FX Link/ACT (fibre link/action)
TX Link/ACT (RJ45 link/action) 100M, SD |
| Transmission Distance(km)
(m) |
Multi-mode Dual-fibre 2
Single-Mode Dual-fibre 20/40/60/80/120 Cat5 Twisted Pair 100 |
| Port | RJ45 Port: STP/UTP Cat5 Twisted Pair-Optical Port: SC ST FC |
| Conversion Means | Media Conversion, Store-and-Forward |
Single-Mode to Multi-Mode Media Converter
