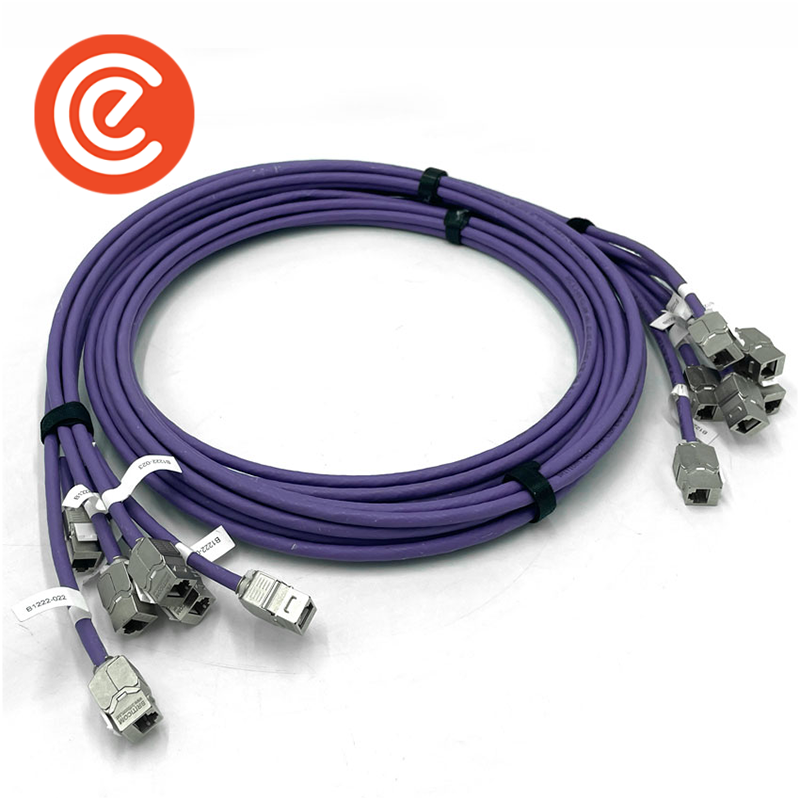

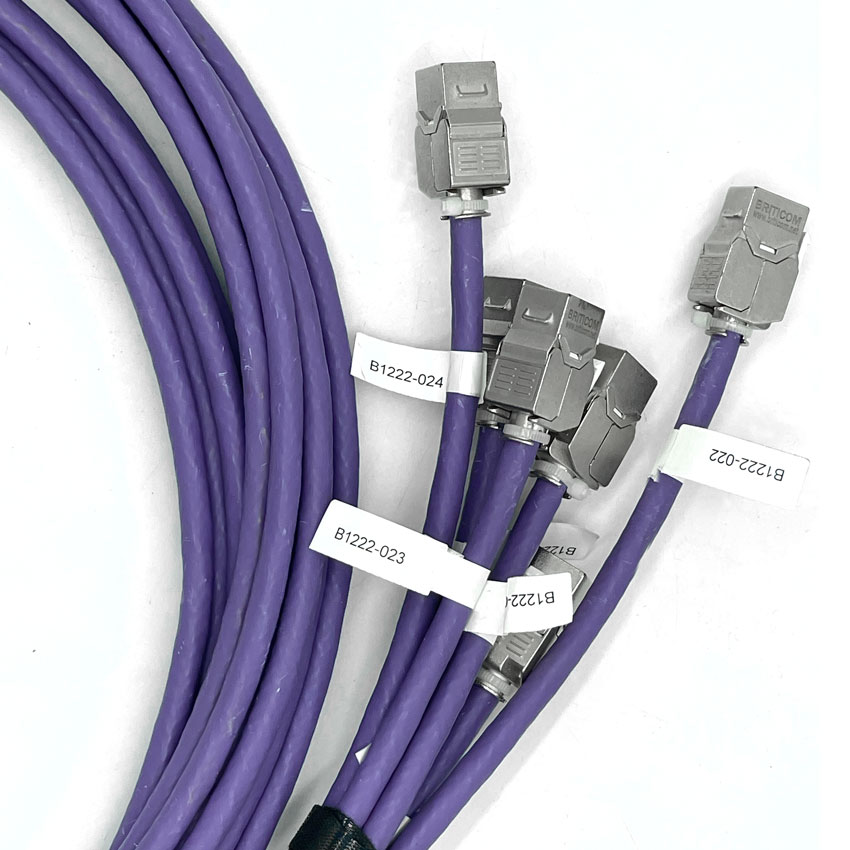

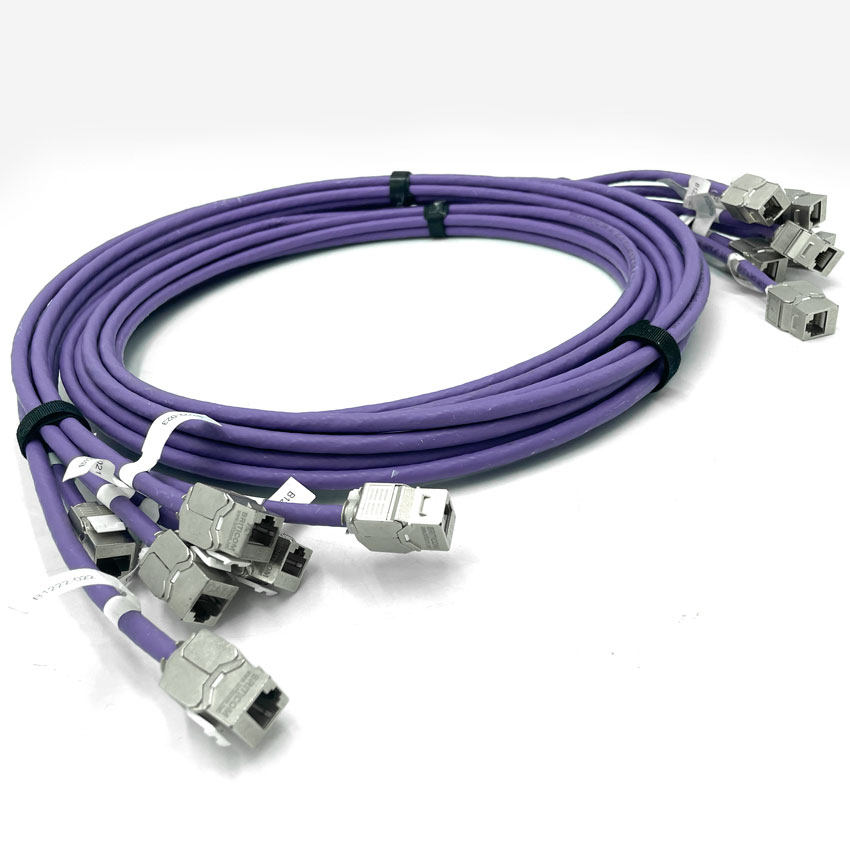

Briticom® pre-terminated copper trunk cables provide a quick plug-and-play solution for links in the full data centre solution. These trunks can offer major benefits over terminating twisted-pair cable in the field. There are various pre-terminated copper trunk cables available, in UTP and STP cable construction with different termination types, such as jack to jack, jack to plug
and plug to plug.
Already bought this product from us? Share your experience on LinkedIn
CAT 5E DATASHEET
FEATURES:
- Cat 5e pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-568.0-D Standard of 2017, T568.2-D Standard |
| Wiring Gauge | 24 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 6 DATASHEET
FEATURES:
- Cat 6 pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-568.0-D Standard of 2017, T568.2-D Standard |
| Wiring Gauge | 24 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 6A DATASHEET
FEATURES:
- Cat 6a pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-568.0-D Standard of 2017, T568.2-D Standard |
| Wiring Gauge | 23 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
CAT 7 DATASHEET
FEATURES:
- Cat 7 pre-terminated patch cables
- Fast and easy installation with a 75% reduction in labour costs
- Braided sleeve binding and optional pulling eye ensure a snag-free installation
- Available in STP and UTP
- Different termination types available: KSJ to KSJ, KSJ to plug, plug to plug
APPLICATIONS:
- Data Centre Solution
- Telecommunications Racks
- Quick Network Deployment
TECHNICAL:
| Material | Bare Copper |
| Conductor construction | 1/0.560 ± 0.02 mm |
| Insulation Diameter | 1.04 ± 0.06 mm |
| Jack Type | 8P8C (8-position, 8-contact) RJ45 style Keystone Jack |
| Wiring Scheme | ANSI/TIA-568.0-D Standard of 2017, T568.2-D Standard |
| Wiring Gauge | 23 AWG |
| Sheath Diameter | 6.3 ± 0.3 mm |
| Jack Insulation resistance | Min. 500 MΩ @ 100 VDC |
| IDC contact resistance | Max. 2.5 mΩ |
| Cable Insulation resistance | Min. 150 MΩ /Km |
| Conductor resistance | Max 9.38Ω / 100m @ 20⁰C |
| Resistance unbalance | Max. 2% |
| Capacitance unbalance | Max. 160 pF/100 m |
| Mutual capacitance | Max 5600 pF/100 m |
| Storage Temperature | -40⁰C ± 70⁰C |
| Operating Temperature | -10⁰C ± 60⁰C |
