Universal Support Frames – Model 01

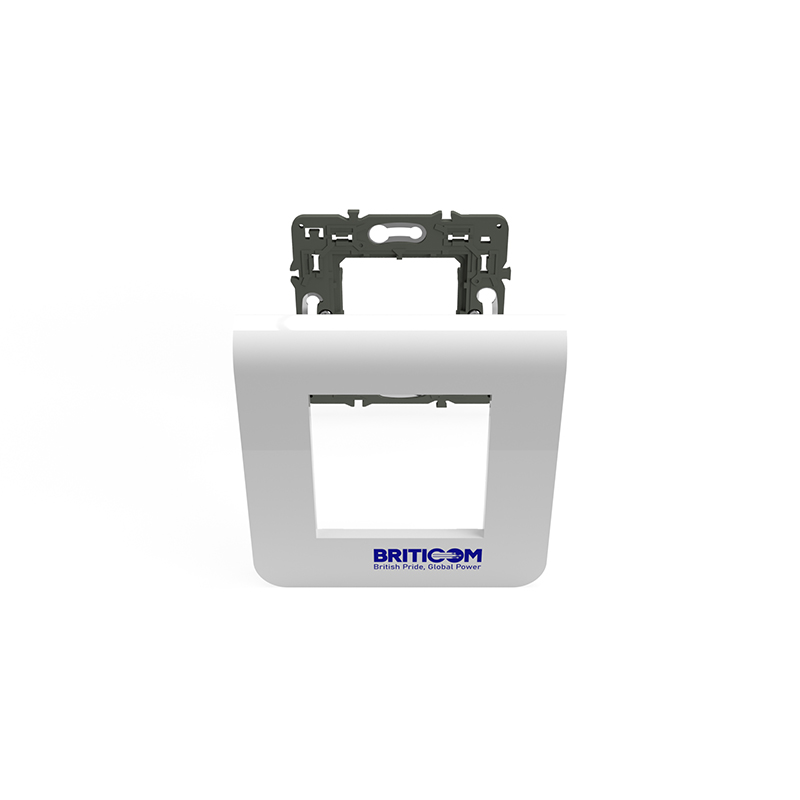

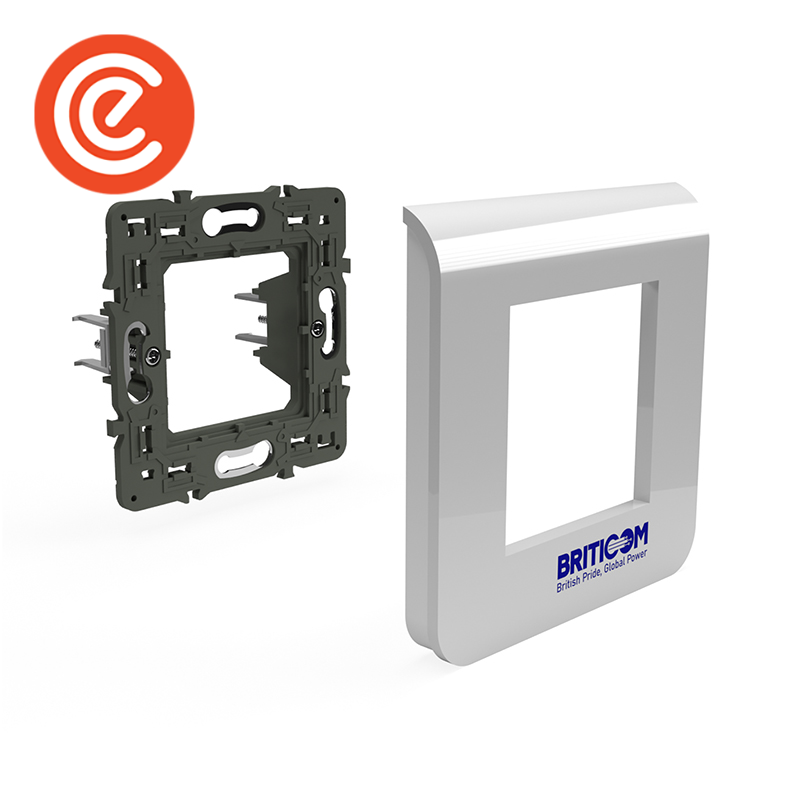

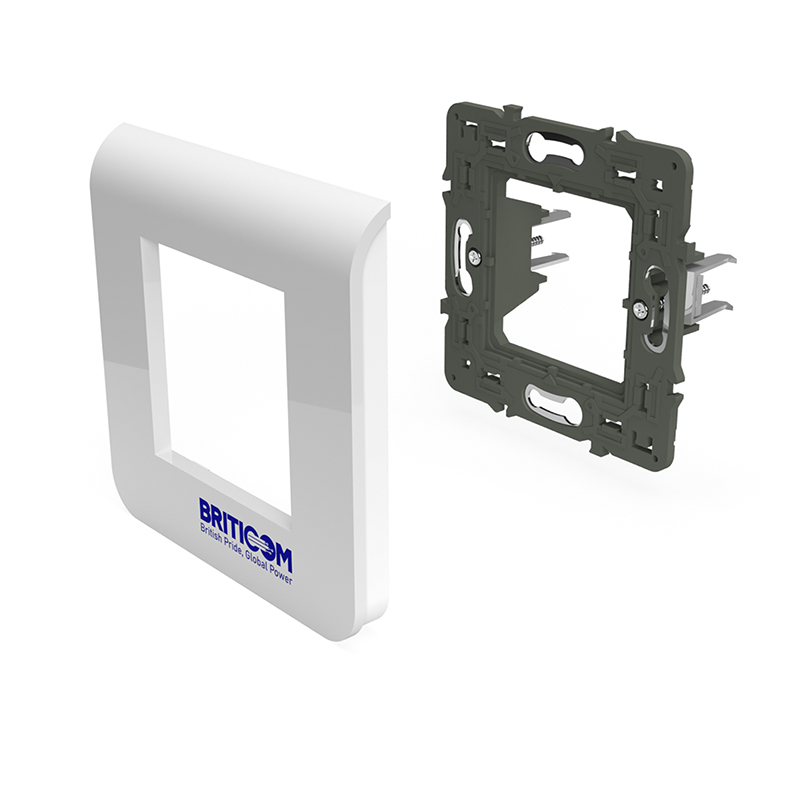

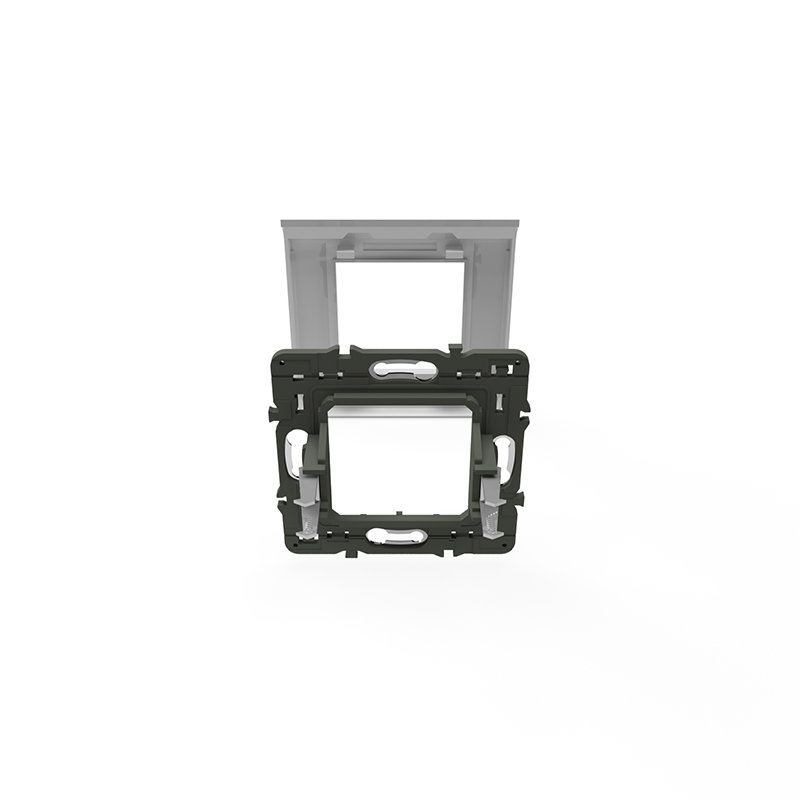

Briticom® Universal support frames can be attached to any type of support: plasterboard, brick, gypsum and so on. Universal metal support frames for mounting KSJ module mechanisms. Products delivered with removable spacers. Fixing with screws. Fixing with claws.

This product is currently out of stock and unavailable.

Example PN :EUFEMFP80X80W-E Category:
  • 1-gang – 2 modules
  • Universal support frame for mounting on any type of screw box.
  • Can be mounted in multiple positions by combination in vertical and horizontal.
  • Breakable support allowing adaptation on boxes with 57 mm center distance.
  • Plasterboard
  • Plywood
  • Sheet steel
  • Brick
  • LAN installations
Width 74 mm

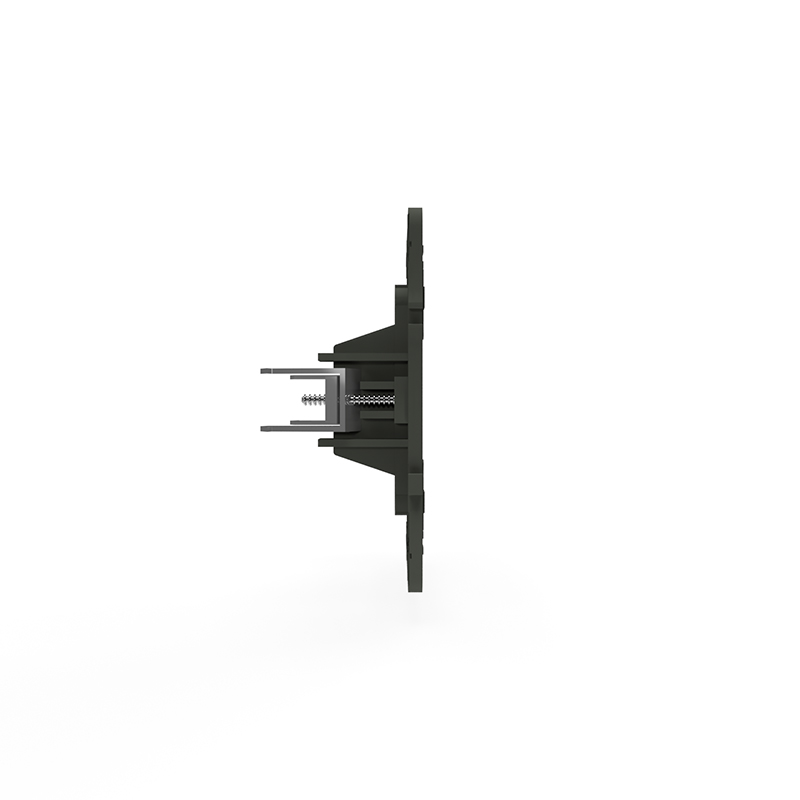

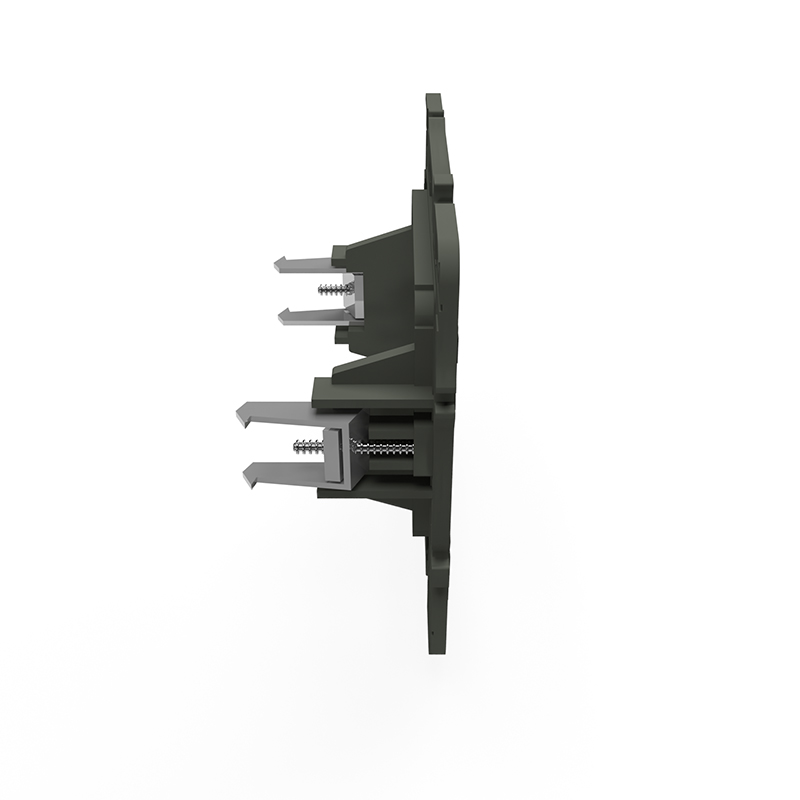

Mounting method  Mounting with claw
Height  70.9 mm
Mounting method of the module inserts Front side
Mounting direction  Horizontal and vertical
Model Flush-mounted
Material Metal
Surface protection  Galvanic/electrolytic zinc plated
With screws  No
Flush-mounted installation  Yes

DOWNLOAD DATASHEET
