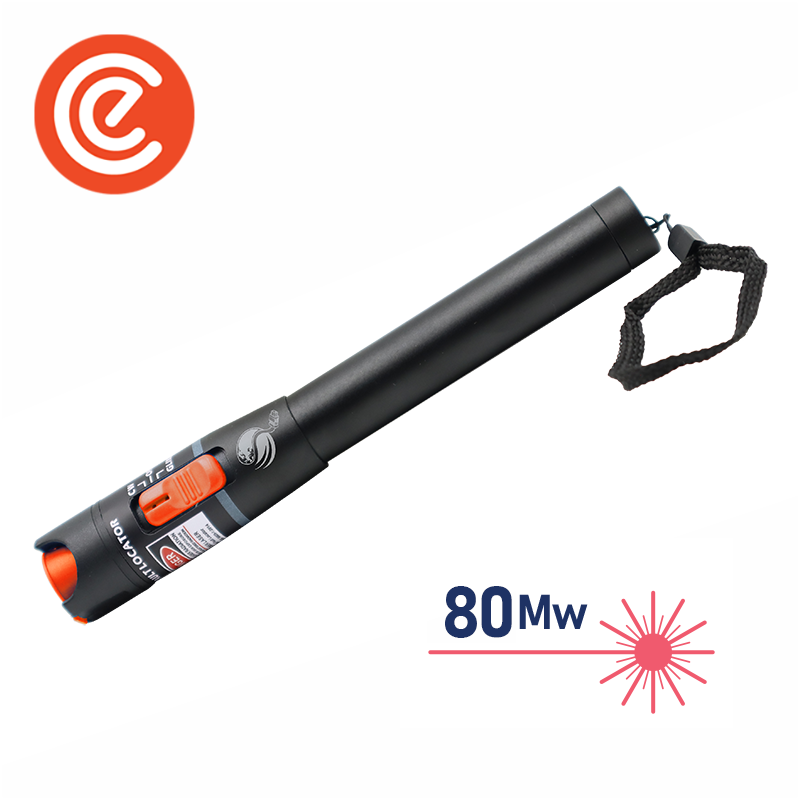

The Briticom® Visual Fault Locator 80Mw (VFL) is an essential tool for any engineer or technician. This allows quick and easy detection of faults in fibre installations, such as breaks or faulty connectors, by pinpointing the location of the signal loss. Therefore, problems can be diagnosed and fixed efficiently. The VFL can also be used for end to end continuity tests and perform fibre identification.
Already bought this product from us? Share your experience on LinkedIn
- Quick & easy location of damage in fibres
- Continuous & flashing illumination models
- Designed for demanding field use
- Long-lasting battery life
- Protective rubber end cap
- Soft-sided carry case with belt loop
- One-year warranty
Visual Fault Locator 30Mw
| Wavelength | 650nm | |||
| Emitter Type | FP-LD source | |||
| Output Power | 80mW max | |||
| Distance Range | 30km (single-mode); >5km (multi-mode) | |||
| Operation Mode | Pulsed & CW | |||
| Power Supply | 2x AA batteries | |||
| Material shell | Allum-alloy | |||
| Connector Type | Universal 2.5mm | |||
| Dimensions (mm) | 175×26(Ø) | |||
| Weight (g) | 173 | |||
