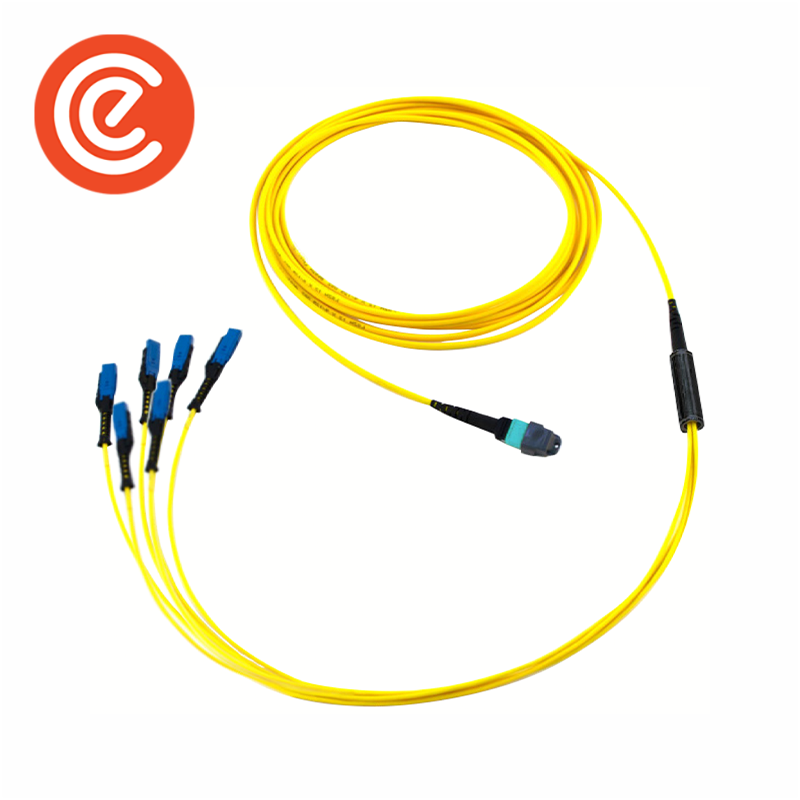

Briticom® 12 Fibre Breakout Harness Cable with MTP-Connectors is an ideal solution for direct connection to equipment from MPO trunks. The MDC connector is a state-of-the-art technology offering up to three times the fibre capacity of the LC duplex adapter. Its low profile design means an increased fibre density in standard patch panels suitable for LC Duplex adapters.
Already bought this product from us? Share your experience on LinkedIn.
- Fully compatible with other MTP based fibre system
- Easy installation
- No specialist tools or equipment required
- 100% modular
- Quickly add 12 or 24 MDC fibres to your network at a time
- Small bend radius allows for high-density networking without loss of performance
- Available in different colours
- RoHS compliant materials
- LAN networks
- Data centres
- Telecommunication networks
- Cable trays
12 Fibre Breakout Harness Cable
| Fibre Types | OM3, OM4, OS2 |
| Polarity | C (standard). A and B available |
| Fibre Capacity | 12 or 24 |
| Fibre Construction | Dry loose tube micro cable |
| Outer Diameter | 3.0mm (single sheath), 4.5mm (dual sheath) |
| End 1 | MTP® ELITE 12/24 Fibre Connector |
| End 2 | MDC duplex low loss connector (x6/12) |
| Insertion Loss Across Cable | < 0.35 dB + cable loss |
| Cable Material | LSZH |
| Weight kg/km | 8 (single sheath), 23 (dual sheath) |
| Min Bend Radius | 10 x (outside diameter) |
| Max Crush Resistance | 150 N/dm (single sheath), 300N/dm (dual sheath) |
