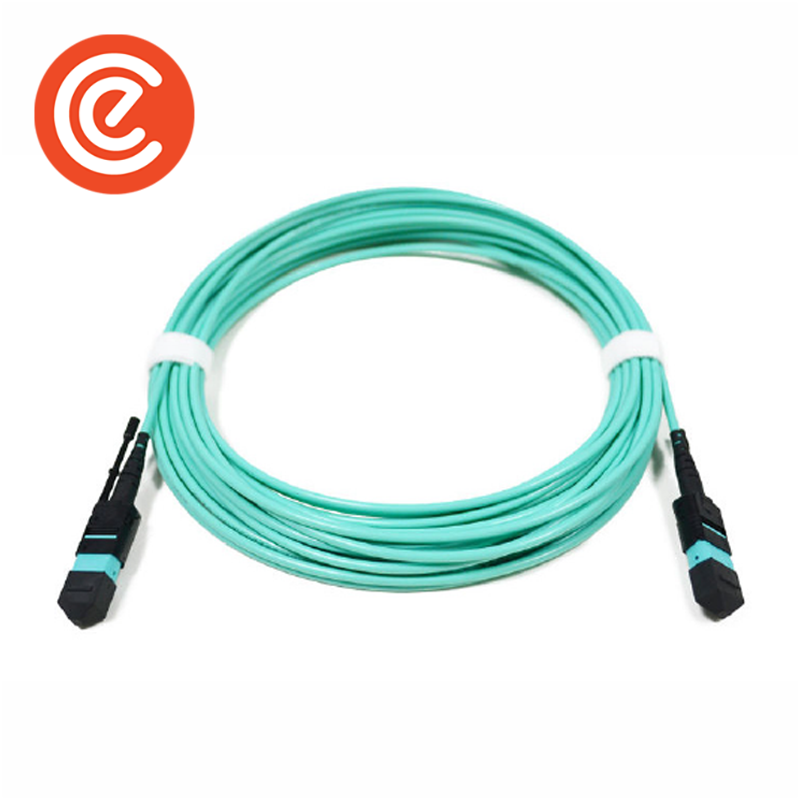

Briticom® MTP-MTP patch cables are used for direct connection between two 100G CFP transceiver ports. With easy installation and no specialist tools or equipment required its ideal for a wide range of telecommunications applications.
Already bought this product from us? Share your experience on LinkedIn
- Fully compatible with other MTP based fibre system
- Easy installation
- No specialist tools or equipment required
- Small bend radius allows for high density networking without loss of performance
- Also available as Trunk Cable
- LAN networks
- Use in data centres
- Telecommunication networks
- Cable trays
| Fibre Types | OM3 | OM4 | OS2 |
| Polarity | SR10 (100GBASE-SR10) | SR10 (100GBASE-SR10) | C (standard). A and B available |
| Fibre Capacity | 24 | 24 | 12 |
| Glass Fibre | Corning Clearcurve® | ||
| Fibre Construction | Dry loose tube micro cable | ||
| Outer Diameter
Single Sheath Dual Sheath |
3.8mm 5.6mm |
3.8mm 5.6mm |
3.0mm 4.5mm |
| End 1 | MTP® ELITE 24 Fibre Connector | MTP® ELITE 24 Fibre Connector | MTP® ELITE 12 Fibre Connector |
| End 2 | MTP® ELITE 24 Fibre Connector | MTP® ELITE 24 Fibre Connector | MTP® ELITE 12 Fibre Connector |
| Insertion Loss Across Cable | < 0.45 dB | < 0.45 dB | < 0.35 dB + cable loss |
| Cable Material | LSZH | ||
| Weight kg/Km
Single Sheath Dual Sheath |
12 28 |
12 28 |
8 23 |
| Min. Bend Radius | 10 x (outside diameter) | ||
| Max. Crush Resistance | 150 N/dm (single sheath), 300N/dm (dual sheath) | ||
