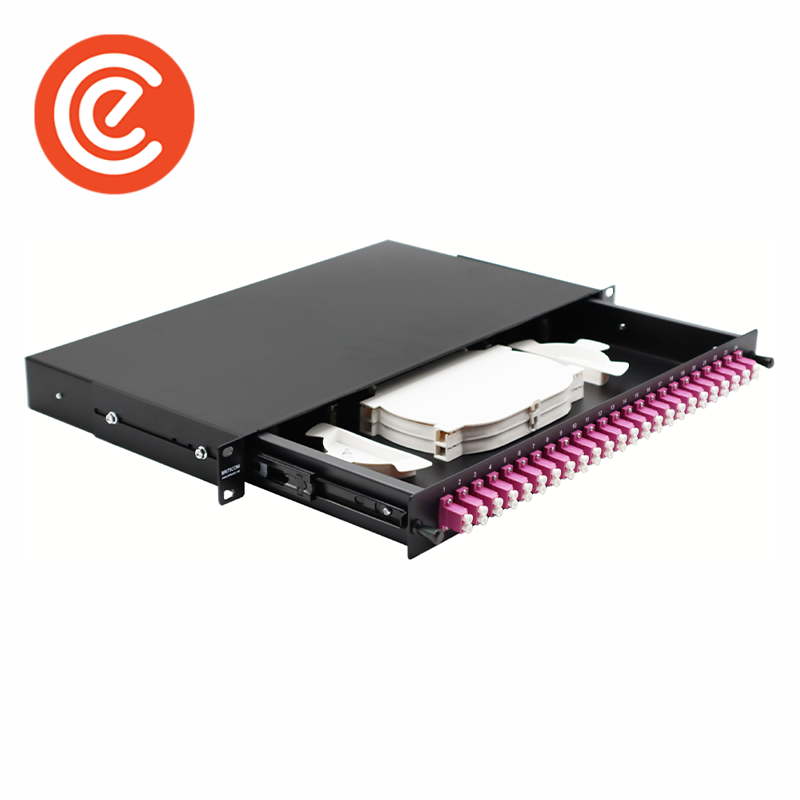

Briticom™ 1U Sliding On Rail Modular Patch Panel 48FO uses various technologies for easy access and organization: these include pivots, sliding on rail and easy sliding. Many of our 1U Sliding Modular Patch Panels are also modular, to further aid the user. This patch panel also comes with built in member tie positions and no exposed screws. We have designed and manufactures a wide range of unique and robust patch panels ranging from 1U to 4U. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn
- All property indexes are in accordance with National YD/T925—1997 Standard
- Cold-rolled steel
- 1-2 cable entries
- 1-24 cores
- Cable entrance is sealed with oil-resistant nitrile butadiene rubber (NBR)
- Increased flexibility
- Overlapping fibre-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe
- Data and server racks
- FTTx
- Telecom
| External Size (L × W × H) | 430 x 240 x 1U |
| Weight | 3.5kg |
| Optical Fibre Winding Radius | ≥40mm |
| Extra Loss Of Fibre Tray | none |
| Fibre Length Left In Tray | ≥1.6m |
| Fibre Capacity | 48 Cores |
| Lateral Pressure-Resistance | 500N |
| Shock-Resistance | 750N |
