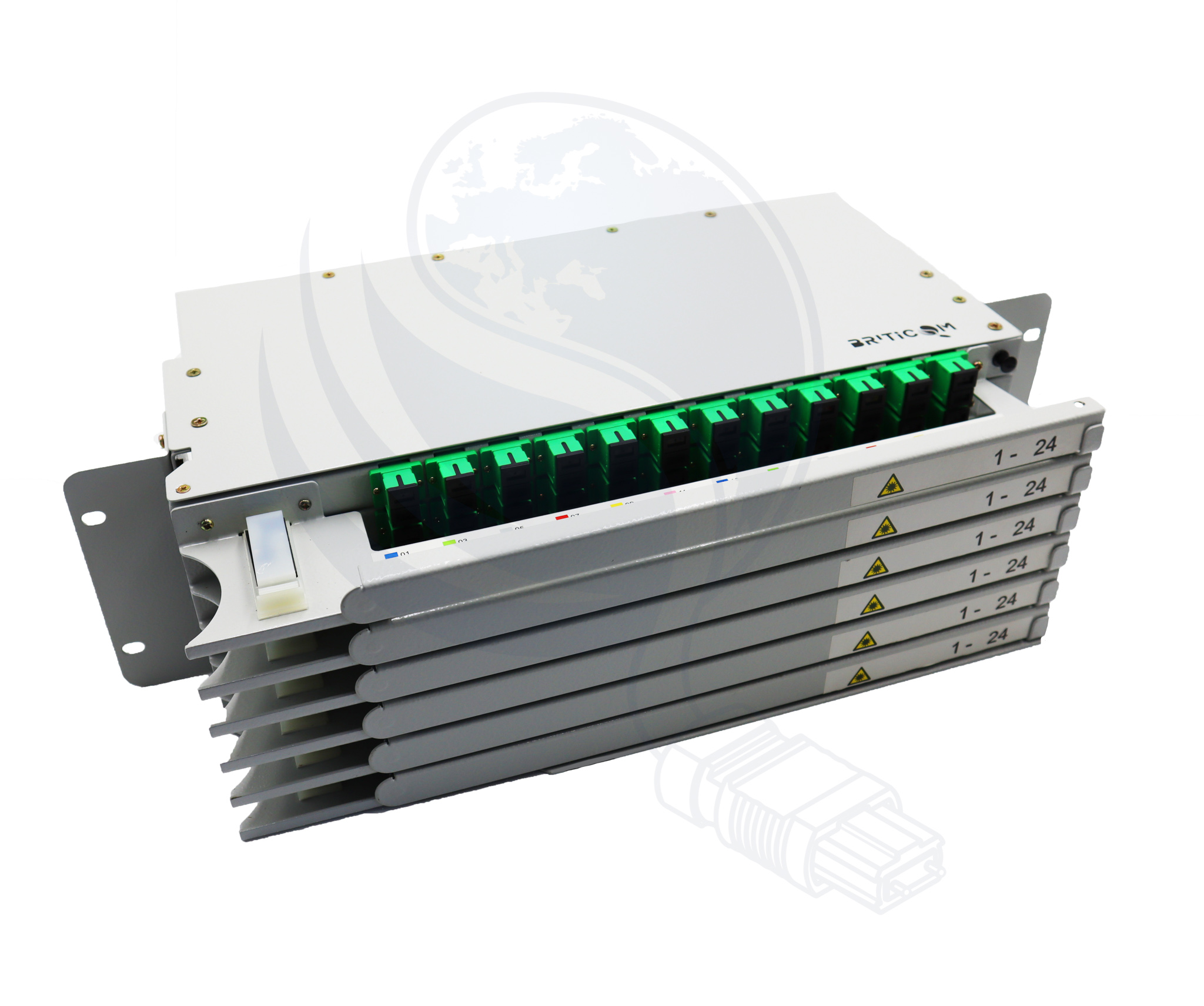

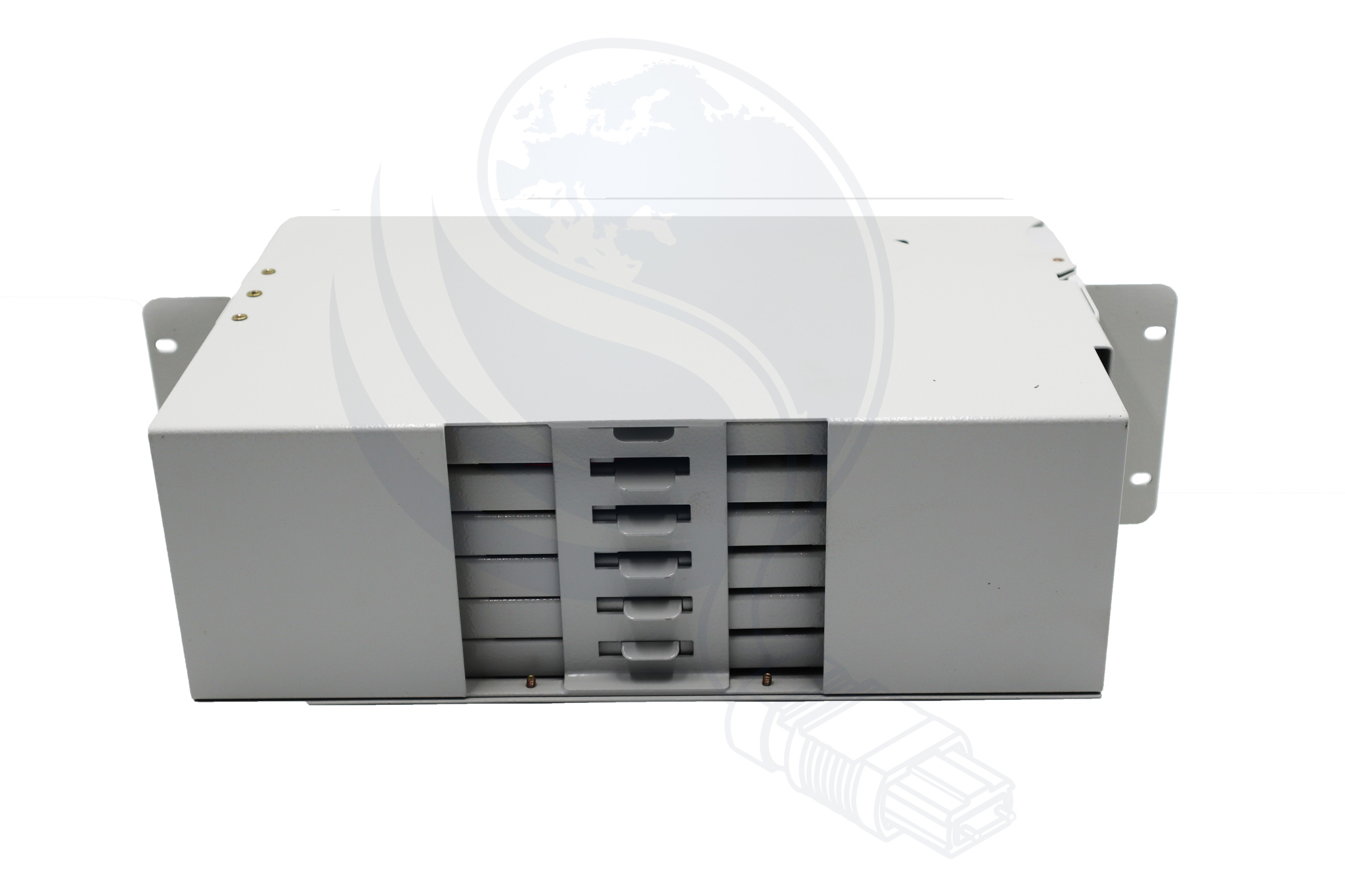

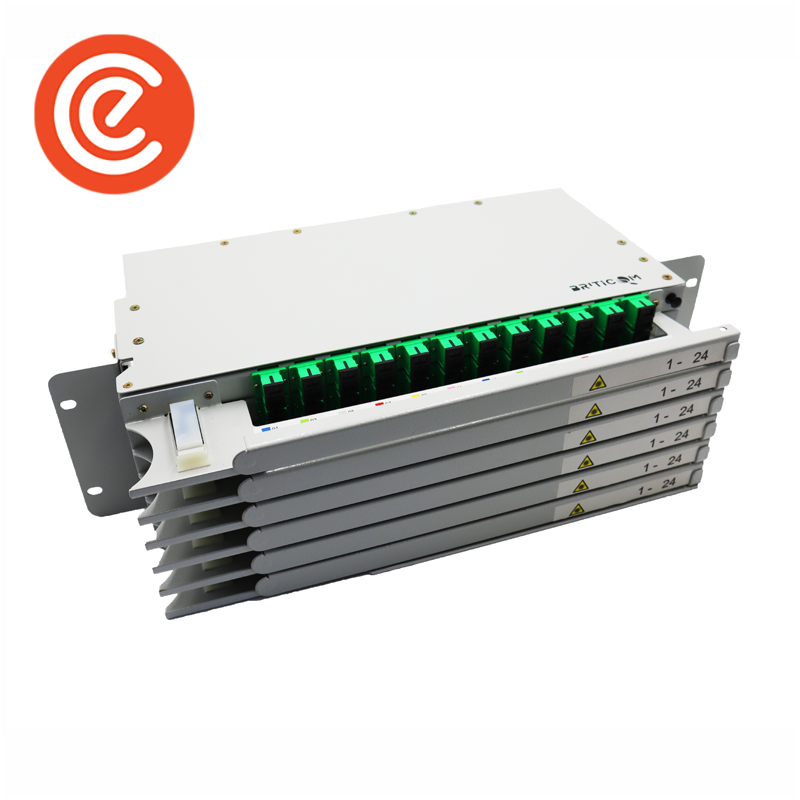

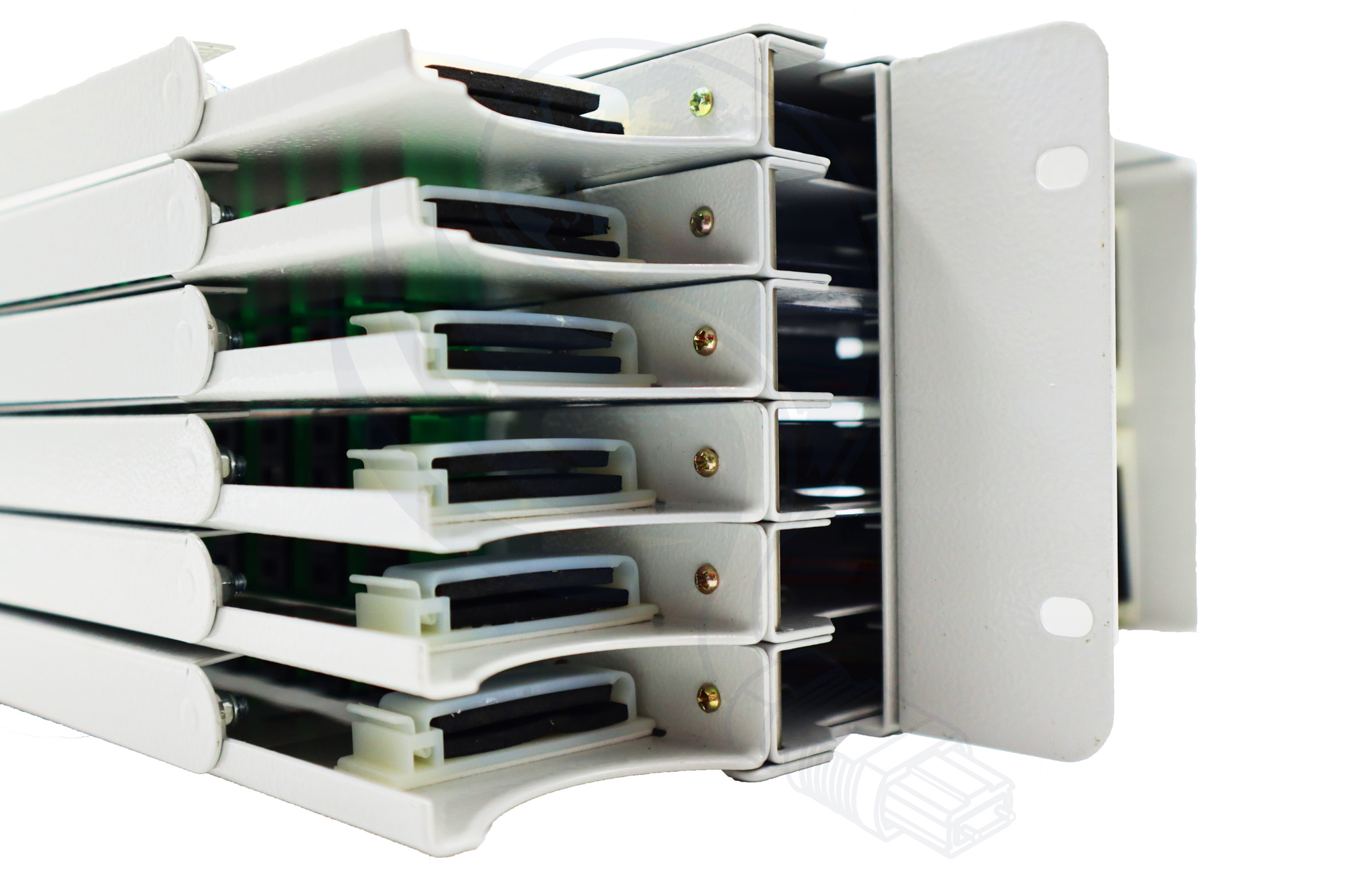

Briticom™ 3U Pivoting Patch Panel uses various technologies for easy access and organization: these include pivots, sliding on rail and easy sliding. Many of our 3U Pivoting Patch Panels are also modular, to further aid the user. This patch panel can be used for standard 19”, 21’’ and 23’’ racks. We have designed and manufactures a wide range of unique and robust patch panels ranging from 1U to 4U. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn
- 1, 2 and 3U available
- 19”, 21” or 23” width

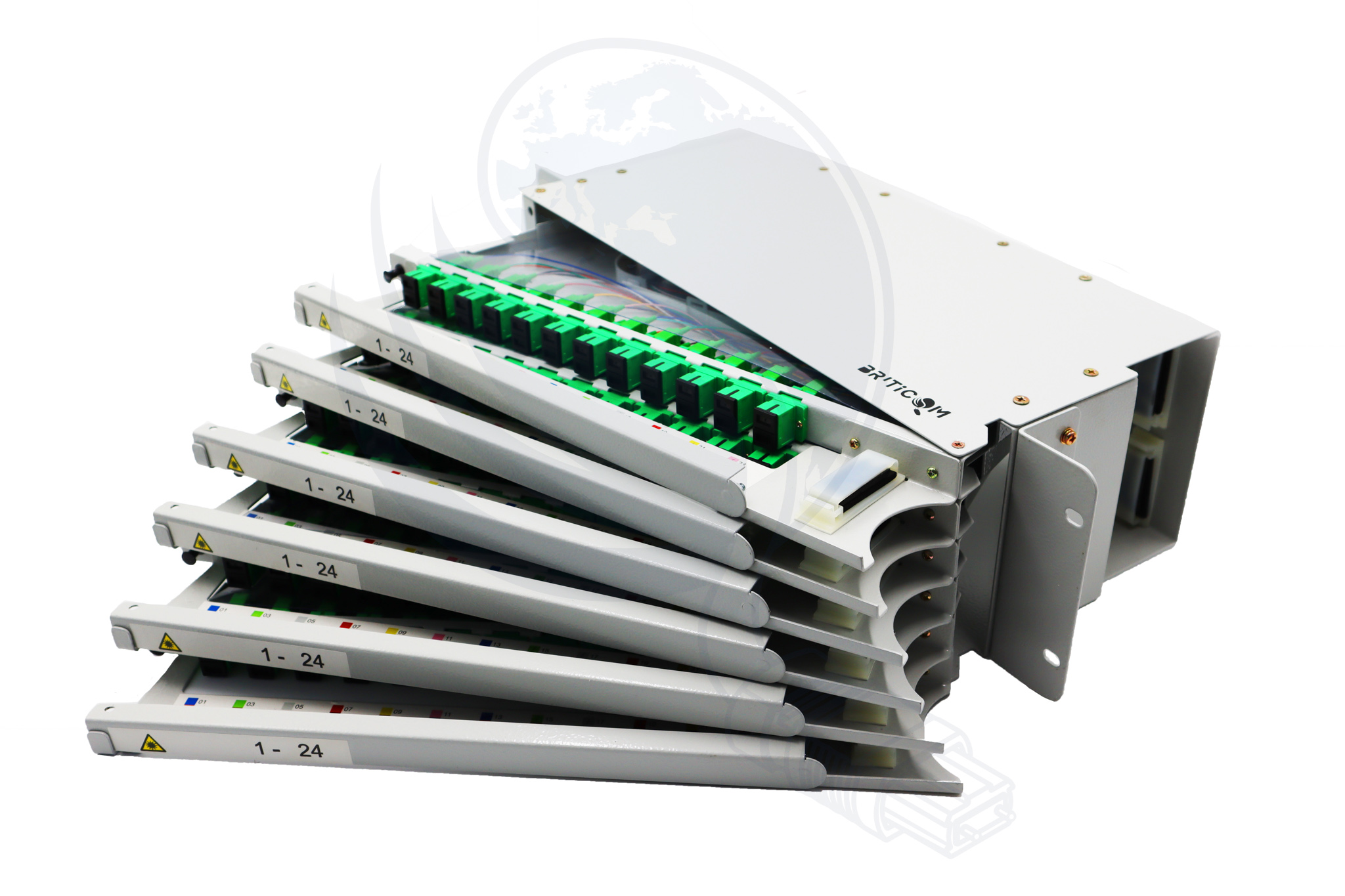

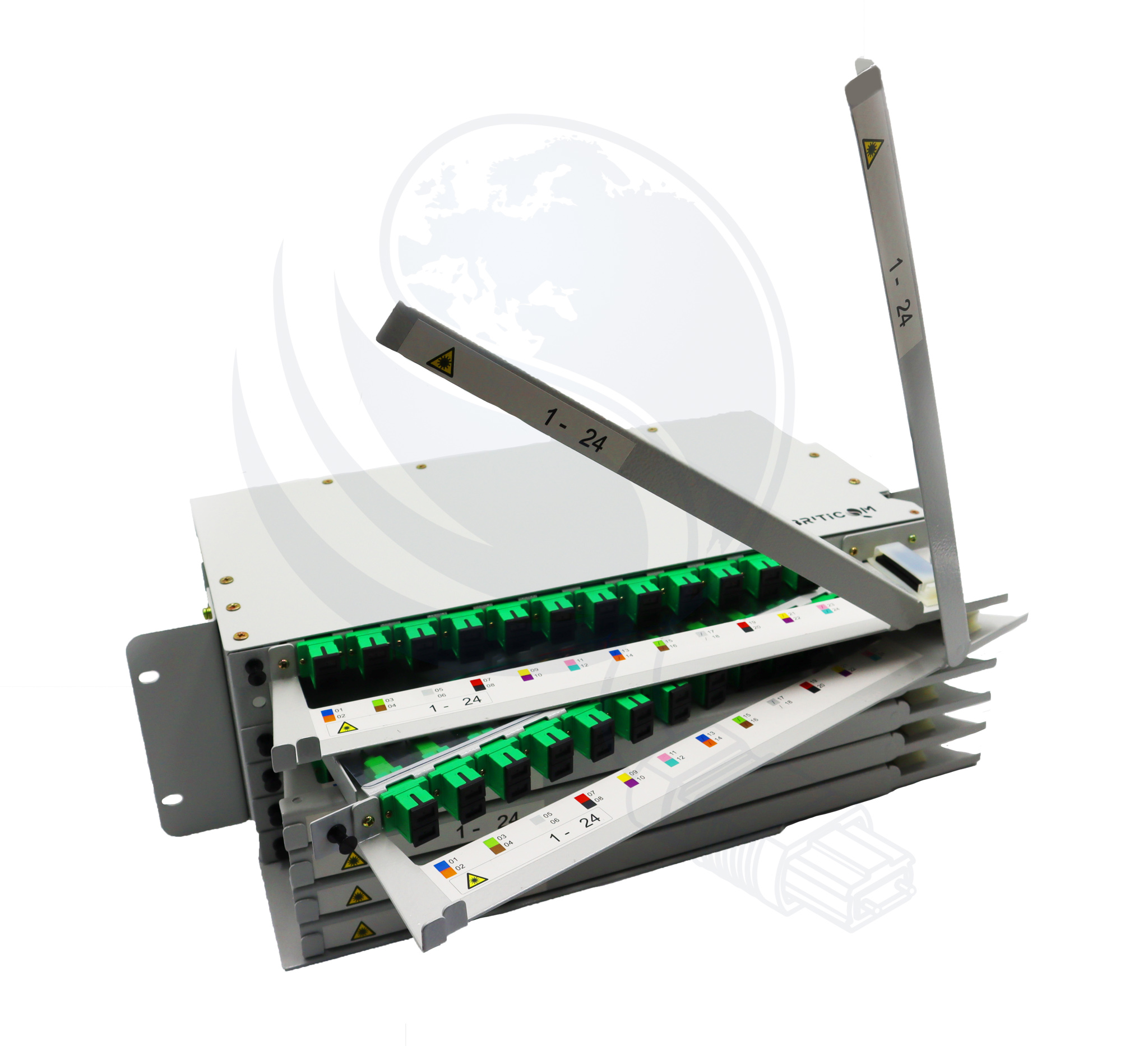

- Easy Operation – Rotate Style
- Total front access for users

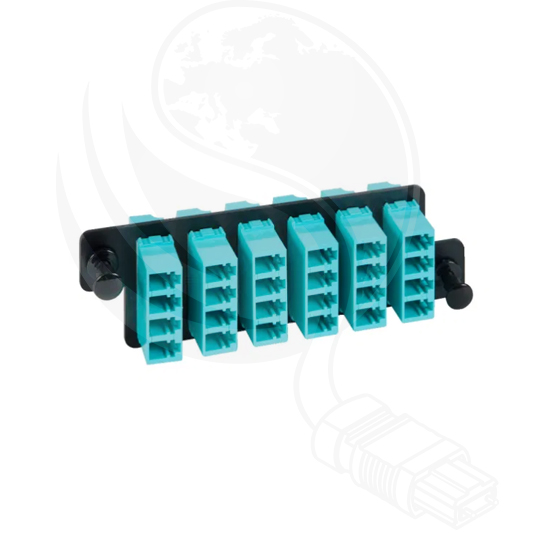

- Adapter Panels for quick and easy adapter installations
- Protected patch panel offers secure environment for adapters, patch cords and pigtails
- Adapter Types – FC SC LC – SX / DX
- Data and server racks
- FTTx
- Telecom
| Adapter Types | FC SC LC – SX / DX | ||
| Height | 3U | ||
| FC | 144 | ||
| SC | 144 | ||
| LC | 288 | ||
| Width | 19”, 21” or 23” | ||
| Depth | 240mm | ||
