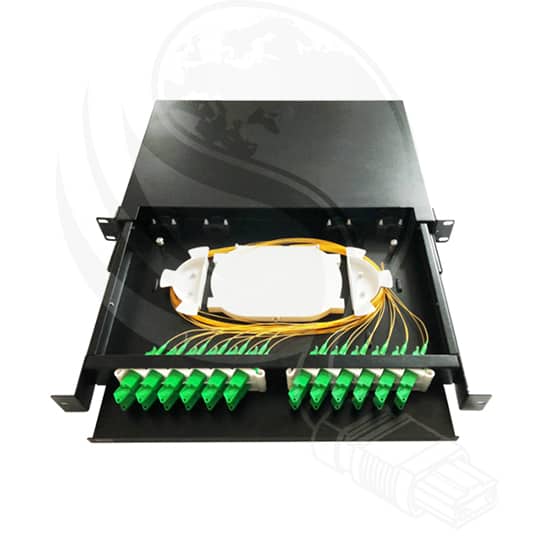

Briticom™ 1U Sliding On Rail Modular Patch Panel uses various technologies for easy access and organization: these include pivots, sliding on rail and easy sliding. Many of our 1U Sliding on Rail Patch Panels are also modular, to further aid the user. This patch panel also comes with built in member tie positions and no exposed screws. We have designed and manufactures a wide range of unique and robust patch panels ranging from 1U to 4U. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn
- Easily slides in and out
- 1U; 48 FO
- 1-2 Cable entries
- Recessed adaptors for improved fibre management
- Built-in strength member tie positions
- Cable entrances sealed with oil resistance NBR to increase the flexibility
- High-quality finish
- Modular design for easy organisation – modular front plates
- Data and server racks
- FTTx
- Telecom
| Adapter Types | E2000, ST, SC, FC, LC |
| Height | 1U |
| Weight (kg) | 1.7 |
| Dimensions | 430 x 300 x 1U |
| Max Capacity | 48 fibres |
| Max Quantity of Splice Tray | 2 pcs; 12 cores |
| Optical Fibre Winding Radius | ≥40mm |
| Fibre Length Left In Tray | ≥1.6m |
| Working Temperature | – 400C ~ + 600C |
| Lateral Pressure-Resistance | 500N |
| Shock-Resistance | 750N |
| Material | Cold-Rolled Steel (Powder Coated) |

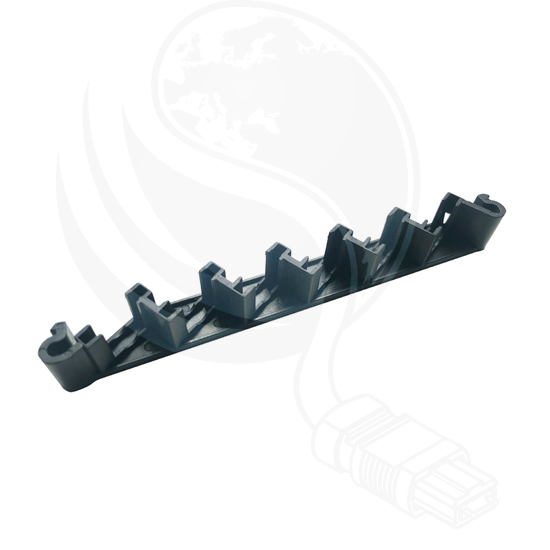

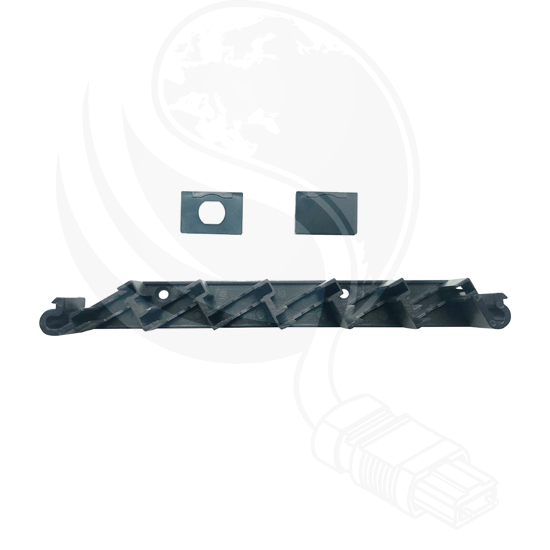

Modular Adapter Plates – Model 09
