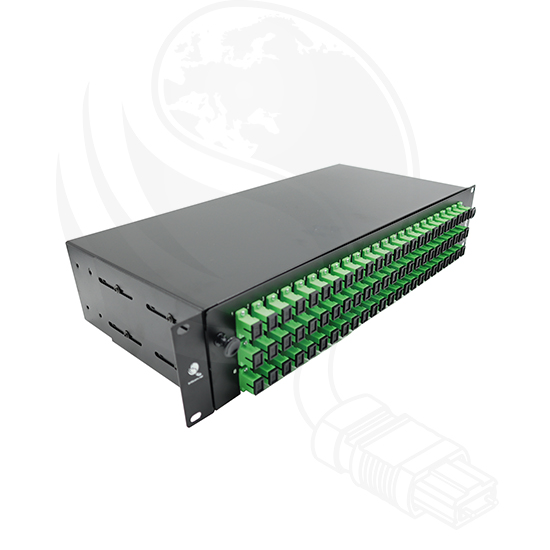

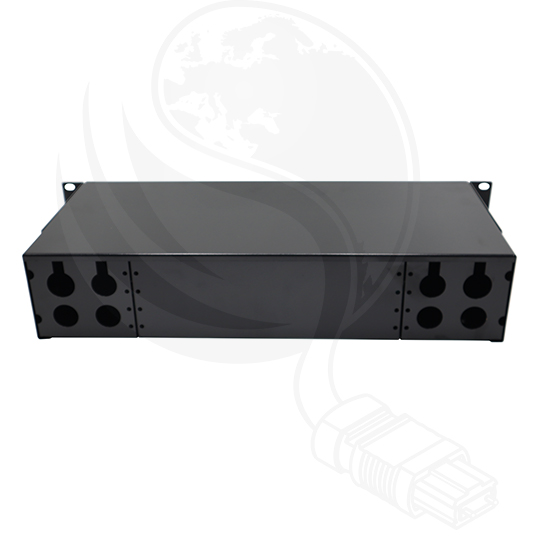

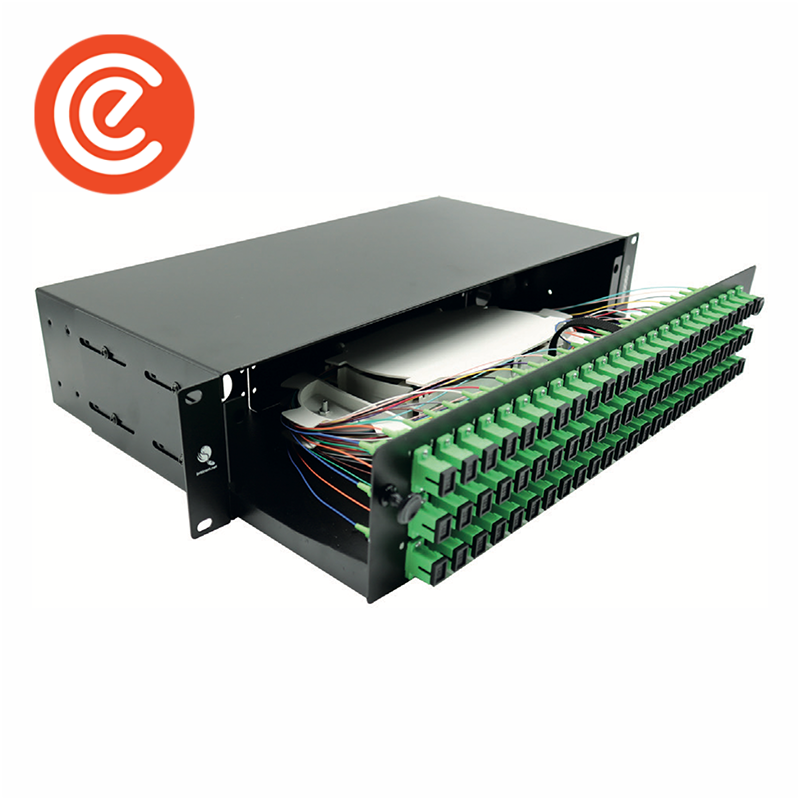

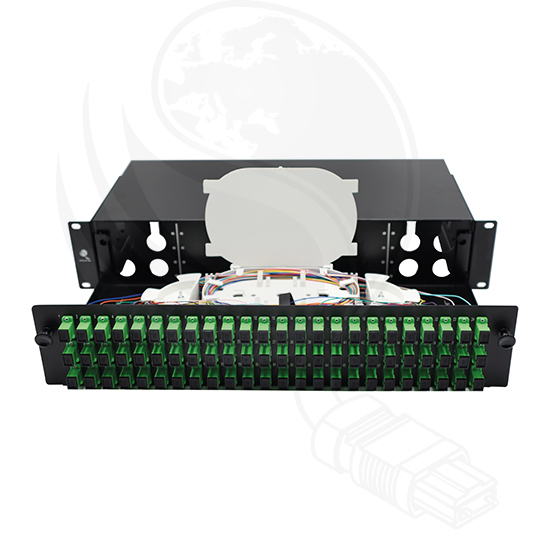

Briticom™ 2U Sliding Patch Panel 144FO uses various technologies for easy access and organization: these include pivots, sliding on rail and easy sliding. Our 2U Sliding Patch Panel 144FO are also modular, to further aid the user. This patch panel has 8 cable entries and individually labelled ports, as well as an easy sliding mechanism to create a user friendly panel. Our unique design includes no exposed screws which offers a high quality finish. We have designed and manufactures a wide range of unique and robust patch panels ranging from 1U to 4U. and this panel can be using with a variety of patch cords and other accessories available from Briticom™. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn
- IEC Standard 60529
- 144 FO
- Easily slides in and out
- 19″ 2U
- No exposed screws
- Individually labelled ports
- 8 cables entries
- High-quality finish
- Data and server racks
- 19’’ installations
- FTTx
- Telecommunications
| Adapter Types | SC Simplex |
| U Size | 2U |
| Width | 483mm |
| Depth | 177mm |
| Material | 1.2mm Cold Rolled Steel |
| Material Coating | Powder |
| Colour | Black |
