Briticom® Micro Rodent-Proof Armour Cat6a UFTP Patch Cord is designed to use in harsh environment where rats and other rodents may potentially damage the cables. It also has anti crush and electrical interference resistance for outdoor use. Designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
Already bought this product from us? Share your experience on LinkedIn
- U/FTP 32 AWG stranded cable
- Waterproof
- UV resistant
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Available in 0.3-25m length (4.9mm OD)
- Steel armoured, PE inner
- Fluke DSX 8000 Channel Tested
- Available in micro or regular
- Natural stainless steel colour
- Data centres
- Smart home
- Outdoors
- Harsh environments

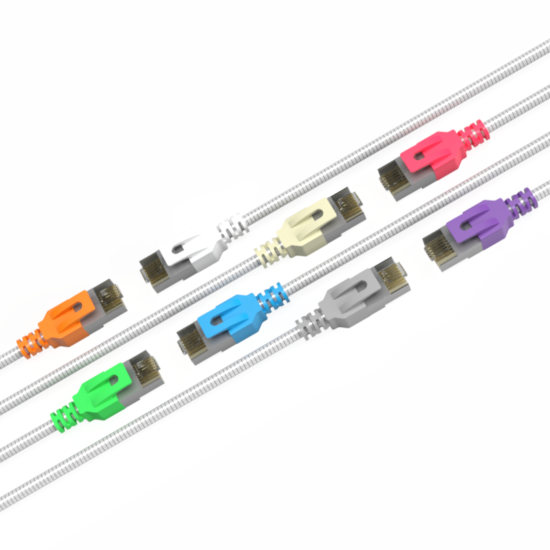

Micro Rodent-Proof Armour Cat6a UFTP Patch Cord
| Outside Diameter | 4.9mm micro / 7.8mm regular |
| Usage | Indoor and outdoor use |
| Bandwidth | 500MHz |
| Sheath | Steel armoured+inner PE |
| PC Rating | 94-V2; 94-V0 |
| Construction | STP |
| AWG | AWG 32 AWG micro / 26 AWG |
| Conductor | Stranded Copper |
| Frequency | 10Gbps |
| Plug | RJ45 Plug |
| Certification | UL, Reach, CE, ISO9001, RoHS |
| Length | 0.3m-25m micro / 0.3m-50m regular |
| Test Limit | Fluke DSX-8000 Channel Test @ 500Mhz |
| Boot Type | Moulded boot |
| Contacts | Brass, 3 prongs, 50u gold plating |
