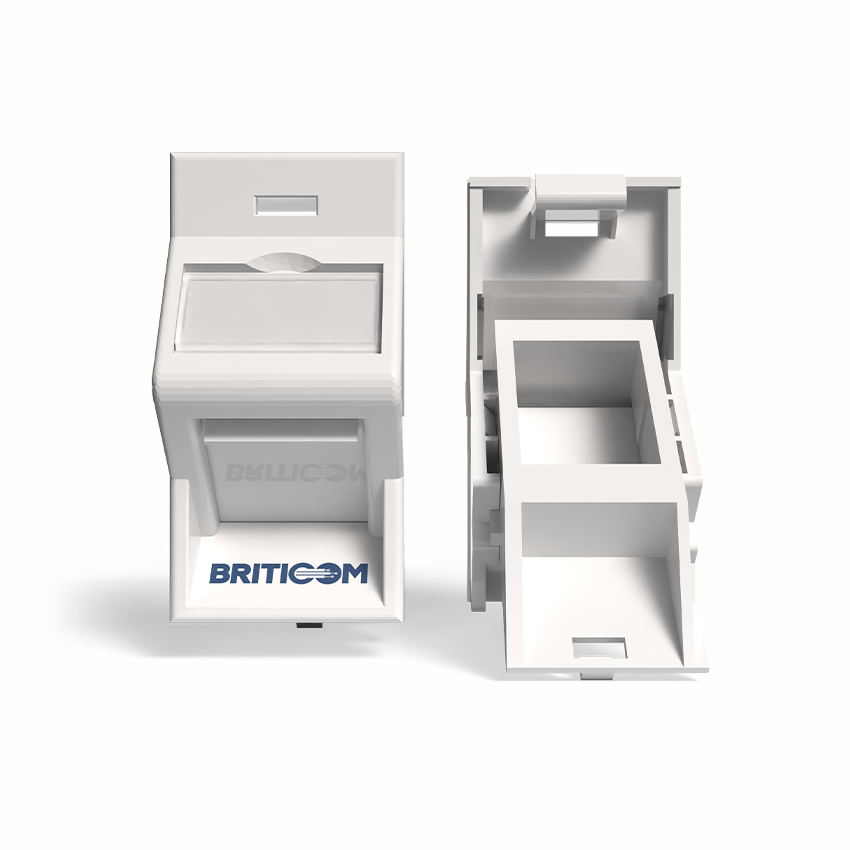

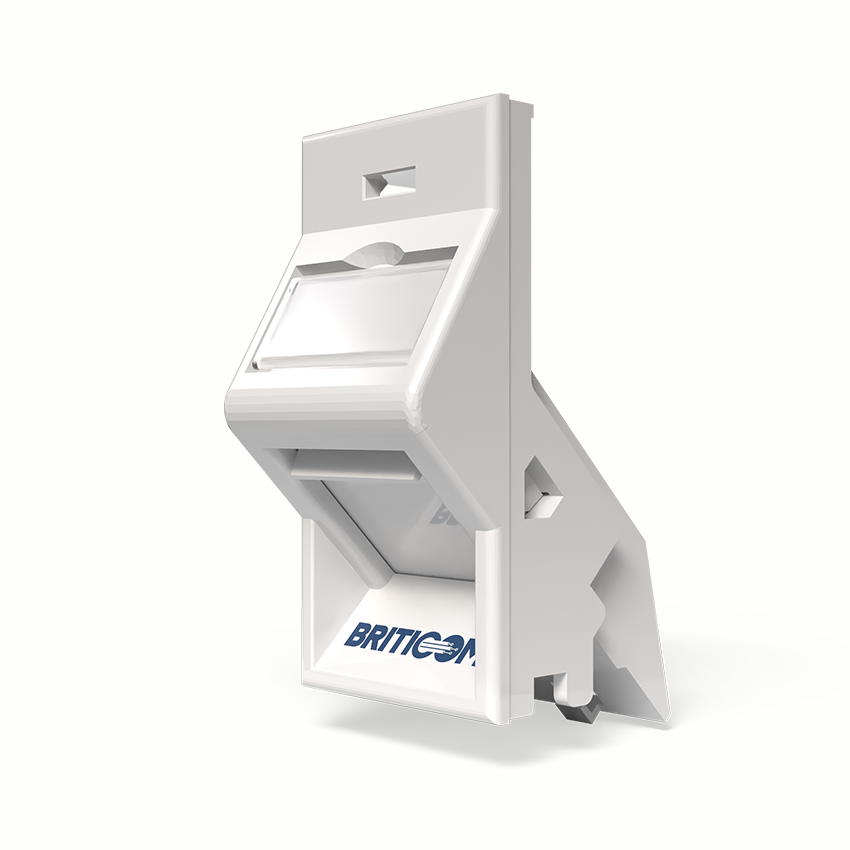

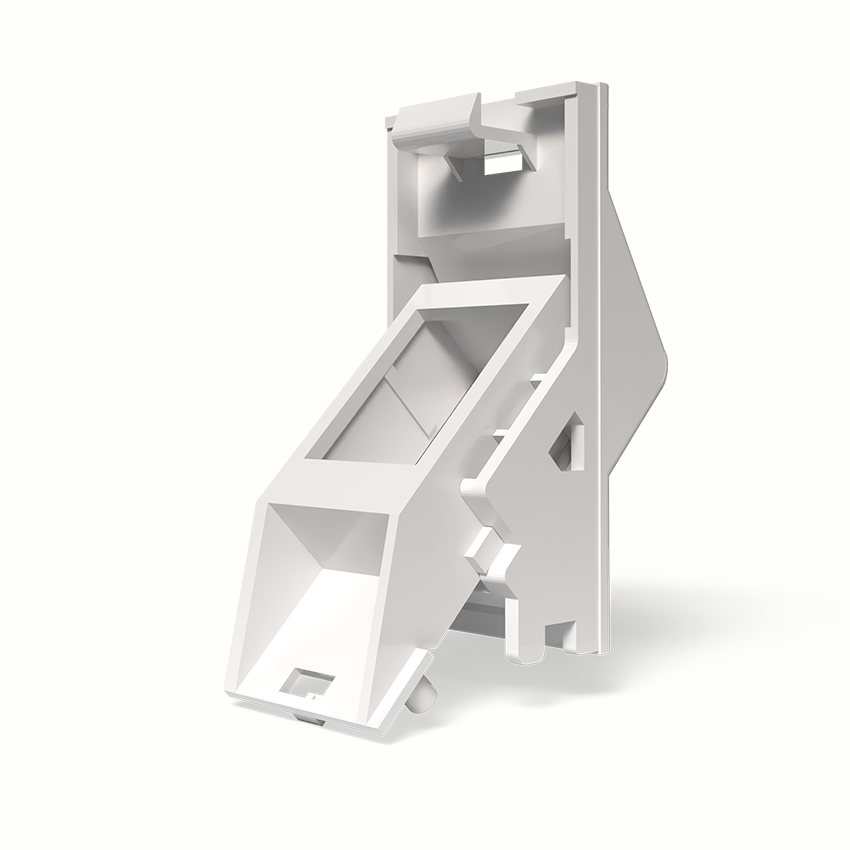

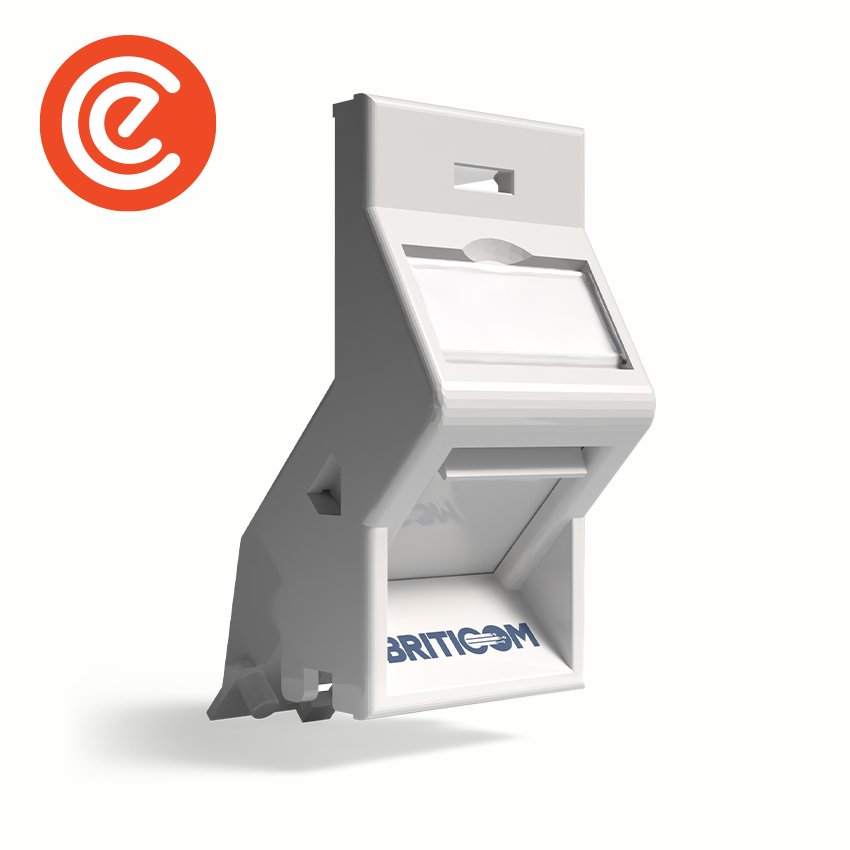

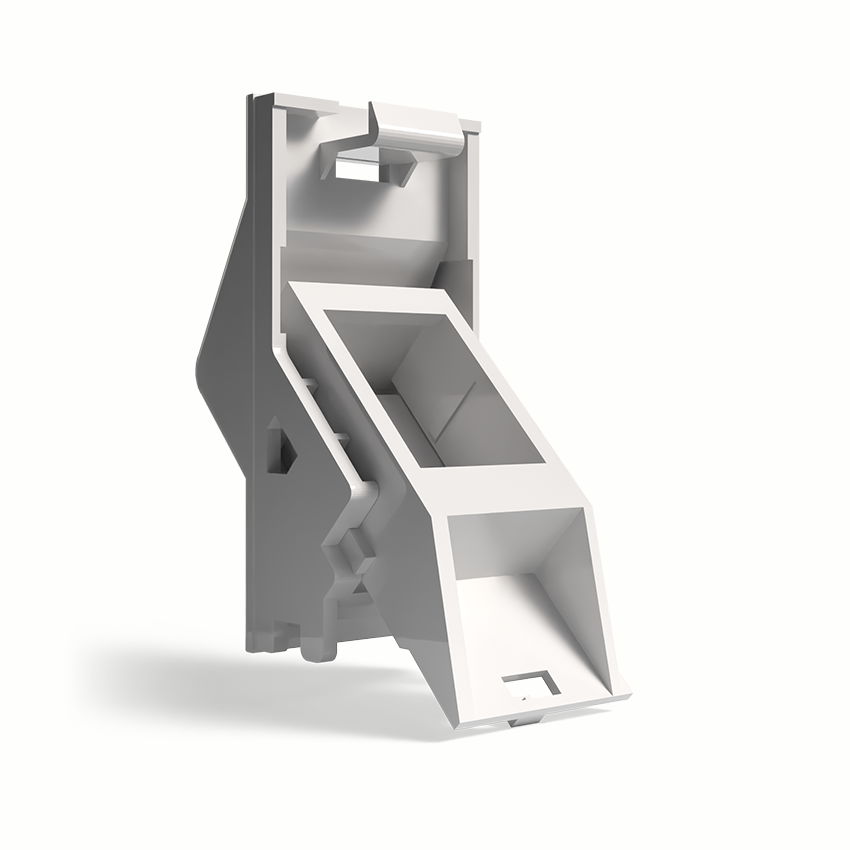

Briticom™ British Angled RJ45 Shuttered Module is a cost-effective modular and essential quality RJ45 port to host keystone jacks or moulded modules from Cat5e to Cat6a. This module can be using in conjunction with Briticom’s™ Copper accessories. With automatic shuttered windows and labels on each port this Angled RJ45 Shuttered Module is ideal for all your copper requirements. This module is made from quality raw materials and gloss white plastic and has a wide range of applications including LAN Connections, Call Centres and Offices. Briticom™ has a wide range of British, EU and US wall outlets available that can be use together with our other copper accessories to create a full copper solution for your project.
Already bought this product from us? Share your experience on LinkedIn
- Angled design enhances space and ensures minimal strain on cables
- Compatible with all Briticom 86×86 or 86×147 faceplates
- Labelling area
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Automatic shutters
- Compact and solid
- LAN connections
- Call centres, offices, banks
| Utilisation | Mounting cover data connector RJ45 |
| Material | Spring: SUS304 SIP Thermoplastic: ABS
UL94V-0 Shutter: ABS UL94V-0 |
| Type of surface | Angled |
| Colour | White |
| Type of fastening | Snap-in |
| Dimensions | 25 x 50 mm |
