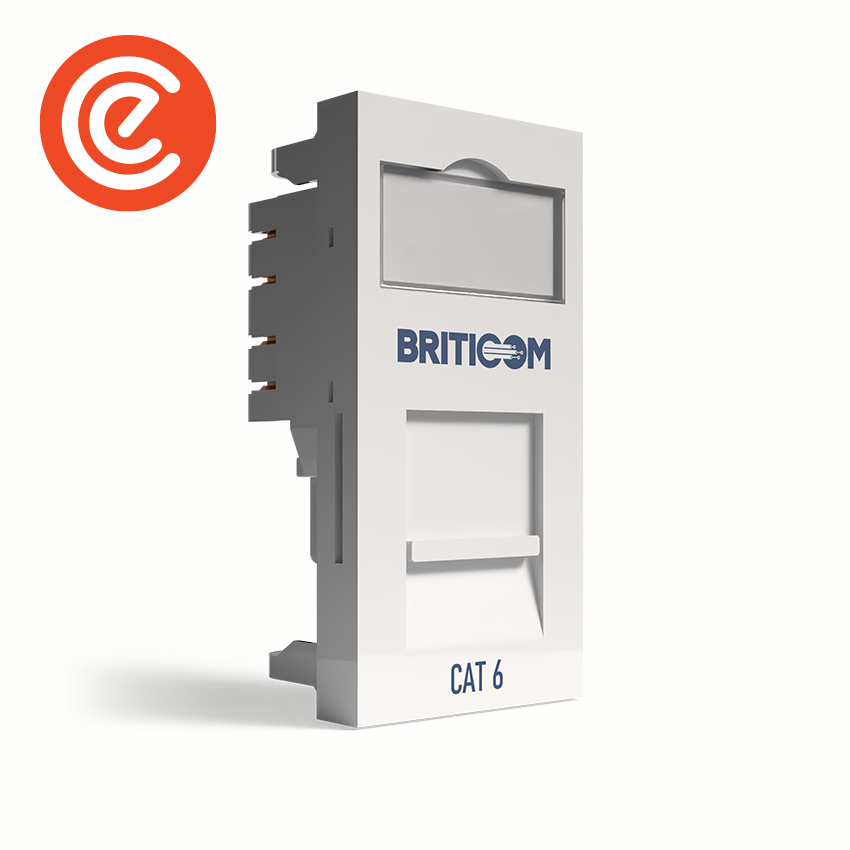

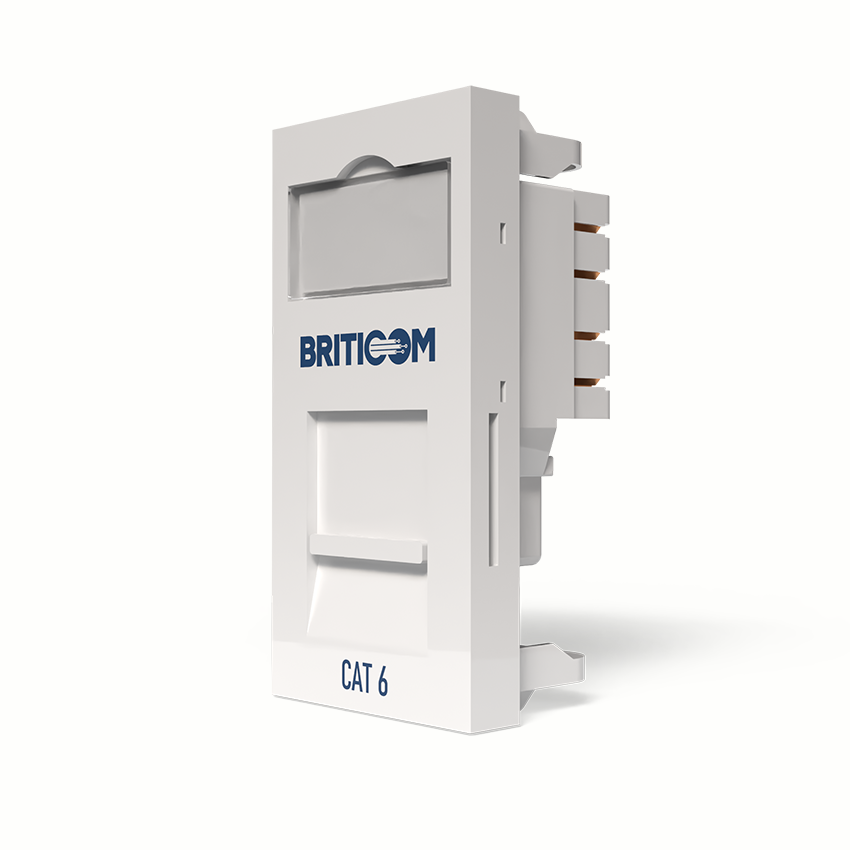

Briticom™ British Flat RJ45 Shuttered Module is a cost-effective modular and essential quality RJ45 port to host keystone jacks or moulded modules from Cat5e to Cat6a. This module can be using in conjunction with Briticom’s™ Copper accessories. With automatic shuttered windows and labels on each port this British Flat Shuttered Module is ideal for all your copper requirements. This module is made from quality raw materials and gloss white plastic and has a wide range of applications including LAN Connections, Call Centres and Offices. Briticom™ has a wide range of British, EU and US wall outlets available that can be use together with our other copper accessories to create a full copper solution for your project.
Already bought this product from us? Share your experience on LinkedIn
- Quality raw materials and gloss white plastic
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Automatic shuttered windows
- Labels on each port
- Provided with a cable tie
- LAN connections
- Call centres, offices, banks
- 1 ~ 10 Gbps

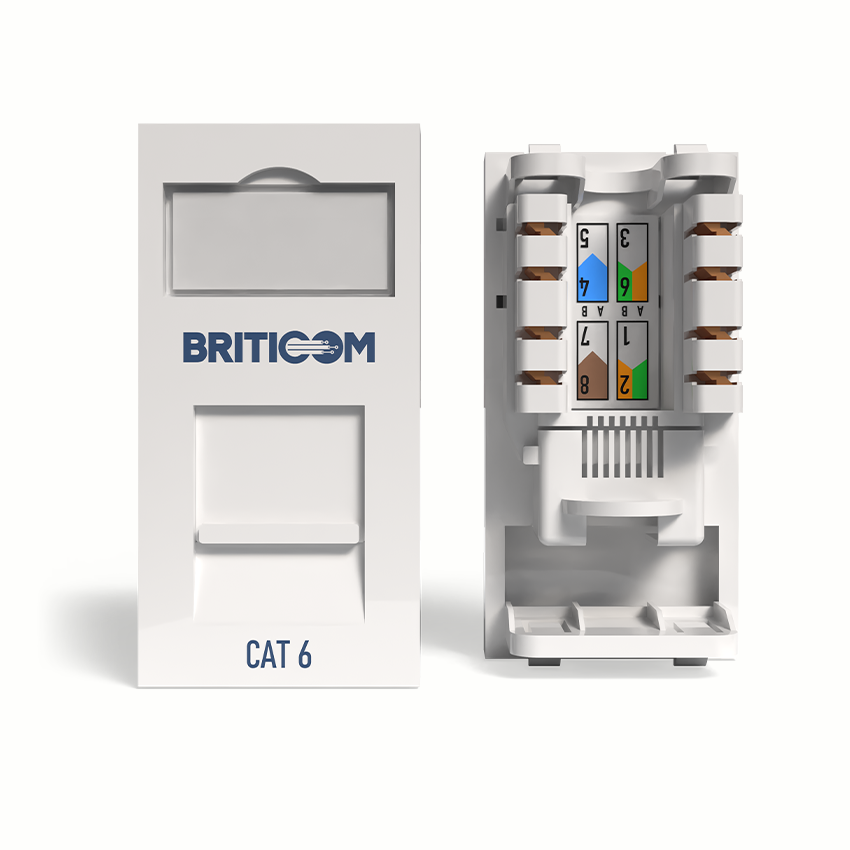

| IDC Labels | Individual colour coded labels to T568B |
| IDC Blocks | 4-way industry standard IDC blocks |
| Conforms to | ANSI/TIA-568-C.2 Standard of 2009 & ANSI/TIA-568.0-D Standard of 2017 Enhanced Category 6 Specification |
| Material | Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardancy |
| Back-box Depth | Minimum 15mm recommended |
| Colour | White |
| White label space | YES |
| Outlet direction | Flat |
| With dust cover | YES |
