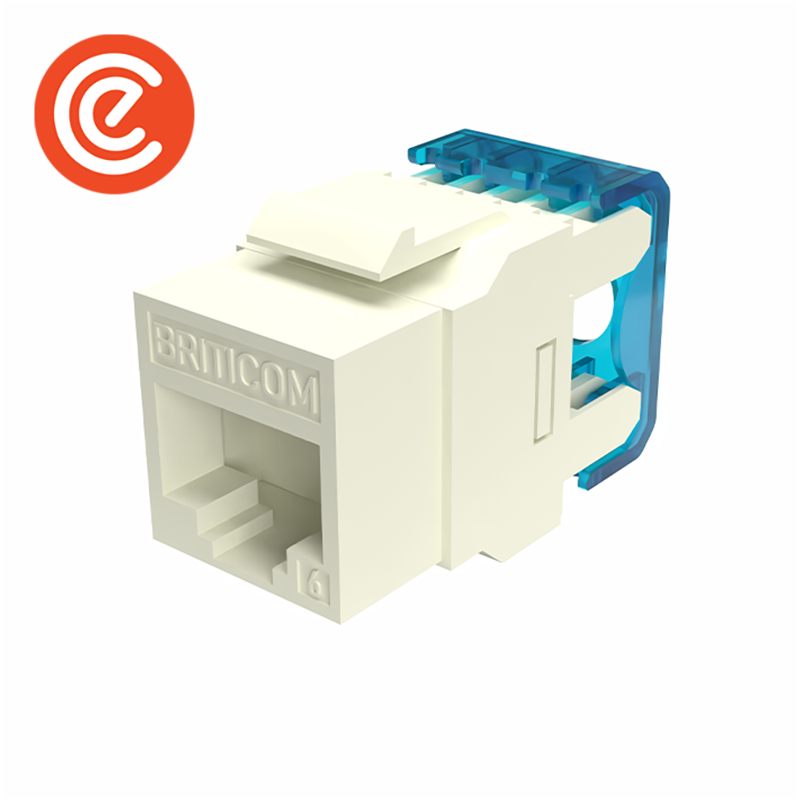

Briticom® Cat6 UTP 180 KSJ are ideal for RJ45 wall faceplates as well as modular empty patch panels and are available in different colours. All our keystone jacks comply with the EIA/TIA standard for Cat 6 including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
Already bought this product from us? Share your experience on LinkedIn
- 3P Certified

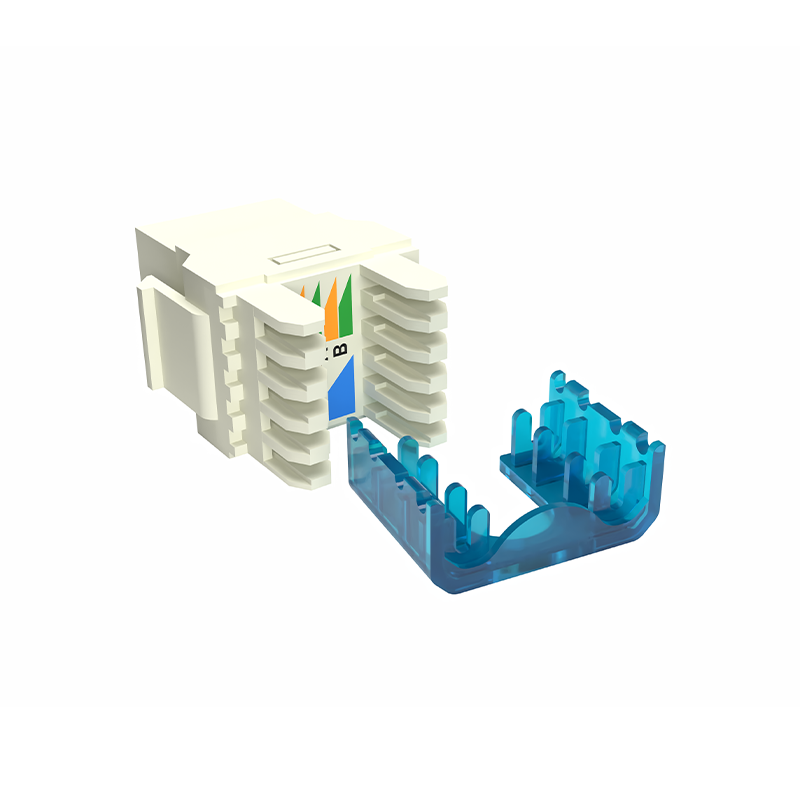

- 180° punch down solid cable
- Meets or exceeds:
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- ANSI/TIA/EIA-568-B.2.10
- ISO/IEC 11801
- Phosphor bronze with 50um gold plated
- Easy wiring fit for 110 punch-down tools
- Termination solid wire 22 ~ 26AWG
- ASDN basic & primary rate Two
- 4/16 Mbps Token Ring (IEEE802.5)
- 100 Mbps TP-PMD & 1Gbps Ethernet
- 100 BASE-T4 (Fast Ethernet)
- 10 BASE-T (IEEE802.3)
- 52/155 Mbps ATM (ATM Forum)
- 100 VG-Any LAN (IEEE802.12)
Cat6 UTP 180 KSJ
| Insertion Life | 800 cycles |
| IDC Life | 250 times (22-26 AWG solid wire) |
| Insertion force | 30N max. (IEC 60603-7-5) |
| Contact Material | Phosphor Bronze, Gold Plating (0.5mm) |
| IDC Material | Phosphor Bronze stamp pin (0.35mm) |
| Housing Material | PC UL94V-0 |
| Plating | Gold 50u”, Silver (1.25um, 5um) |
| Conformance | ISO/IEC 11801:2002, RoHS, ANSI/TIA-568-C.2 Standard of 2009, ANSI/TIA-568.0-D Standard of 2017 |
| Insulation resistance | > 500 MOhm |
| Dielectric strength | 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) |
