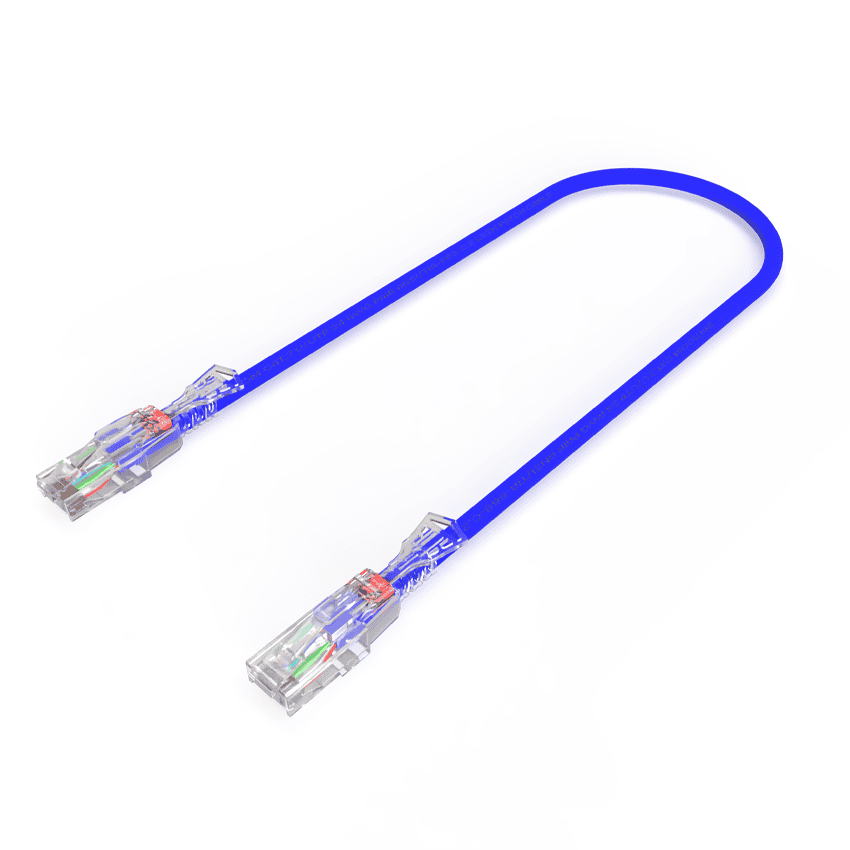

CAT 6 UUTP Lockable & LED Patch Cord Channel Level Testing

Briticom® CAT 6A Unshielded Lockable and LED Patch Cord Channel Level Testing Platinum are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards.
• Provides security on sensitive circuits.
• Prevents theft, downtime and unwanted disconnection
• Disconnection can only be achieved by using the key which is supplied separately to the Patch Leads.
• Traceable Patch Cords are equipped with a self-trace LED device located at the bottom of the plugs
• No need for a battery to operate (Works by plugging the patch cord into tester)
• Same size as a standard plug
• Smarter cable management system, saving time and money.

Example PN UUTPC6AGRY3LS-P Categories: Cat 6, Patch Cords

general information
Additional information

Briticom® Cat6 UUTP Lockable LED Channel Patch Cords are designed and manufactured to meet and exceed the ISO,CENELEC and TIA standards

Already bought this product from us? Share your experience on LinkedIn

All cables 100% testing, any open, miswiring, short & intermittent are not permitted
After crimping the distance between the bottom of contact surface and the top surface of plug are 5.90 ~ 6.146mm
The patch cable must be tested with Component test of fluke DSX-8000 ISO Patch Cord Test
RoHS compliant PVC or PE or LSZH Jacket
Installation Temperature -20°C – +75°C
Minimum Bend Radius 8D

Data centre & Telecommunication networks
LAN Applications
CATV – Cable television, CCTV

Cat6 UUTP Lockable LED Channel Patch Cords

Conductor	CAT 6 UTP 26AWG *4P Stranded Cable Jacket
Insulations	FO-PE (Foamed Polyethylene)
RJ45 connector	50μ nominal gold flash over 60μ nickel undercoat contact pins
Wiring standard	EIA/TIA 586B
Contact resistance	30 mΩ maximum
Dielectric strength	2500 VDC for 3 seconds
Uninsulated resistance	150 MΩ/km minimum
NVP	76%
Flame retardance, Smoke emission	IEC 60332-1, IEC 61034
Typical applications	IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms	ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51

DOWNLOAD DATASHEET

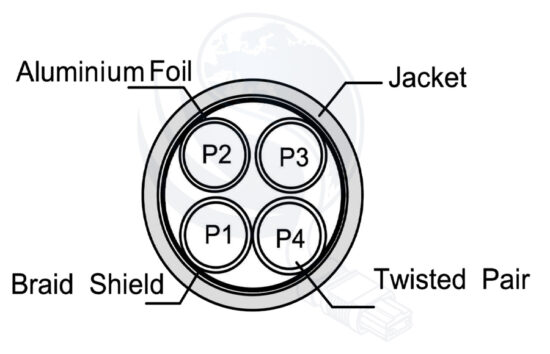

Construction	UUTP, FUTP, SFTP, FFTP, UFTP
Category	C5E, C6, C6A, C7, C7A, C8
Colour	BLK, GRY, WHT, ORN, PRL, GRN
Length (m)	3, 5, 10, 15, 20
Material	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
Detail	F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
Standard	-E Extra Range, -P Platinium
Additional	OD Outdoor, Blank if indoor

CAT 6 UUTP Lockable & LED Patch Cord Channel Level Testing
