Briticom® Cat6 SFTP Solid LAN Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified. This shielded and foiled cable comes with a 25 year warranty and is available in a range of different colours, reel lengths and reeling techniques.
Already bought this product from us? Share your experience on LinkedIn
- 250 Mhz with over 2.5Gbps
- 25 Year Warranty
- Shield & Foiled
- LSZH, PVC, PE jackets
- Available in different colours, reel lengths and reeling techniques
- Telecommunication networks
- Data networks
- CCTV
- CATV (Cable television)
- LAN Applications

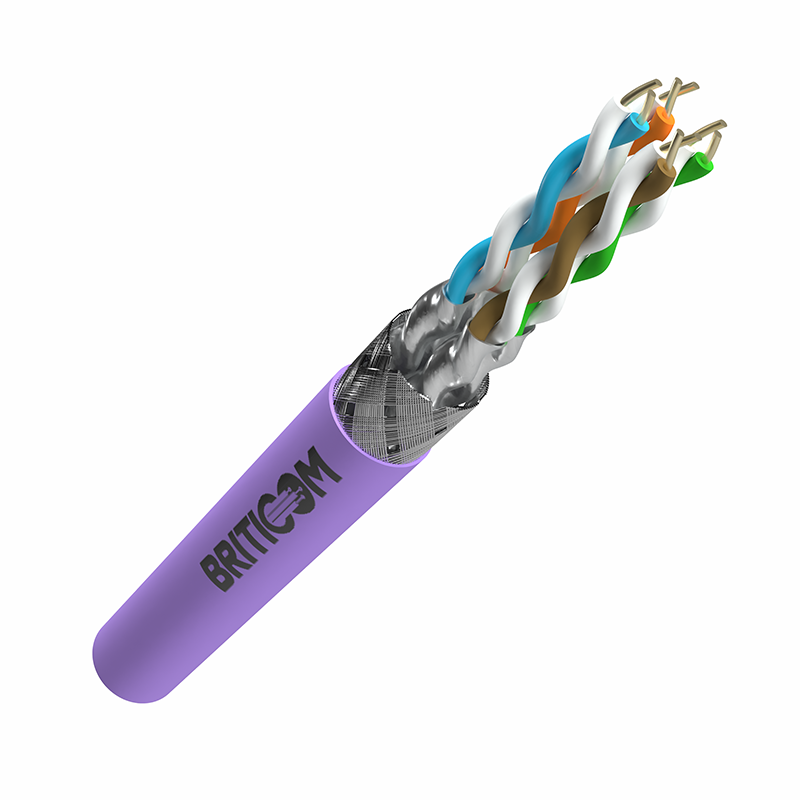

Cat6 SFTP Solid LAN Cable
| American Wire Gauge (AWG) | 23 |
| After Tensile Strength (Mpa) | ≥85% of unaged |
| Minimum Point Thickness (mm) | 0.20 ~ 0.21 |
| Cable Laying Length (±mm) | 142 |
| Jacket | PVC, PE or LSZH |
| Outer Diameter (±0.2mm) | 6.20 |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 |
| 1.0-250.0MHz Impedance (ohms) | 100 +- 15 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 73.2 |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | ≥13.9 |
| Aging Elongation (%) | ≥50% of unaged |
| Aging Condition (oC x hrs) | 100 x 240 |
