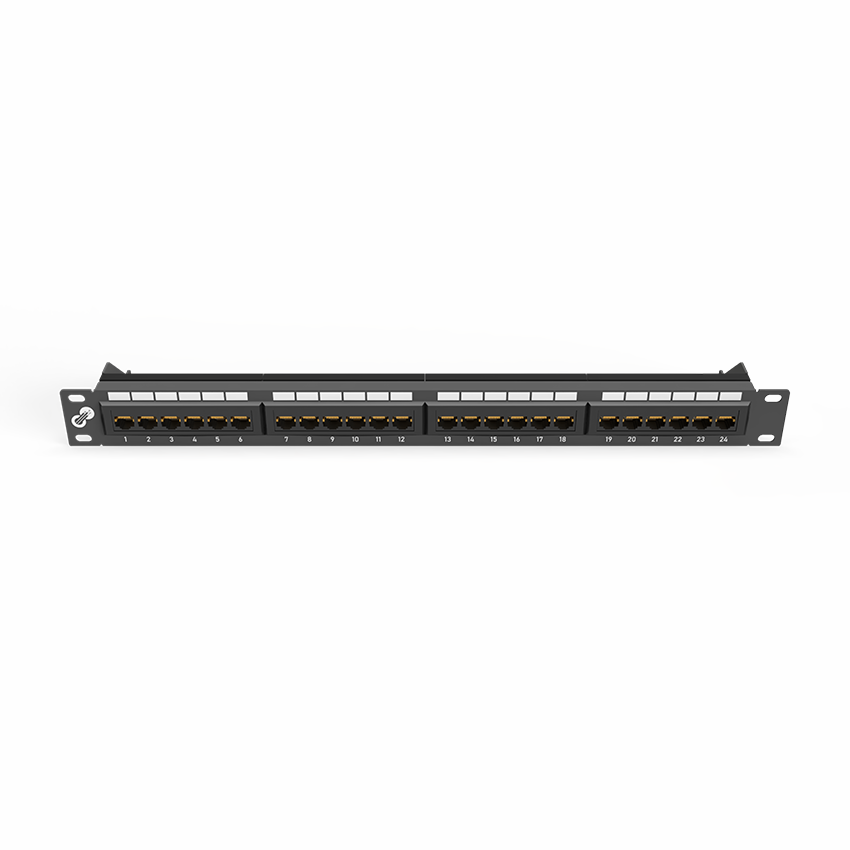

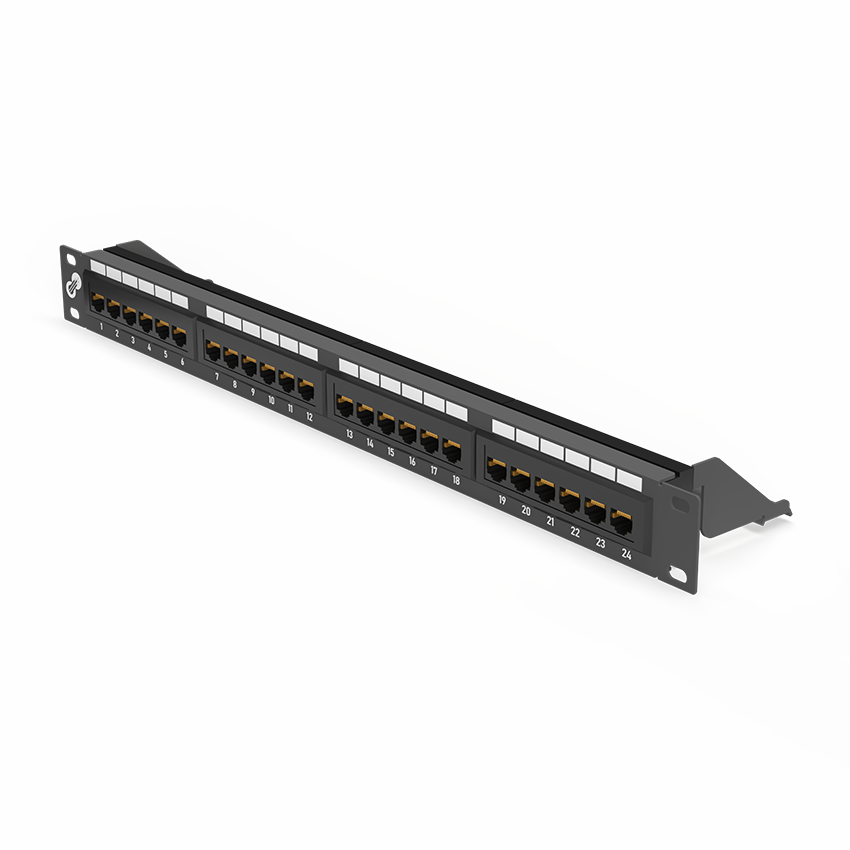

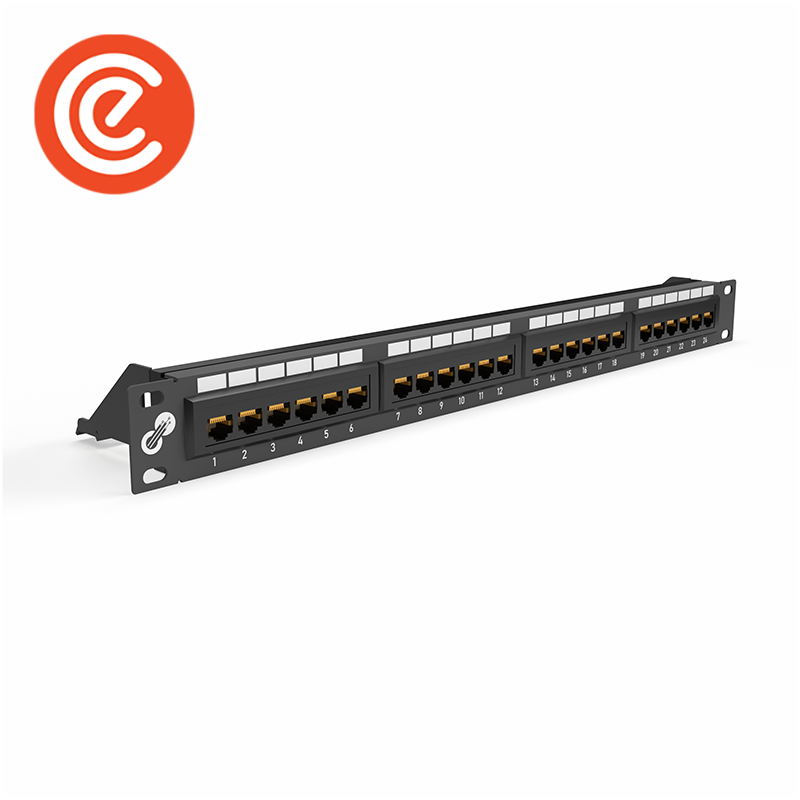

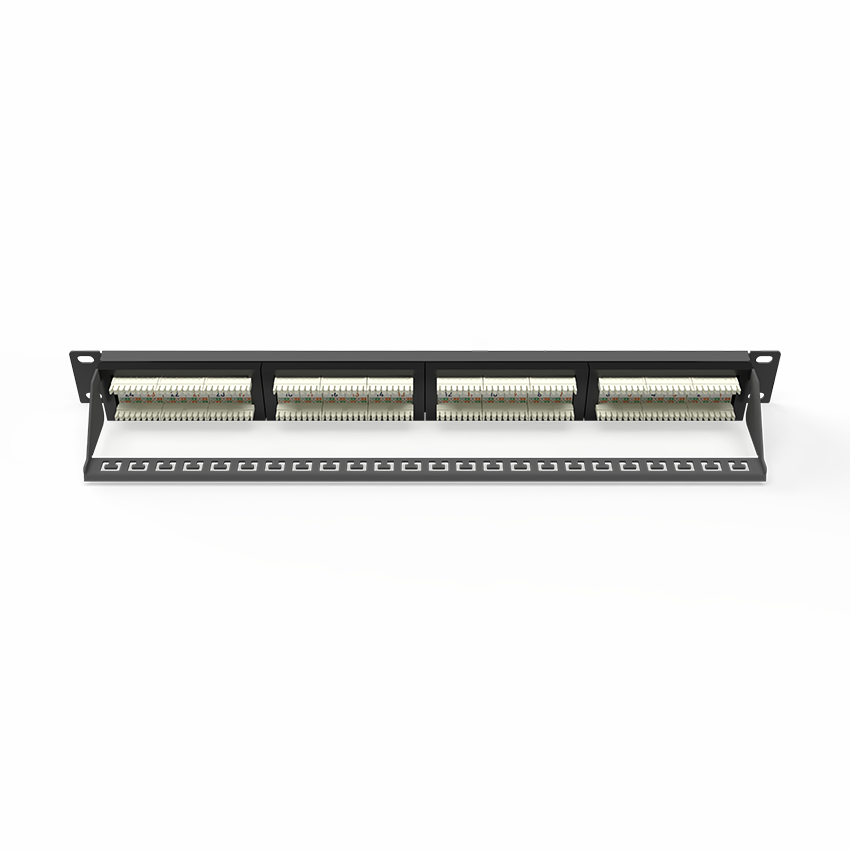

Briticom® Cat6 Patch Panel UTP are 19 inch rack mountable IDC/PCB moulded RJ45 ports patch panels and are available in a choice of port density. All our patch panels comply with the EIA/TIA standard for Cat 6 including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
Already bought this product from us? Share your experience on LinkedIn
- (Delta) Force Technology, ETL and 3P certified
- 24 port Cat 6 patch panel
- Meets or exceeds:
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- ISO/IEC 11801
- Sturdy aluminium plate around jacks
- Phosphor bronze with 50um gold plated
- Easy wiring fit for 110 punch-down tools
- Termination solid wire 22 ~ 26AWG
- Electrostatic corrosion-resistant steel
- ASDN basic and primary rate Two
- 4/16 Mbps Token Ring (IEEE802.5)
- 100 Mbps TP-PMD and 1Gbps Ethernet
- 100 BASE-T4 (Fast Ethernet)
- 10 BASE-T (IEEE802.3)
- 52/155 Mbps ATM (ATM Forum)
- 100 VG-Any LAN (IEEE802.12)
Cat6 Patch Panel UTP
| Insertion Life | 800 cycles |
| IDC Life | 250 times (22-26 AWG solid wire) minimum |
| Plug/Jack Contact Force | 100g minimum using FCC-approved plug |
| Insulation Resistance | 100Mohms minimum |
| Contact Resistance | 7Mohms maximum |
| Dielectric Intensity | AC 1000Vrms, 50Hz or 60Hz in 60s |
| Plating | Gold 50u”, Silver (1.25um, 5um) |
| Modularity | 8-pin, 4-pair |
