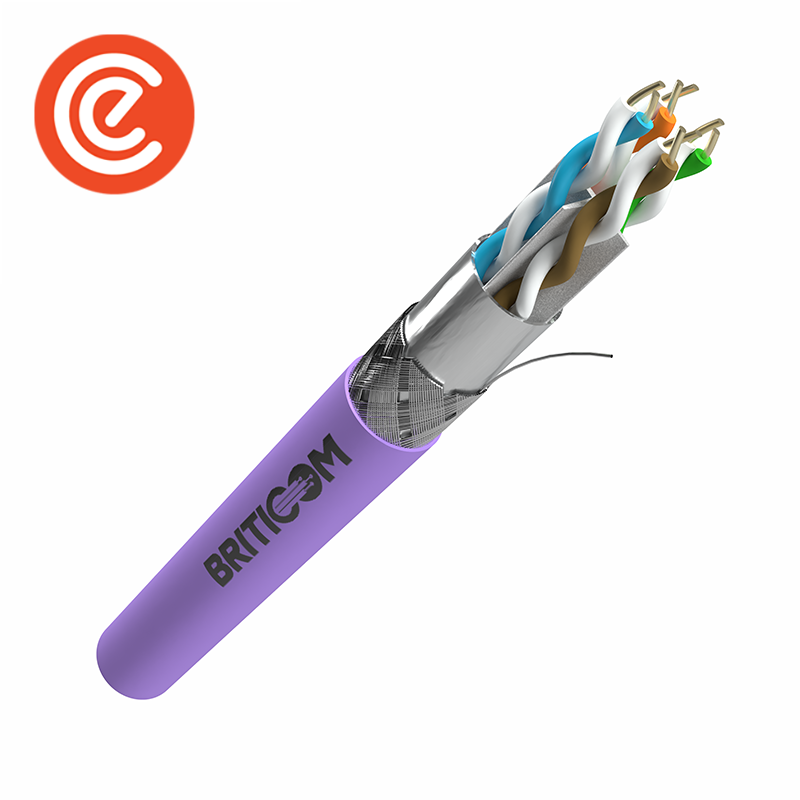

Briticom® Cat6 SFUTP Solid LAN cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568.0-D Standard of 2017 and T568.2-D Standard. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified. This product comes with a 25 year warranty and is available in different lengths and packaging types.
Already bought this product from us? Share your experience on LinkedIn
- ANSI/TIA-568.0-D Standard of 2017
- T568.2-D Standard
- 25 Year warranty
- Foiled and shielded/Unshielded twisted pair
- PE jacket
- Available in different lengths and packaging types
- LAN Applications
- CCTV
| American Wire Gauge (AWG) | 23 | |

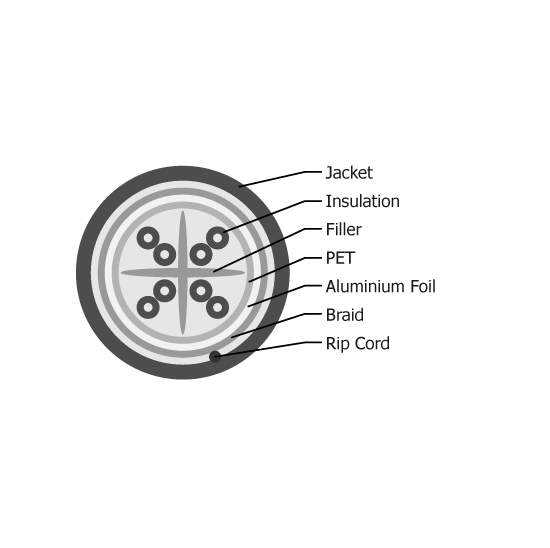

| Material | Conductor material – Solid bare copper
Conductor insulation – HDPE Inner shield material – Aluminium foil Outer shielding material – Braided shield, TC Cable jacket – PE |
|
| Insulated conductor diameter | 1.09 ± 0.03 mm | |
| Outer cable diameter | 7.8 ± 0.5 mm | |
| Jacket thickness | 0.65mm ± 0.05 mm | |
| Pulling strength | 110N | |
| Minimum bend-radius | 4 times the outer diameter | |
| Nominal velocity of propagation | 69% | |
| Insulation resistance – MΩ/km | Min. 5000 | |
| Propagation delay skew | Max 45 ns/100m | |
| Impedance 1-250 MHz | 100 ± 15Ω | |
| DC resistance max | 9.38 Ohm/100m | |
Cat6 SFUTP Solid LAN cable
