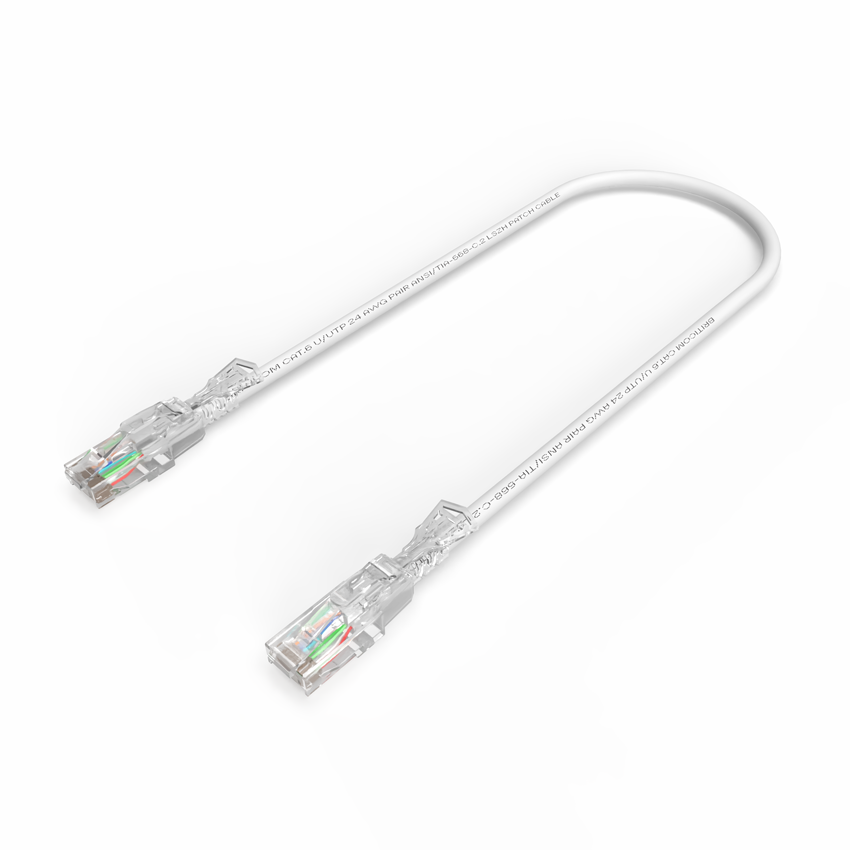

CAT 6 UUTP Lockable Patch Cord Channel Level Testing

Briticom® CAT 6A Unshielded Lockable Patch Cord Channel Level Testing Platinum are designed and manufactured to meet and exceed the ISO,CENELEC and TIA standards.
• Provides security on sensitive circuits.
• Prevents theft, downtime and unwanted disconnection
• Disconnection can only be achieved by using the key which is supplied separately to the Patch Leads.

Example PN UUTPC6ABLU3LSL-LP Categories: ,

Briticom® Cat6 UUTP Lockable Channel Patch Cord are designed and manufactured to meet and exceed the ISO,CENELEC and TIA standards.

Already bought this product from us? Share your experience on LinkedIn

  • All cables 100% testing, any open, miswiring, short & intermittent are not permitted
  • After crimping the distance between the bottom of contact surface and the top surfaceof plug are 5.90 ~ 6.146mm
  • The patch cable must be tested with Component test of fluke DSX-8000 ISO PatchCord Test
  • RoHS compliant PVC or PE or LSZH Jacket
  • Installation Temperature -20°C – +75°C
  • Minimum Bend Radius 8D
  • Data centre & Telecommunication networks
  • LAN Applications
  • CATV – Cable television, CCTV

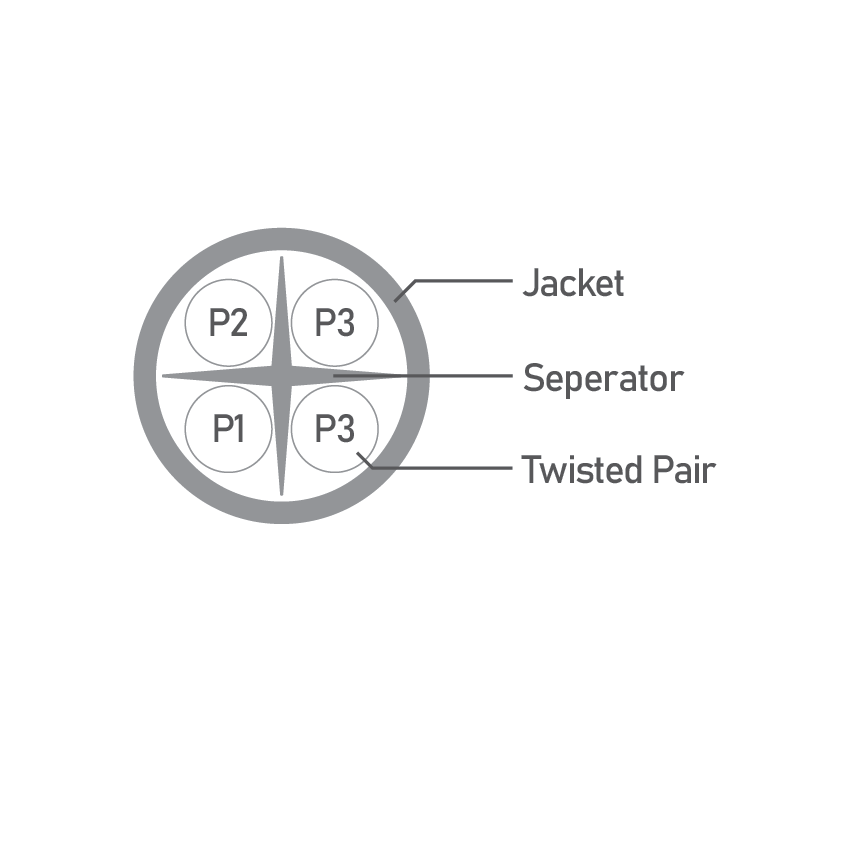

Cat6 UUTP Lockable Channel Patch Cord

Conductor CAT 6 UTP 26 AWG *4P Stranded Cable Jacket
Insulations FO-PE (Foamed Polyethylene)
RJ45 connector 50μ nominal gold flash over 60μ nickel undercoat contact pins
Wiring standard EIA/TIA 586B
Contact resistance 30 mΩ maximum
Dielectric strength 2500 VDC for 3 seconds
Uninsulated resistance 150 MΩ/km minimum
NVP 76%
Flame retardance, Smoke emission IEC 60332-1, IEC 61034
Typical applications IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51

DOWNLOAD DATASHEET
Construction

UUTP, FUTP, SFTP, FFTP, UFTP
Category

C5E, C6, C6A, C7, C7A, C8
Colour

BLK, GRY, WHT, ORN, PRL, GRN
Length (m)

3, 5, 10, 15, 20
Material

HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
Detail

F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
Standard

-E Extra Range, -P Platinium
Additional

OD Outdoor, Blank if indoor
