Briticom® Cat6 UFTP Solid LAN cable is designed and manufactured to meet and exceed the ISO, and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 250 MHz with over 2.5Gbps
- 25 Year Warranty
- Double Foiled
- LSZH, PVC, PE jackets
- Available in different colours, reel lengths and reeling techniques
- Data centre & Telecommunication networks
- LAN Applications

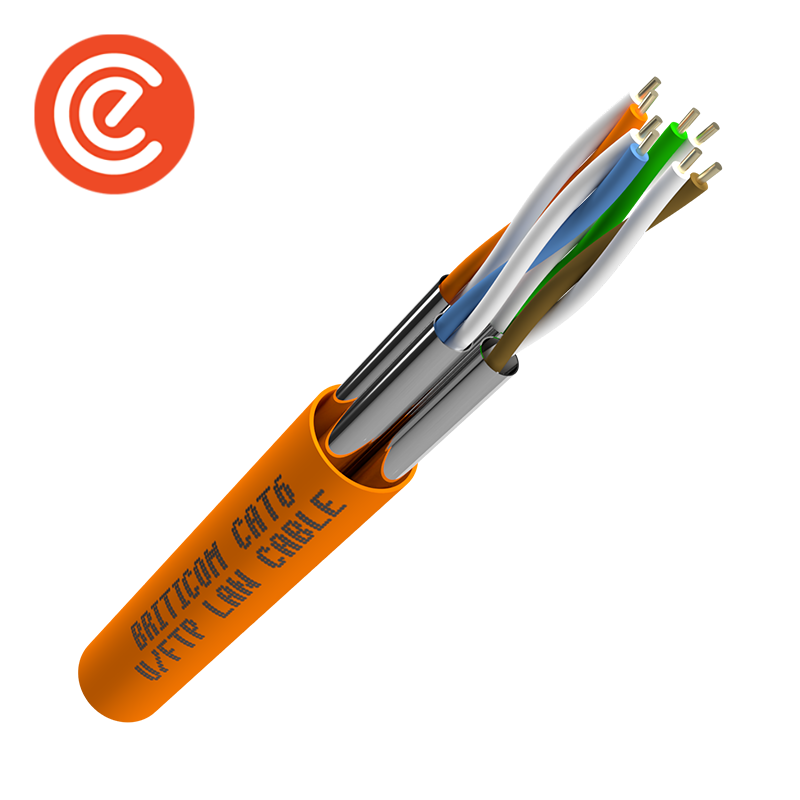

Cat6 UFTP Solid LAN Cable
| Bending radius | with load
without load |
4 x D
8 x D |
|
Temperature range |
during operation
during installation |
-20°C to + 60°C
0°C to + 50°C |
| Loop resistance | 154 Ω/km | |
| Resistance unbalance | ≤ 2% | |
| Insulation resistance | (500 V) | ≥ 2000 MΩ *km |
| Mutual capacitance | at 800 Hz | Nom. 43 nF/km |
| Capacitance unbalance | (pair/ground) | ≤ 1500 pF/km |
| Mean characteristic impedance | 100 MHz | 100 ± 5 |
| Nominal velocity of propagation | Ca. 79 % | |
| Propagation delay | ≤ 427 ns/100m | |
| Delay skew | ≤ 12 ns/100m | |
| Test voltage | (DC, 1 min) core/ core and core/screen | 1000 V |
| Transfer impedance | at 1MHz
at 10 MHz at 30 MHz |
≤ 50 mΩ /m
≤ 100 mΩ /m ≤ 200 mΩ /m |
| Coupling attenuation | 55 dB |
