Briticom® Cat6 UUTP Solid LAN Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568.0-D Standard of 2017 and T568.2-D Standard. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- ANSI/TIA-568.0-D, ANSI/TIA/EIA-568-B.2.10, IEC 60228 and IEC 60332, T568.2-D Standards
- 250 MHz with over 2.5Gbps
- 25 Years Warranty
- Unshielded Twisted Pair
- LSZH, PVC, PE jackets
- Available in different lengths and packaging types
- Call centres & Data networks
- LAN Applications
- CCTV

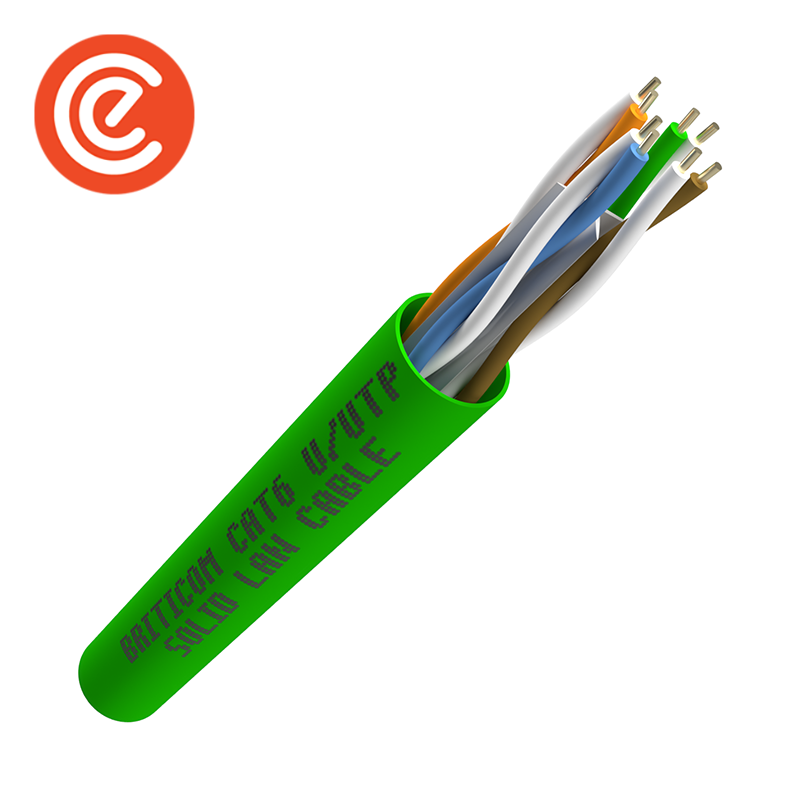

Cat6 UUTP Solid LAN Cable
| American Wire Gauge (AWG) | 23 | |
| After Tensile Strength (Mpa) | ≥85% of unaged | |
| Minimum Point Thickness (mm) | 0.20~0.21 | |
| Cable Laying Length (±mm) | 142 | |
| Jacket | PVC, PE or LSZH | |
| Outer Diameter (±0.2mm) | 6.20 | |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 | |
| 1.0-250.0MHz Impedance (ohms) | 100+-15 | |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 | |
| Max. Conductor DC Resistance 20oC (ohms/km) | 73.2 | |
| Test Material | PVC | |
| Before Tensile Strength (Mpa) | ≥13.9 | |
| Aging Elongation (%) | ≥100 | |
| Aging Condition (oC x hrs) | 100 x 240 | |
