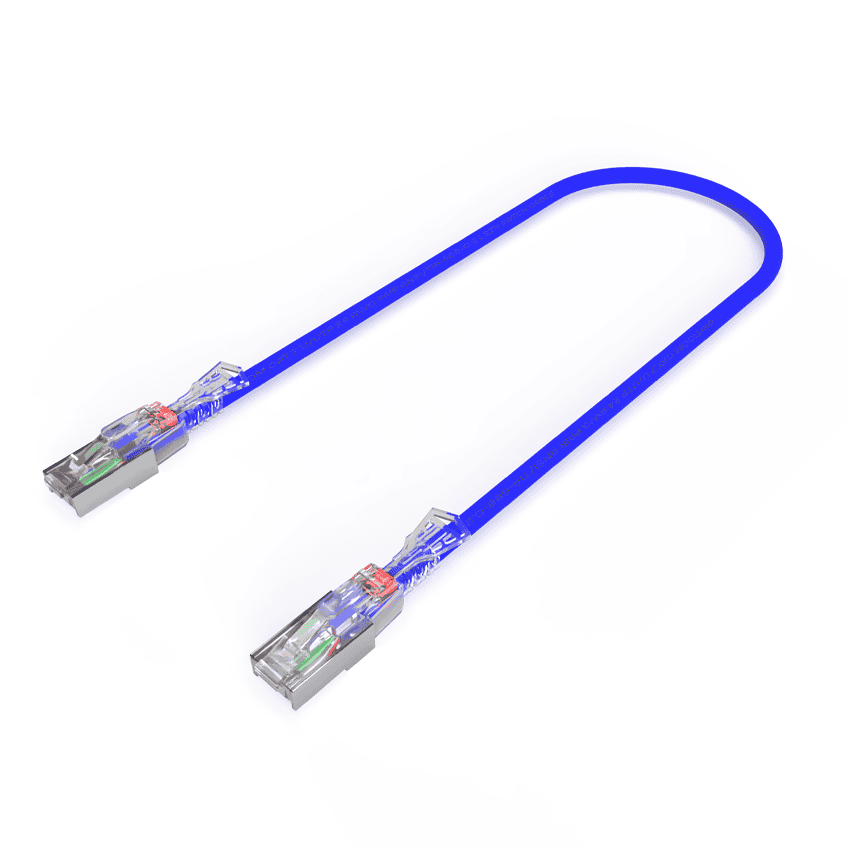

CAT 6 SFTP Lockable & LED Self-Tracing Patch Cord Channel Level Testing

Briticom® CAT 6A Shielded and Foiled Lockable and LED Patch Cord Channel Level Testing Platinum are designed and manufactured to meet and exceed the ISO,CENELEC and TIA standards.
• Provides security on sensitive circuits.
• Prevents theft, downtime and unwanted disconnection
• Disconnection can only be achieved by using the key which is supplied separately to the Patch Leads.
• Traceable Patch Cords are equipped with a self-trace LED device located at the bottom of the plugs
• No need for a battery to operate (Works by plugging the patch cord into tester)
• Same size as a standard plug
• Smarter cable management system, saving time and money.

Example PN SFTPC6AWHT3LSL-P Categories: ,

Briticom® Cat6a SFTP Lockable LED Channel Patch Cord are designed and manufactured to meet and exceed the ISO,CENELEC and TIA standards.

Already bought this product from us? Share your experience on LinkedIn

  • All cables 100% testing, any open, miswiring, short & intermittent are not permitted
  • After crimping the distance between the bottom of contact surface and the top
    surface of plug are 5.90 ~ 6.146mm
  • The patch cable must be tested with Component test of fluke DSX-8000 ISO Patch
    Cord Test
  • RoHS compliant PVC or PE or LSZH Jacket
  • Installation Temperature -20°C – +75°C
  • Minimum Bend Radius 8D
  • Data centre & Telecommunication networks
  • LAN Applications
  • CATV – Cable television, CCTV

Cat6a SFTP Lockable LED Channel Patch Cord

Conductor CAT 6 S/FTP 27AWG *4P Stranded Cable Jacket
Insulations FO-PE (Foamed Polyethylene)
Overall diameter 5.7 mm ± 0.30 mm
Bending radius 15x OD
RJ45 connector 50μ nominal gold flash over 60μ nickel undercoat contact pins
Wiring standard EIA/TIA 586B
Contact resistance 30 mΩ maximum
Dielectric strength 2500 VDC for 3 seconds
Uninsulated resistance 150 MΩ/km minimum
NVP 76%
Flame retardance, Smoke emission IEC 60332-1, IEC 61034
Typical applications IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
Norms ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009; ANSI/TIA-568.0-D:2017; EN 60603-7-51

DOWNLOAD DATASHEET
Construction

UUTP, FUTP, SFTP, FFTP, UFTP
Category

C5E, C6, C6A, C7, C7A, C8
Colour

BLK, GRY, WHT, ORN, PRL, GRN
Length (m)

3, 5, 10, 15, 20
Material

HD (High-Density Polyethylene), PV (PVC), LS (LSZH), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), PE (Polyethylene)
Detail

F Flat, A Angled Boot, L Locked, D Light, M Micro size, R Rodent-Resistant, S Self-Tracing, T Tangle-Free, U Ultra-Flat, Blank if no extra detail
Standard

-E Extra Range, -P Platinium
Additional

OD Outdoor, Blank if indoor
