Briticom® Cat6a UUTP Patch Cord are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568-C.2:2009 and ANSI/TIA-568.0-D:2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 500 MHz with over 10Gbps
- ANSI/TIA-568-C.2:2009
- ANSI/TIA-568.0-D:2017
- 25-year warranty
- Unshielded
- LSZH, PVC or PE jacket
- Available in different colours & lengths
- Durable for 750 insertion cycles

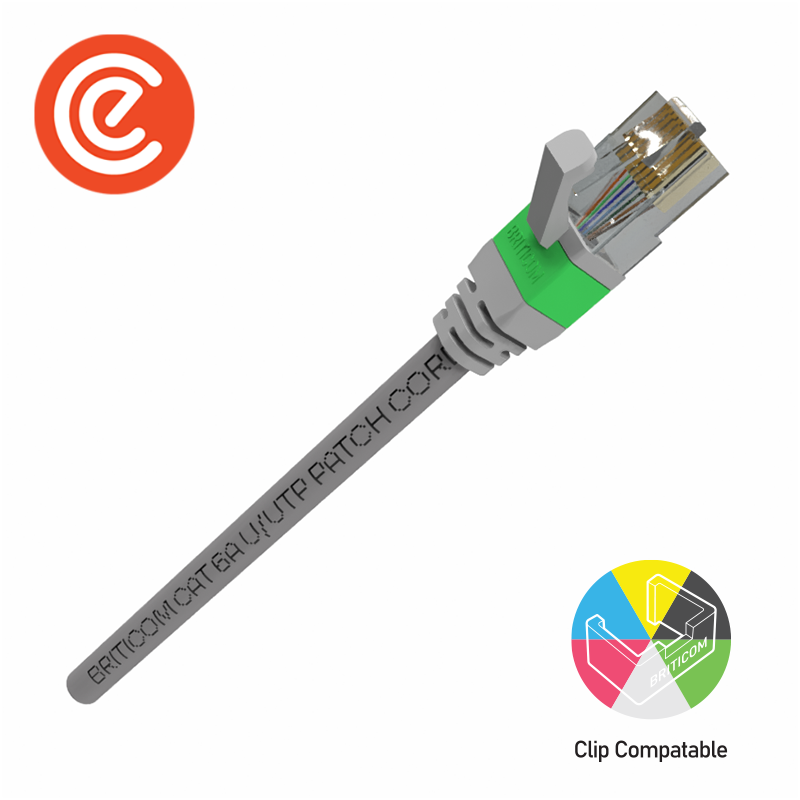

Cat6a UUTP Patch Cord
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Cable television, CCTV

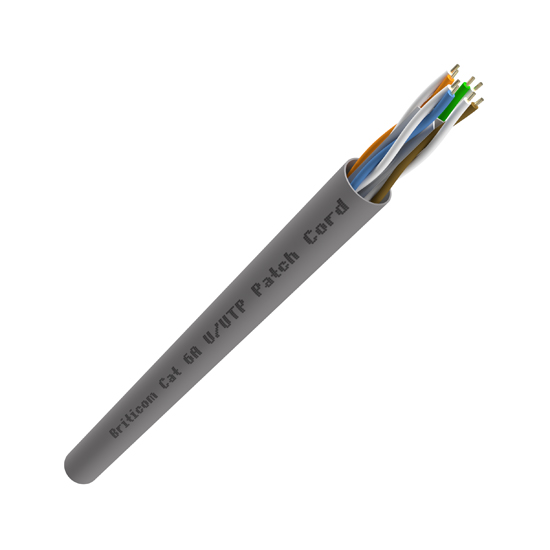

| Conductor | Stranded AWG 27/7 bare copper, 0.127 ± 0.005 mm |
| Insulations | FO-PE (Foamed Polyethylene) |
| Overall diameter | 5.7 mm ± 0.30 mm |
| Bending radius | 15x OD |
| RJ45 connector | 3 μ nominal gold flash over 60 μ nickel undercoat contact pins |
| Wiring standard | EIA/TIA 586B |
| Contact resistance | 30 mΩ maximum |
| Dielectric strength | 2500 VDC for 3 seconds |
| Uninsulated resistance | 150 MΩ/km minimum |
| NVP | 76% |
| Flame retardance, Smoke emission | IEC 60332-1, IEC 61034 |
| Typical applications | IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T |
| Norms | ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51 |
