Briticom® Category 6a Outdoor Unscreened SFTP PE Solid LAN Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568.0-D Standard of 2017and T568.2-D Standard.
This delivers Class FA link and channel performanc supporting all applications detailed and proposed within the standards. This superior performance cable is ETLcomponent verified
Already bought this product from us? Share your experience on LinkedIn
- ANSI/TIA-568.0-D, ANSI/TIA/EIA-568-B.2.10, IEC 60228 and IEC 60332, T568.2-D Standards
- 25-Year warranty
- 500 MHz with over 10Gbps
- Unshielded Twisted Pair
- Available in different lengths and packaging types
- 10BASE-T (IEEE 802.3)
- 4/16 Mbps TOKEN RING (IEEE 802.5)
- 100BASE-VG-AnyLAN
- 100Mbps TP-PMD (ANSI X3T9.5)
- 100BASE-T (IEEE 802.3)
- 55/155 Mbps ATM
- 1000BASE-T (Gigabit Ethernet)

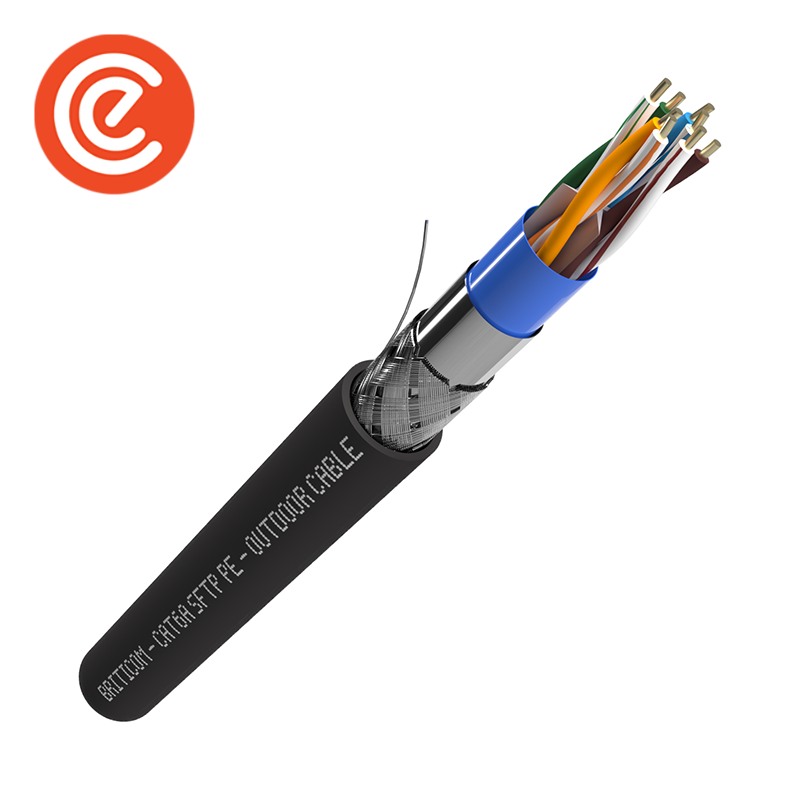

Cat 6a – Outdoor SFTP PE Solid LAN Cable
|
Conductor Material
|
solid bare copper |
| Conductor Diameter | 0.57±0.01mm /23AWG |
| Insulation Material | HDPE |
| Insulation Diameter | 1.15±0.05mm |
| Polyester tape | Overlap rate ≥25% |
| Al foil | Overlap rate ≥25% |
| Braiding | 17*4.5*0.10mm AL-Mg alloy |
| Rip cord | Nylon |
| Cross skeleton | PE |
| Jacket Material | LDPE |
| Jacket Diameter | 7.8±0.3mm |
| Jacket Thickness | 0.55mm (Average) |
