Briticom® Cat6a UUTP Shielded Rodent-Guardt Patch Cord is designed to use in harsh environment where rats and other rodents may potentially damage the cables. It also has anti-crush and electrical interference resistance for outdoor use. Designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
Already bought this product from us? Share your experience on LinkedIn
- U/UTP 24 AWG stranded cable
- Waterproof
- UV resistant
- Available in 0.3-50m length (7.8mm OD)
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Steel armoured, PE inner
- Fluke DSX 8000 Channel Tested
- Available in regular or slim
- Natural stainless steel colour
- Data centres
- Smart home
- Outdoors
- Harsh environments

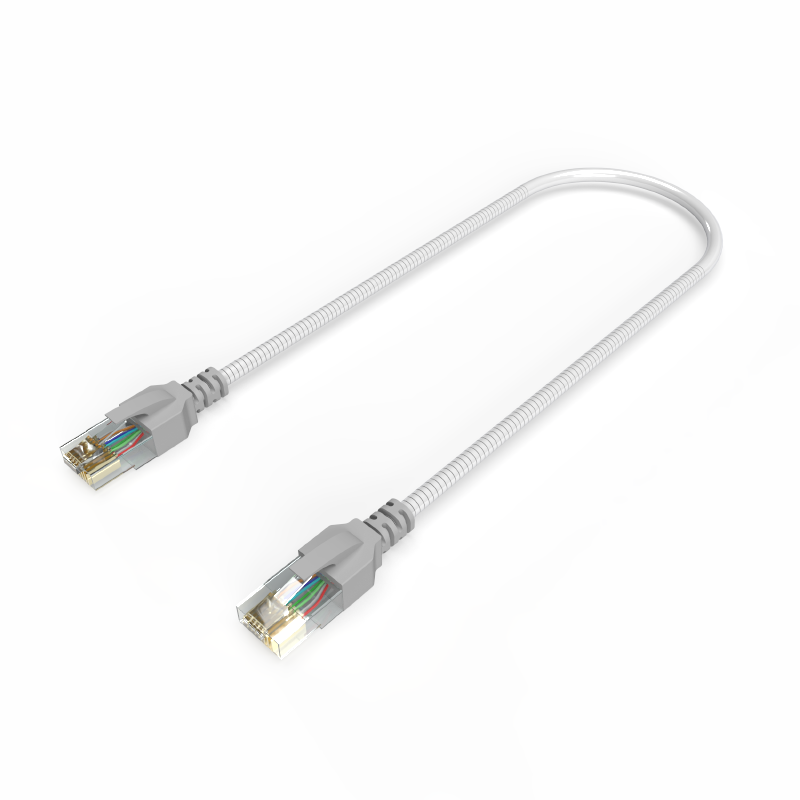

Cat6a UUTP Shielded Rodent-Guard Patch Cord
| Outside Diameter | 7.8mm regular / 4.9mm slim |
| Usage | Indoor and outdoor use |
| Bandwidth | 500MHz |
| Sheath | Steel armoured+inner PE |
| PC Rating | 94-V2; 94-V0 |
| Construction | UTP |
| AWG | 28 AWG regular / 28 AWG slim |
| Conductor | Stranded Copper |
| Frequency | 10Gbps |
| Plug | RJ45 Plug |
| Certification | UL, Reach, CE, ISO9001, RoHS |
| Length | 0.3m-50m regular / 0.3m-20m slim |
| Test Limit | Fluke DSX-8000 Channel Test @ 500Mhz |
| Boot Type | Moulded Boot |
| Contacts | Brass, 3 prongs, 50u gold plating |
