Briticom® category 6A U/UTP slim patch cords are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.

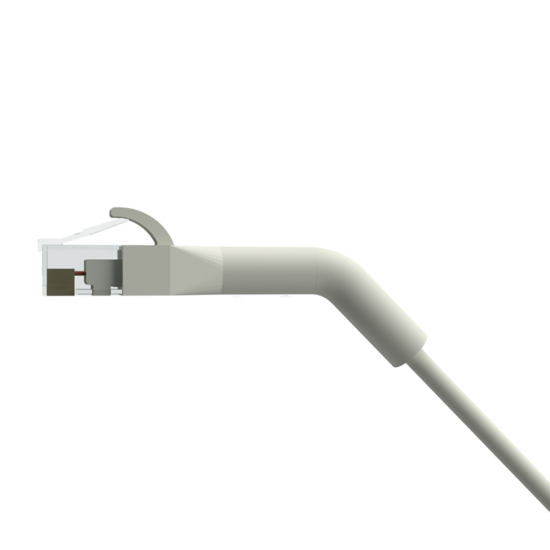

This new design is space saving and much narrower than traditional cords this makes it easier to insert and remove especially in full patch panels. The new boot design is also bendable which makes it versitile and more durable in practice.
This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- Slimline design
- Bendabe
- Space saving construction
- 25-year warranty
- Available in different colours & lengths
- Durable for 750 insertion cycles
- Data centres
- Telecommunication networks
- LAN applications
- CATV – Cable television
- CCTV

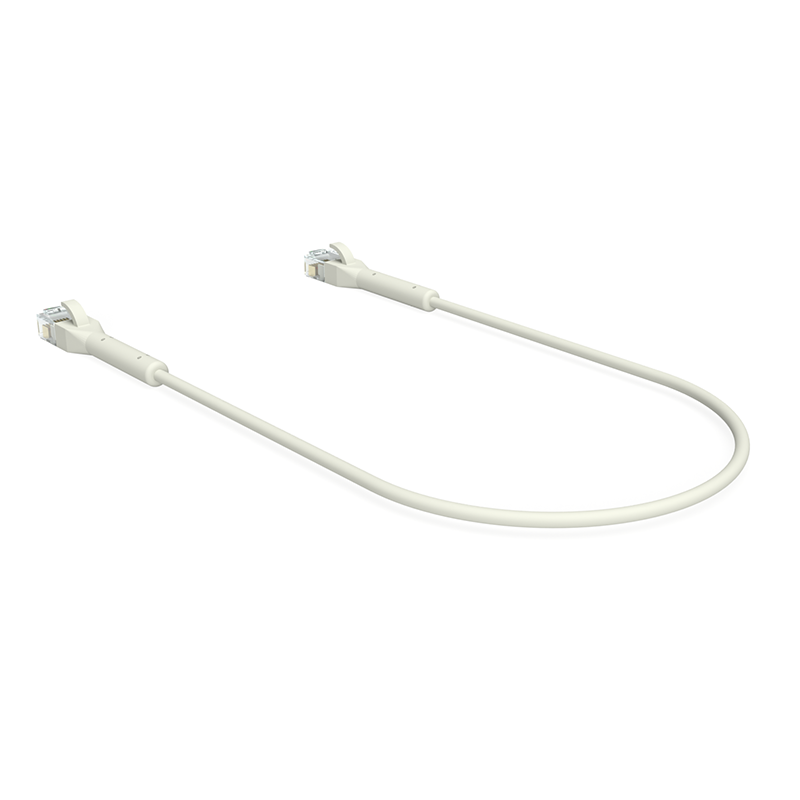

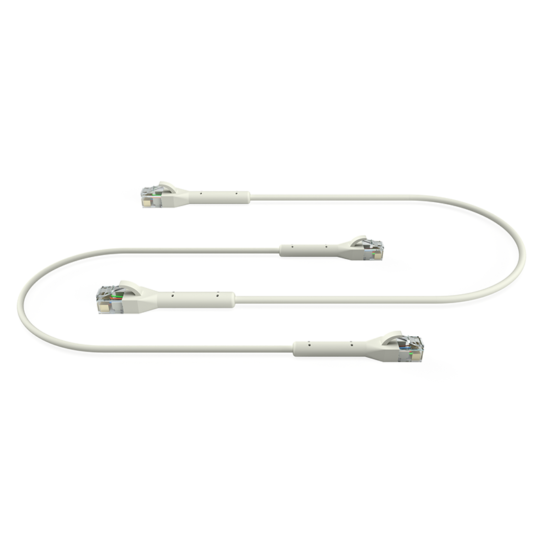

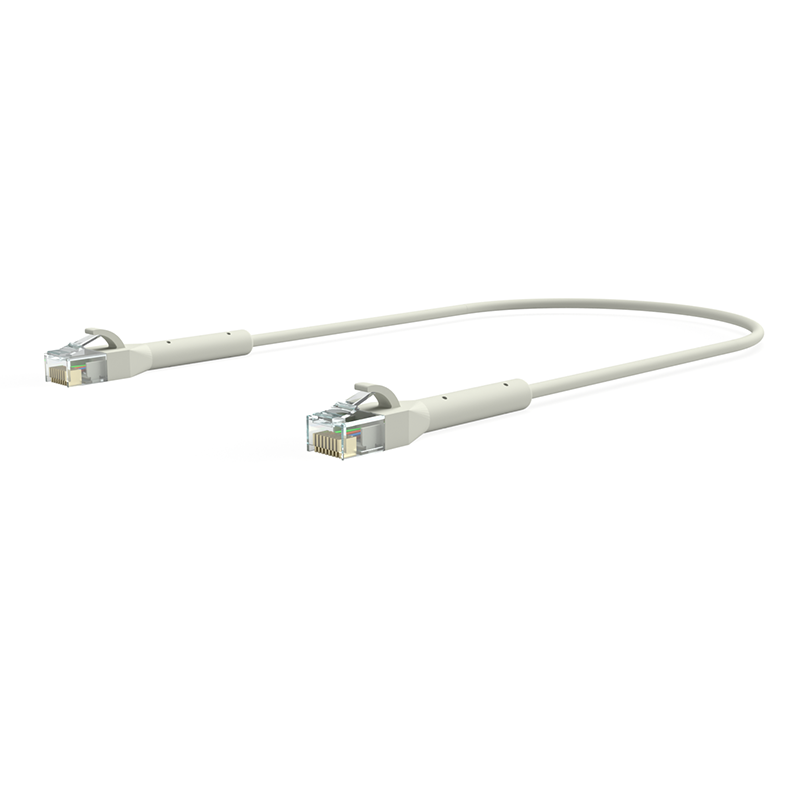

CAT 6A UTP Slim Patch Cord, LSZH
| Category | 6A |
| Conductor | Stranded 7*0.12 or 7*0.10 mm |
| Insulation | HDPE |
| Outer sheath | LSZH |
| Meter marking | According to requirement |
| Overall diameter | 3.8 mm ± 0.30 mm |
| Bending radius | 4 xOD |
| Color code | Orange x White, Green x White, Blue x White, Brown x White |
| Wiring standard | EIA/TIA 568B |
