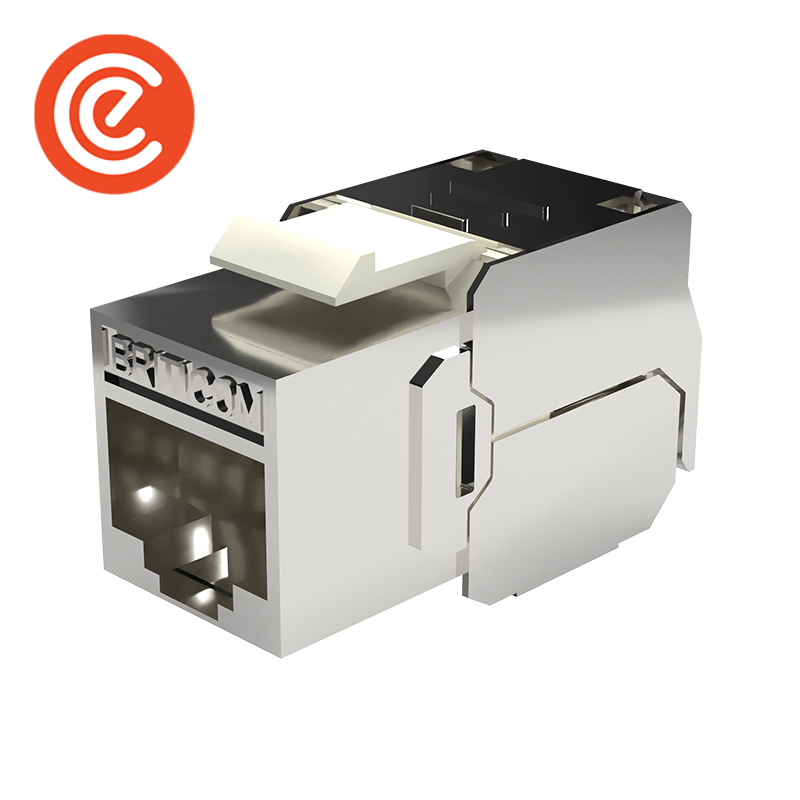

Briticom® Cat7 Keystone Jack STP are available in a choice of 90°, 180° shuttered and non-shuttered. Designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- 360° screening
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Tool-Free
- 180 degree fit for loading a full STP/UTP 24/48 port patch panel
- Contact mating area – gold plating option (3U”,6U”,15U”,30U”,50U”) over Nickel
- Dual IDC Type termination
- RoHS compliant
Cat7 Keystone Jack STP
| Voltage Rating | 125 VAC RMS |
| Current Rating | 1.5AMP |
| Contact Resistance | 110 Milliohms MAX. |
| Insulation Resistance | 1 000 megohms MIN 500 VDC |
| Dielectric Strength | 750 VAC RMS 60Hz ,1 MIN |
| Wire | AWG 24-26 |
| RJ45 Jack Life | 750 times MIN. |
| IDC Life | 200 times MIN. |
| Contact Material | Phosphor Bronze stamping pin at a thickness of 0.35mm
PC-UL90V-0 |
| IDC Material | Phosphor Bronze at a thickness of 0.5mm and Nickel plating |
| Housing Material | ABS or PC, PBT – UL90V-0 |
| Conformance | RoHS compliant. ANSI / TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017 |
