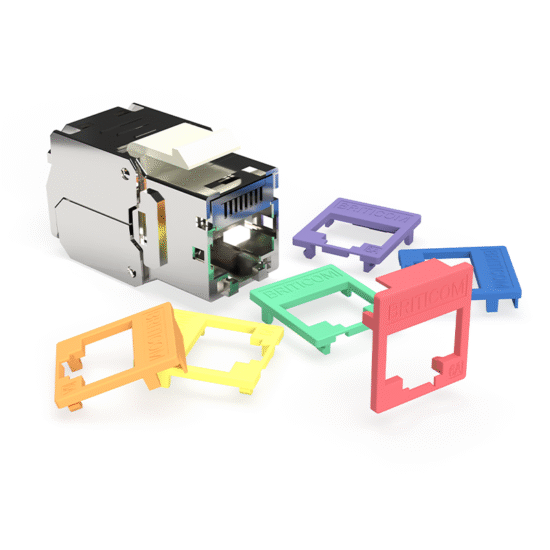

Briticom® category 7 screened STP keystone jack modules are available with a changable cloured clip. All are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Already bought this product from us? Share your experience on LinkedIn
- High-temperature thermoplastic housing
- 360° screening
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Compact design, 8 positions and 8 conductors
- Low attenuation loss, high return loss
- Accepts 22-26 AWG solid wires with an insulation diameter of 0.4-0.6mm
Cat6a STP Tool-Free KSJ
- POTS. T1&Tq fractional
- 52/155 Mbps ATM (ATM Forum)
- ASDN basic and primary rate
- 100 BASE-T4 (Fast Ethernet)
- 10 Gbps Ethernet
- 1 Gbps Ethernet (IEEE802.3)
- 100 Mbps TP-PMD
- 100 BASE-T (Fast Ethernet)
- 10 BASE-T (IEEE802.12)
- 100 VG-Any LAN (IEEE802.12)
| Insertion Life | 750 cycles minimum |
| IDC Life | 200 times (22-26 AWG solid wire) minimum |
| Contact Material | Phosphor Bronze, Gold Plating (0.5mm) |
| IDC Material | Phosphor Bronze stamp pin (0.35mm) |
| Housing Material | PC UL94V-0 |
| Conformance | ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017, ISO/IEC 11801:2002, RoHS |
