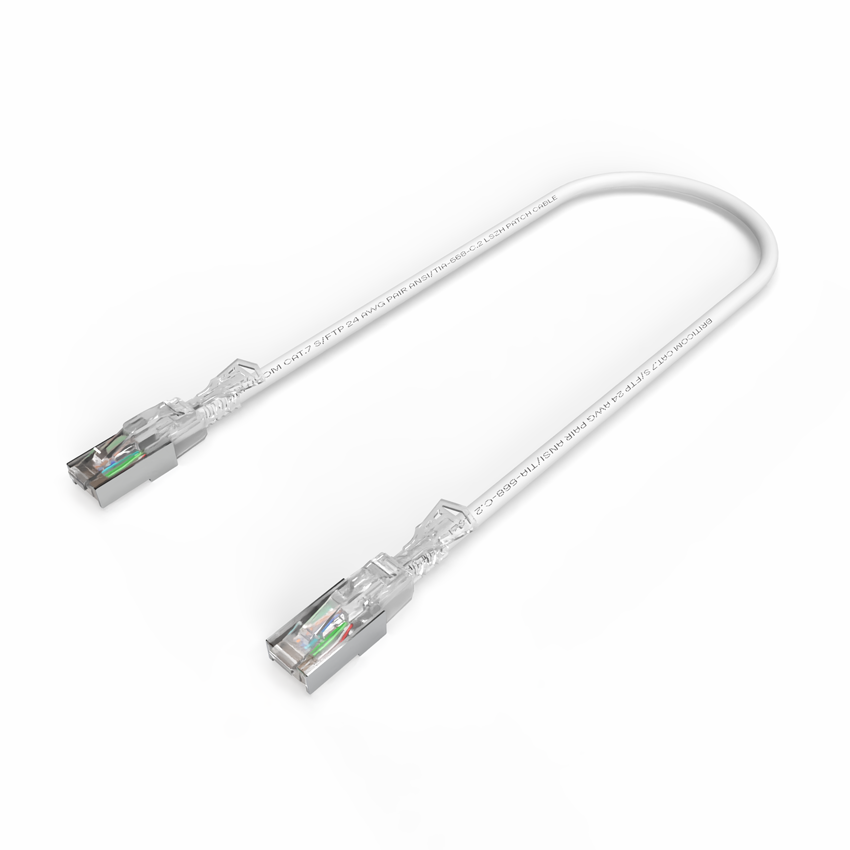

Briticom® Cat7 SFTP Lockable Channel Patch Cord are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards.
Already bought this product from us? Share your experience on LinkedIn
- All cables 100% testing, any open, miswiring, short & intermittent are not permitted
- After crimping the distance between the bottom of contact surface and the top
surface of plug are 5.90 ~ 6.146mm - The patch cable must be tested with Component test of fluke DSX-8000 ISO Patch
Cord Test - RoHS compliant PVC or PE or LSZH Jacket
- Installation Temperature -20°C – +75°C
- Minimum Bend Radius 8D
Cat6a SFTP Lockable Channel Patch Cord
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Cable television, CCTV

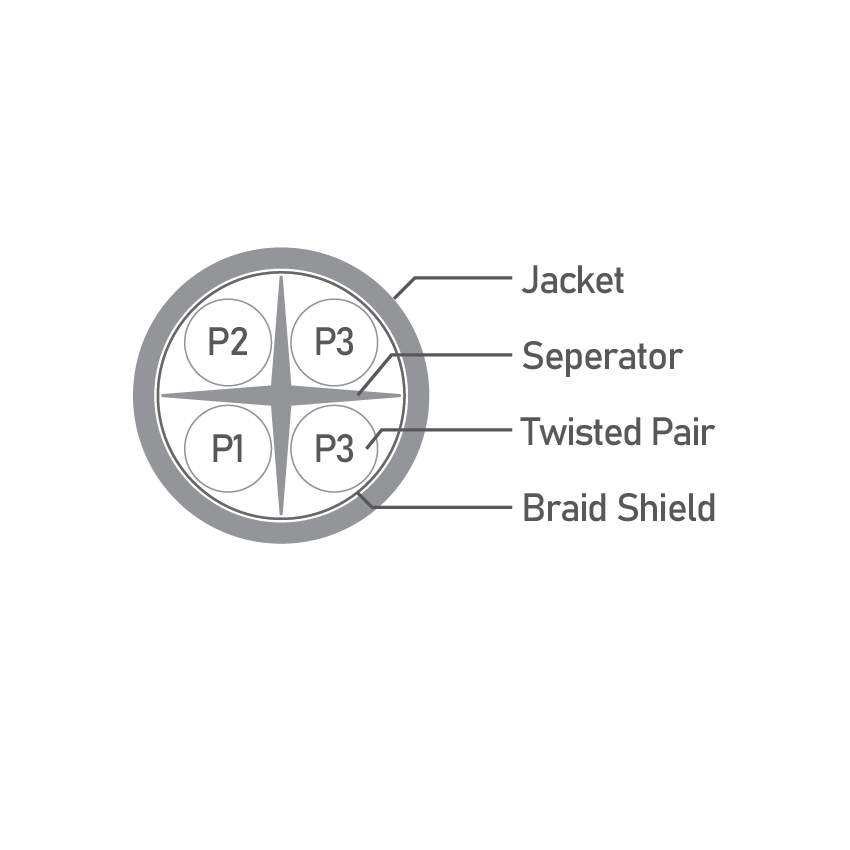

| Conductor | CAT 6A S/FTP 26AWG(7/0.16)*4P Stranded Cable Jacket, OD: 6.2±0.2mm Braid: Aluminium |
| Insulations | FO-PE (Foamed Polyethylene) |
| Overall diameter | 5.7 mm ± 0.30 mm |
| Bending radius | 15x OD |
| RJ45 connector | 50μ nominal gold flash over 60μ nickel undercoat contact pins |
| Wiring standard | EIA/TIA 586B |
| Contact resistance | 30 mΩ maximum |
| Dielectric strength | 2500 VDC for 3 seconds |
| Uninsulated resistance | 150 MΩ/km minimum |
| NVP | 76% |
| Flame retardance, Smoke emission | IEC 60332-1, IEC 61034 |
| Typical applications | IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T |
| Norms | ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009; ANSI/TIA-568.0-D:2017; EN 60603-7-51 |
