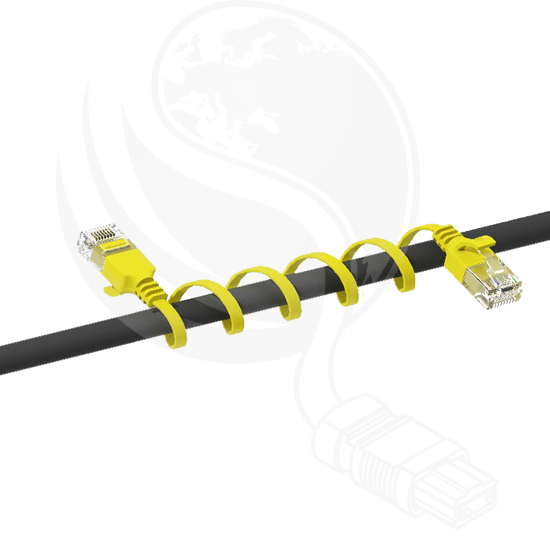

Briticom® Cat6a UUTP Ultra-Flat Patch Cord is 70% lighter than standard patch cables. The overall diameter is 1mm thick by 4mm wide, reducing the space required for cable installation and greatly increasing pathway capacity with greater flexibility. Designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.
Already bought this product from us? Share your experience on LinkedIn
- U/UTP 34 AWG stranded cable OD 1x4mm

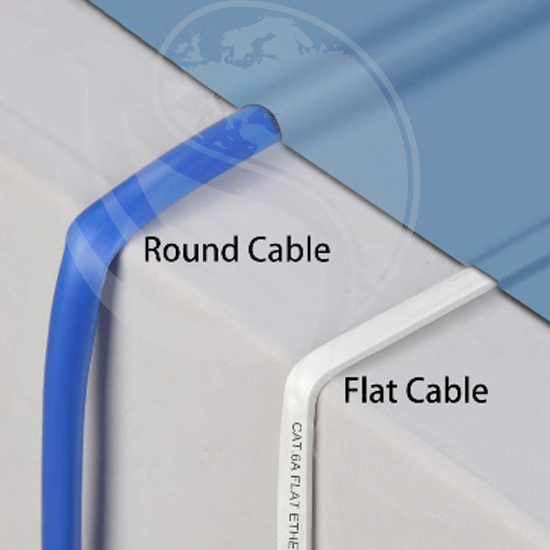

- 70% Lighter and 50% smaller
- Increased flexibility
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Available in 0.3m-20m lengths
- Data centres
- Smart home
- Office
Cat6a UUTP Ultra-Flat Patch Cord
| Bandwidth | 500MHz |
| Sheath | PVC |
| Outside Diameter | 1x4mm |
| Construction | U/UTP |
| AWG | 34 AWG |
| Conductor | Stranded Copper |
| Frequency | 10Gbps |
| Plug | RJ45 50U gold plated |
| Certification | UL, CE, SGS, ISO9001, RoHS, REACH |
| Length | 0.3m-20m |
| Wiring Scheme | T568B/T568A |
| Boot Type | Moulded short-body plug |
| Connector | RJ45 8P8C 3u~50u |
| PC Rated | 94-V2; 94-V0 |
| Colour | Grey, green, red, yellow, blue, black, white, pink, orange, purple |
