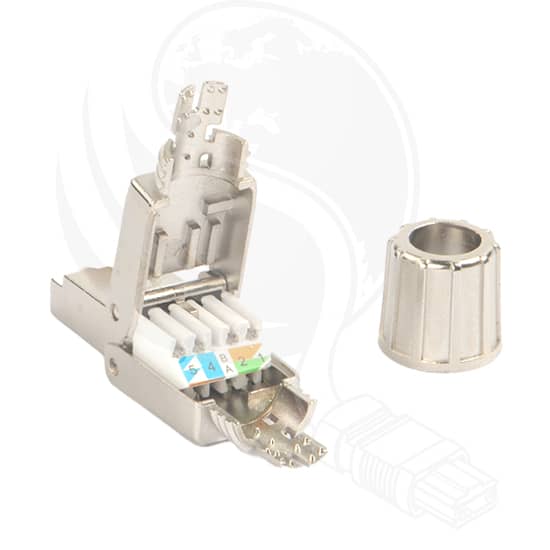

Briticom® Tool-Free STP Cat6 Plugs are male plugs used for Cat 6 and 6A patch leads. They are 8P8C 8 PIN RJ45 STP shielded terminals Cat 6 and 6A. RJ45-plug for field assembling. Suitable for all networks of voice up to 10 Gigabit Ethernet. Their tool-free cable installation according to EIA / TIA 568 A & B. These plugs are screw locked and offer 360° shield coverage, with the AWG range being 24 – 22. In addition to these Tool-Free STP Cat6A Plugs Briticom® also offers a wide range of other Cat 6 Plugs for every copper solution. You can also browse our Cat 6 Copper range that work in conjunction with these copper plugs.
Already bought this product from us? Share your experience on LinkedIn
- Gigabit Ethernet acc. to IEEE 802.3
- 10 Gigabit Ethernet acc. to IEEE 802.3an: Adequate for 10 Gigabit Ethernet
- RJ45 female, 8P8C
- Tool-free cable installation according to EIA/TIA 568 A & B
- Screw locked
- 360° shield coverage
- AWG-range: 24 … 22
| Category | CAT 6 and 6A |
| Connector Type | 8P8C RJ45 |
| Housing Material | Zinc die cast, nickel plated |
| Contact Material | Phosphor bronze |
| Coating of the Contacts | Nickel, gold plated 0.5μ |
| Shielding | STP Shielded |
| Colour | Silver |
Tool-Free STP Cat6 Plug
